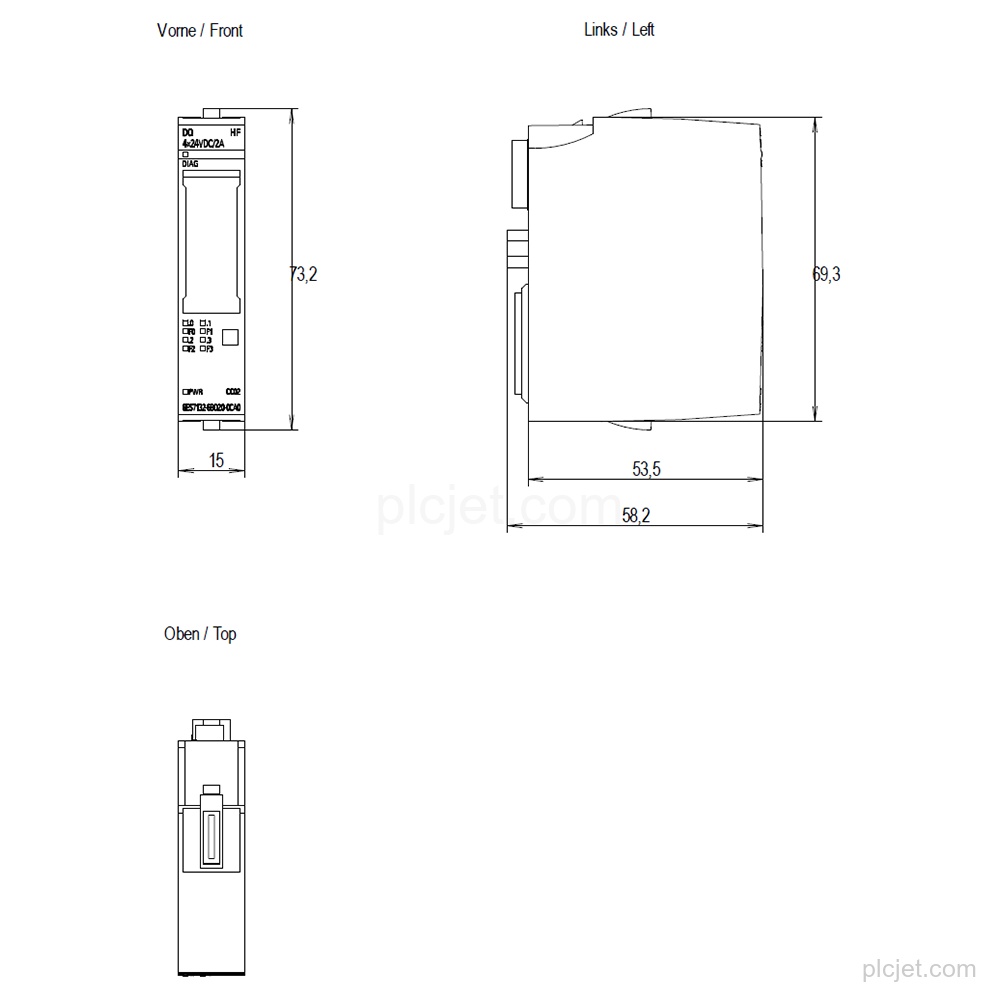

Product Overview
Technical Summary
| Product type | DQ 4x DC 24 V/2 A HF |
|---|---|
| Digital outputs | 4 |
| Output type | Source output (PNP, current-sourcing) |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Rated output current | 2 A per channel |
| Maximum module current | 8 A |
| BaseUnit | BU type A0 |
| Firmware version | V2.0.3 |
| Protection | Electronic short-circuit protection |
| PROFINET GSDML | V2.3 |
| Product lifecycle | Start of final year of support |
Key Features
4 parameterizable source outputs (PNP, current-sourcing) with 2 A rated output current per channel.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
Electronic short-circuit protection is provided; the module supports output type according to IEC 61131, type 2.
Channel diagnostics include wire break, short-circuit to ground, and short-circuit to L+; diagnostic, group error, and channel status indications are supported.

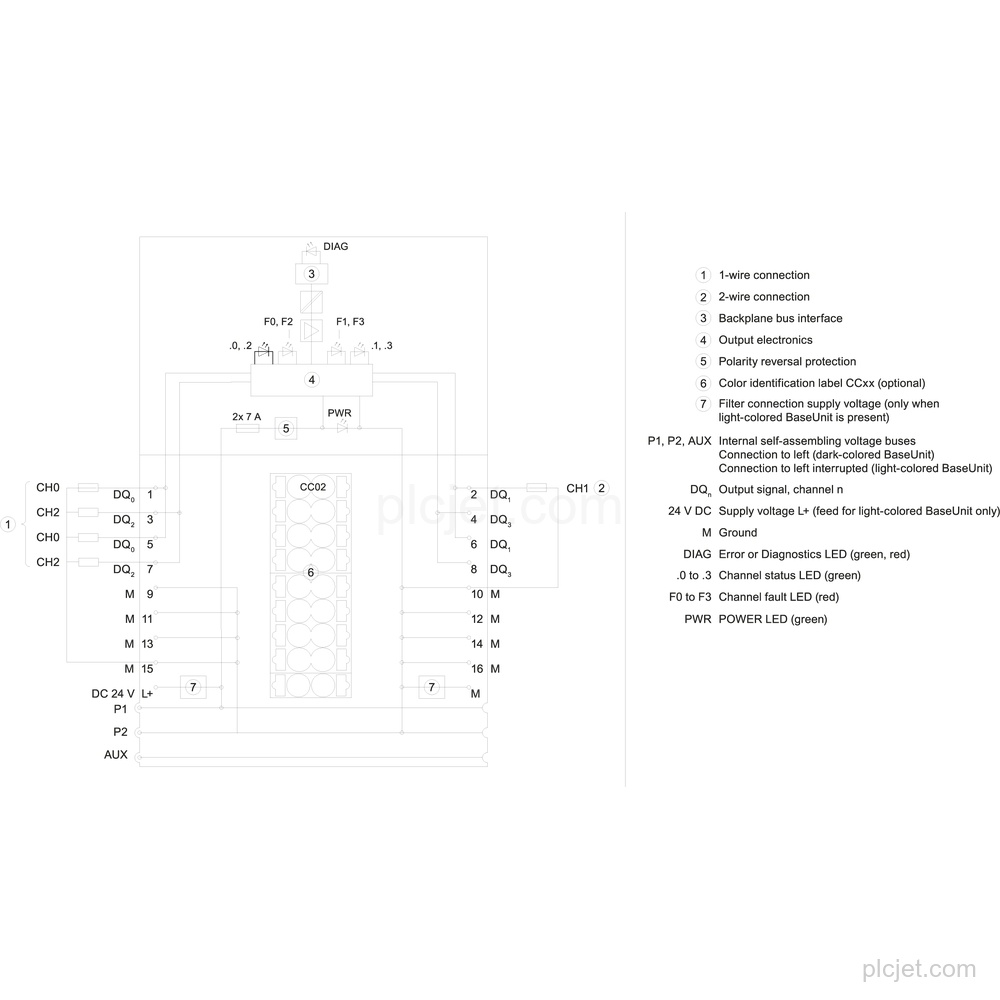

BU type A0 is usable for 1-wire and 2-wire connections; 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module, while 4-wire connection uses BU type A0 + Potential distributor module.
Firmware version is V2.0.3, firmware updates are possible, and STEP 7 TIA Portal configuration/integration is supported from V13 SP1 / -.
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is 6ES7132-6BD20-0CA0, a SIMATIC ET 200SP digital output module with product type DQ 4x DC 24 V/2 A HF.
How many outputs and what output current does it provide?
It has 4 source outputs, with a rated output current of 2 A per channel and a maximum current of 8 A per module.
Which BaseUnit is used for the connection variants?
BU type A0 is used for 1-wire and 2-wire connections. A 3-wire connection uses BU type A0 with AUX terminals or a Potential distributor module; a 4-wire connection uses BU type A0 + Potential distributor module.
What diagnostics are supported?
The module supports channel-by-channel wire-break, short-circuit-to-ground, and short-circuit-to-L+ diagnoses, plus diagnostic alarm, group error, supply-voltage monitoring, and channel status display.
Can this line item be included in a quotation request?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines when submitting a project or multi-line quotation request.
