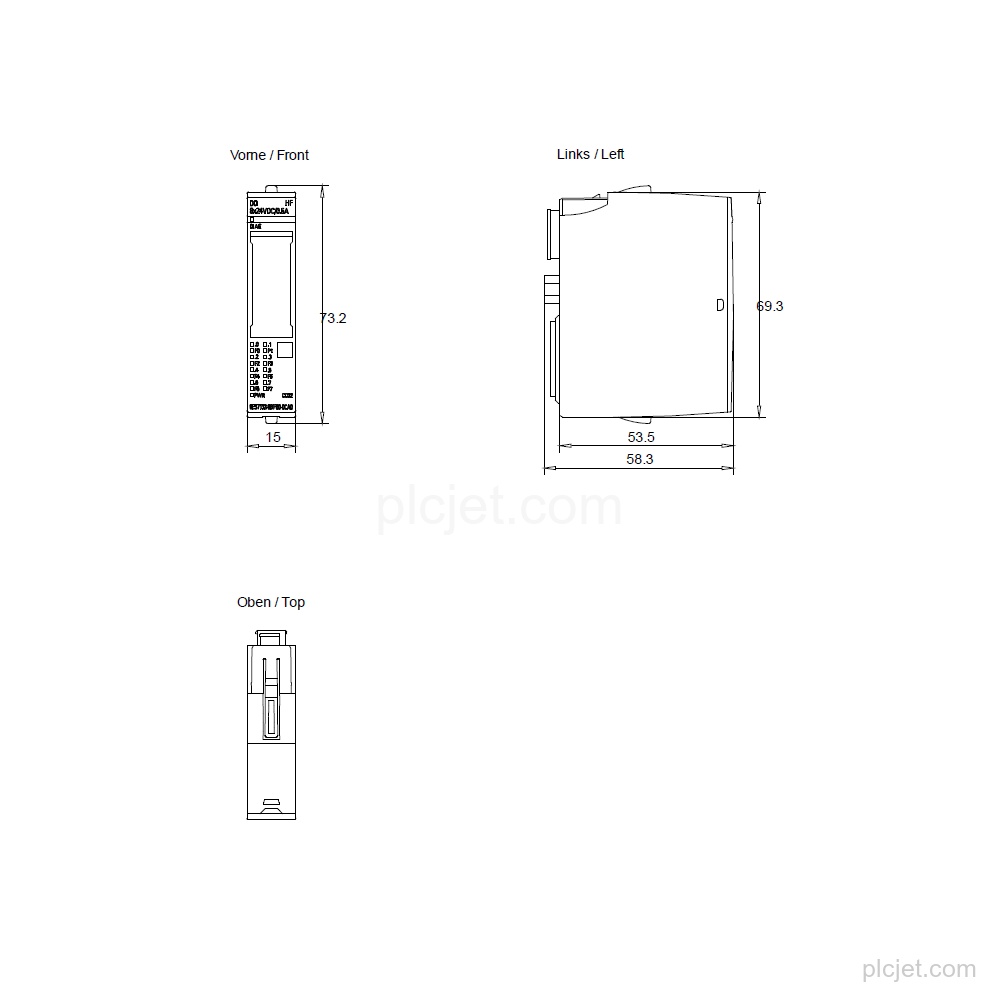

Product Overview
Technical Summary
| Product type | DQ 8×24 V DC/0.5 A HF |
|---|---|
| Digital outputs | 8; source output (PNP, current-sourcing); parameterizable |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Rated output current | 0.5 A per channel |
| Maximum output current | 4 A per module; 4 A with horizontal installation up to 60 °C and vertical installation up to 50 °C |
| BaseUnit | BU type A0 |
| PROFINET engineering | GSDML V2.3 |
| Firmware update | Yes |
| Packing unit | 1 unit |
Key Features
8 parameterizable source outputs (PNP, current-sourcing); current-sinking is not supported.
Rated output voltage: 24 V DC. Rated output current for signal "1": 0.5 A; maximum current per channel: 0.5 A.
Short-circuit protection, channel-by-channel wire-break and short-circuit diagnostics, supply-voltage monitoring, and group error indication.
Usable BaseUnit: BU type A0. Automatic encoding and a Type A mechanical coding element are provided.
Configurable with STEP 7 TIA Portal from V13 SP1 / -, STEP 7 from V5.5 / -, and PCS 7 from V8.1 SP1; PROFINET uses GSDML V2.3.
Product cancellation. Packing unit: 1 unit.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7132-6BF00-0CA0, a SIMATIC ET 200SP digital output module with 8×24 V DC/0.5 A HF.
What BaseUnit is usable with this module?

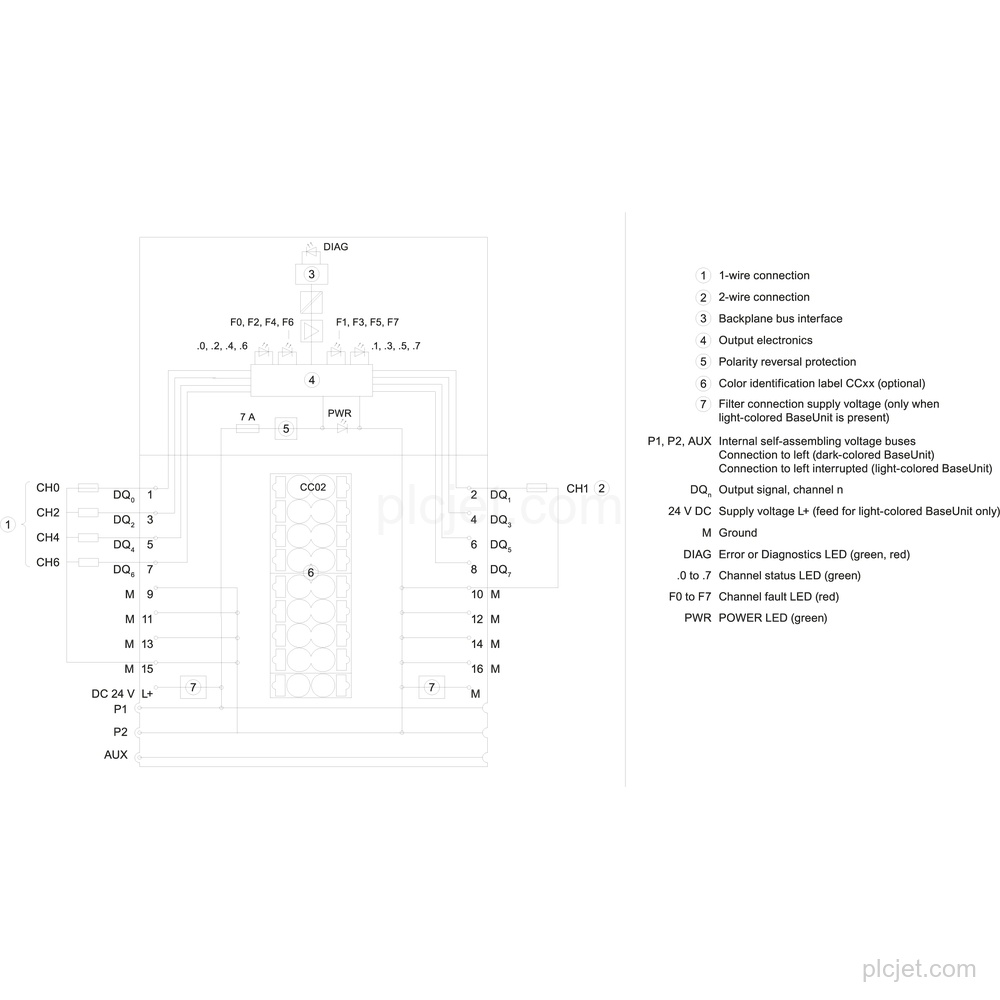

The usable BaseUnit is BU type A0. A 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection uses BU type A0 plus a potential distributor module.
What output current does the module provide?
The rated output current for signal "1" is 0.5 A, with a maximum of 0.5 A per channel and 4 A per module. The 4 A per-module value applies with horizontal installation up to 60 °C or vertical installation up to 50 °C.
Does the configuration include a potential distributor module?
It is without a separately identified potential distributor module; the source lists that module for the 3-wire and 4-wire connection variants.
What should be included in a project quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
