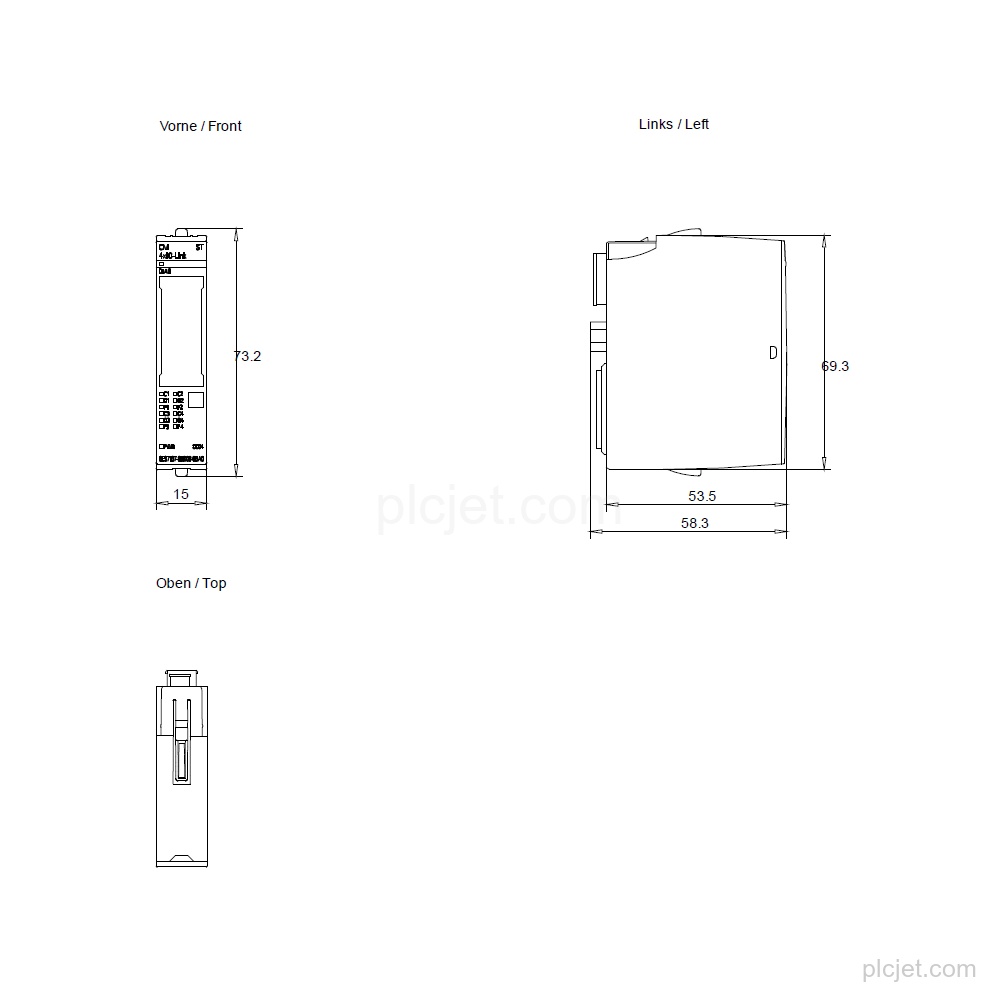

Product Overview
Technical Summary
| Product type | CM 4 x IO-Link ST |
|---|---|
| Firmware version | V2.2.2 |
| IO-Link ports | 4; all 4 simultaneously controllable |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V permissible range |
| IO-Link protocols | 1.0 and 1.1 |
| Transmission rates | 4.8 kBaud (COM1); 38.4 kBaud (COM2); 230.4 kBaud (COM3) |
| Process data | 32 byte max. input and output per port; 144 byte max. input per module; 128 byte max. output per module |
| Usable BaseUnits | BU type A0 |
| Product lifecycle | Active Product |
Key Features

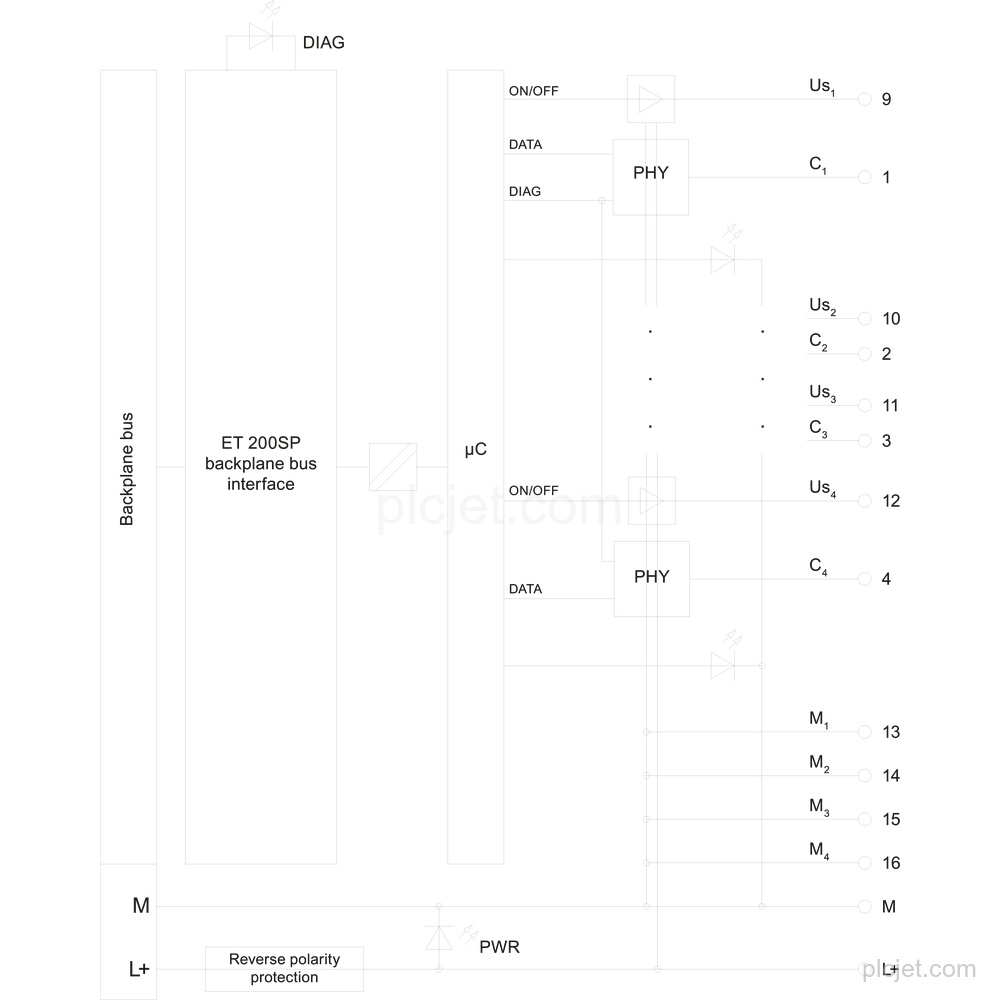

The module has 4 IO-Link ports, all 4 simultaneously controllable.
It supports IO-Link protocol 1.0 and IO-Link protocol 1.1.
Rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Transmission rates are 4.8 kBaud (COM1), 38.4 kBaud (COM2), and 230.4 kBaud (COM3).
Process data size is 32 byte max. input and output per port, 144 byte max. input per module, and 128 byte max. output per module.
The module is configurable with STEP 7 V15 or higher, STEP 7 V5.5 or higher, PROFIBUS GSD Revision 3 and 5 and higher, and PROFINET GSDML V2.3.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7137-6BD00-0BA0?
It is a SIMATIC ET 200SP CM 4xIO-Link ST communication module and IO-Link Master V1.1, product type designation CM 4 x IO-Link ST.
How many IO-Link ports can the module control simultaneously?
It has 4 IO-Link ports, and all 4 are simultaneously controllable.
What supply voltage does this line item use?
The rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
What cable length is supported?
The maximum unshielded cable length is 20 m; this also applies for shielded cables.
