Product Overview
Technical Summary
| DALI capacity | Up to 64 DALI control gears and 63 control devices |
|---|---|
| Integrated DALI bus supply | 160 mA min.; 250 mA max.; can be switched off |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible |
| Engineering | STEP 7 V15.1 or higher; PROFIBUS GSD Revision 5; PROFINET GSDML V2.34 |

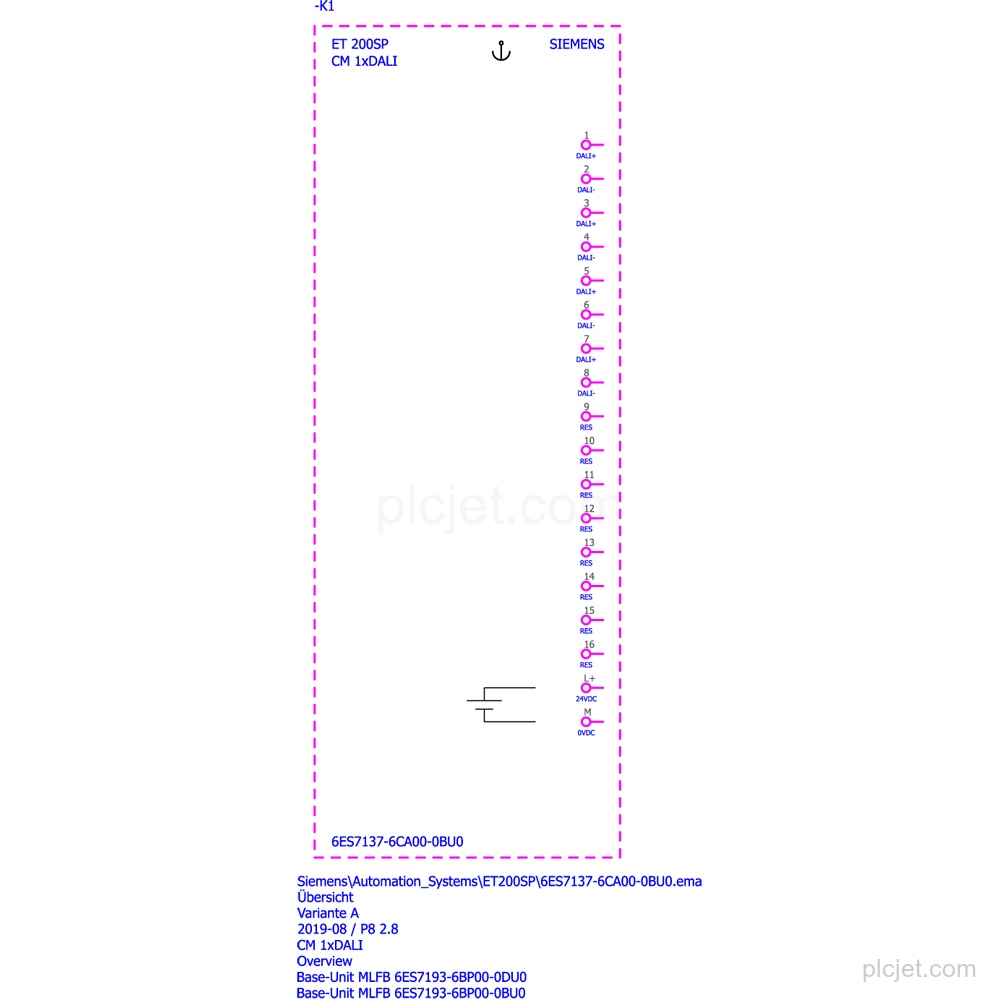

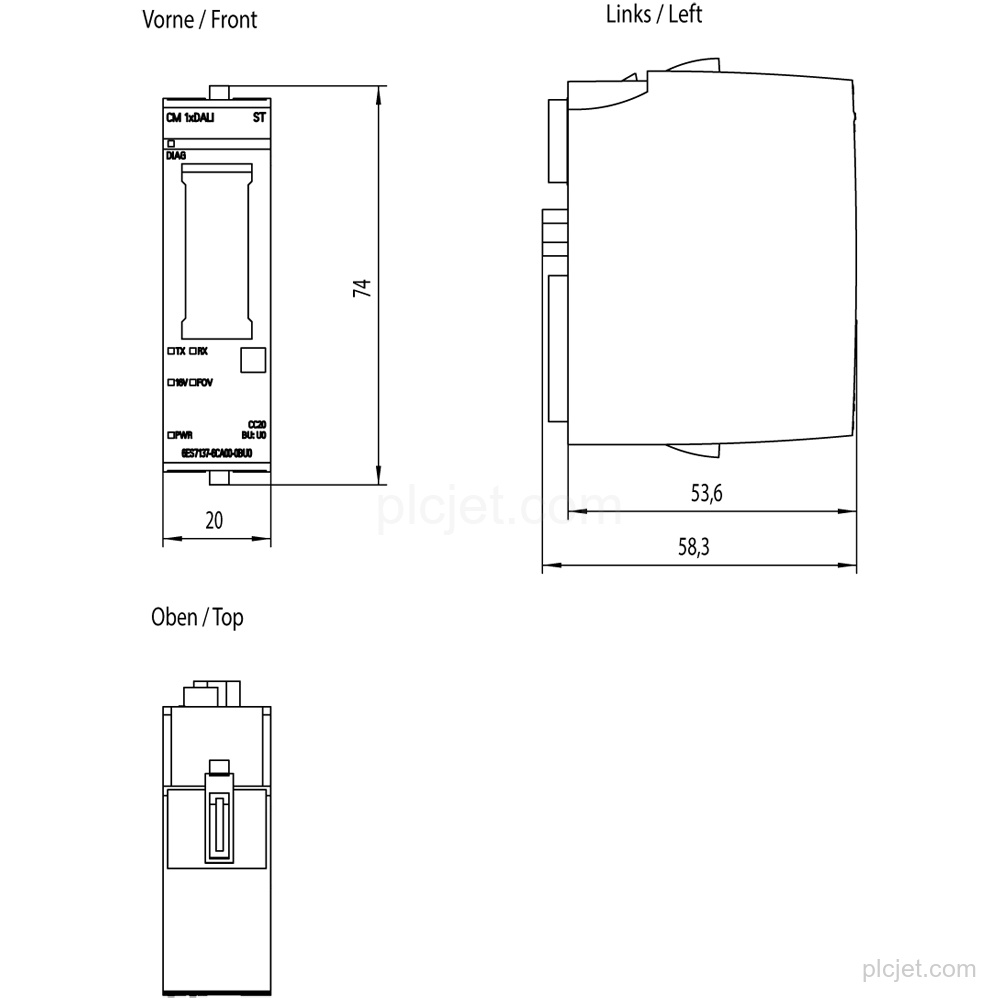

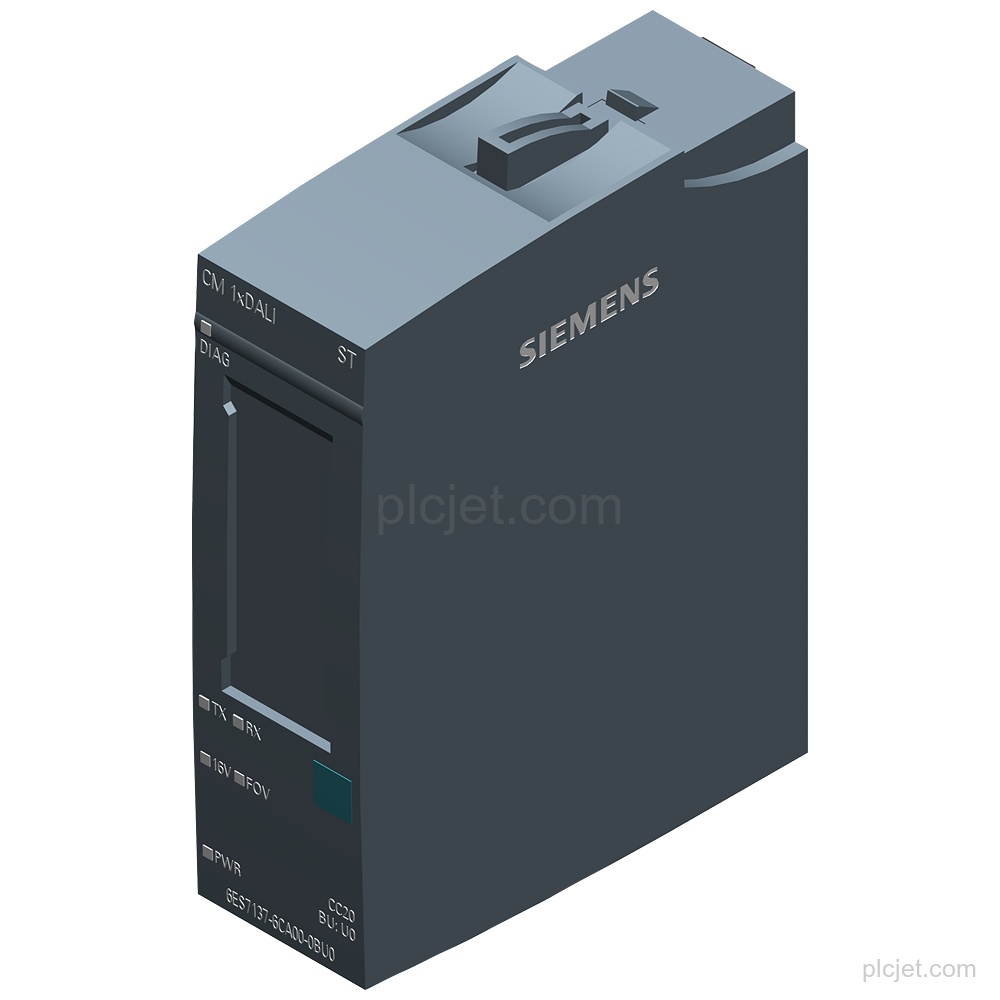

| Product type | CM 1xDALI |
| Usable BaseUnit | BU type U0 |
| Color code | CC20 |
| Address space | 16 byte maximum; 16 byte inputs; 16 byte outputs |
| Diagnostics | Diagnostic alarm; short-circuit on DALI bus; ERROR, green PWR, RxD and TxD LEDs |
| Isolation | Between backplane bus and interface; tested with 3 000 V AC (type test) |
Key Features
Supports up to 64 DALI control gears and 63 control devices.
Integrated power supply with 160 mA minimum and 250 mA maximum supply current; it can be switched off.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection: Yes.
Configurable/integrated with STEP 7 V15.1 or higher; PROFIBUS uses GSD Revision 5 and PROFINET uses GSDML V2.34.
Maximum cable length: 300 m. Standard: DALI V2 Multi-Master.
Product type designation: CM 1xDALI; usable BaseUnits: BU type U0; color code: CC20.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7137-6CA00-0BU0?
The product type designation is CM 1xDALI.
How many DALI devices does the module support?
It supports up to 64 DALI control gears and 63 control devices.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
What configuration should be retained for a quotation request?
Retain BU type U0, color code CC20, and the requested quantity, destination, schedule, and any additional BOM lines.
