Product Overview
Applications
Supports connection and control of proportional valves through PWM output, dithering, adjustable frequency and adjustable amplitude.
Supports connection of DC motors with PWM output, current measurement and current control.
Technical Summary
| Product type | TM Pulse 2×24 V |
|---|---|
| Output channels | 2; 1 per channel |
| Rated output current | 2 A per channel; 0.1 A with High Speed output, observe derating |
| Supply voltage | 24 V DC |
| Permissible load-voltage range | 19.2 V to 28.8 V DC |
| Digital inputs | 2; 1 per channel, parameterizable |
| BaseUnit | BU type B1 |
| Firmware | V1.0; firmware update possible |
Key Features
Provides 2 digital outputs, 1 per channel, with PWM output, frequency output, pulse train and pulse output functions.
Rated output current is 2 A per channel; total current is 4 A per group and 4 A per module.
Rated supply and load voltage are 24 V DC, with a permissible load-voltage range from 19.2 V to 28.8 V.

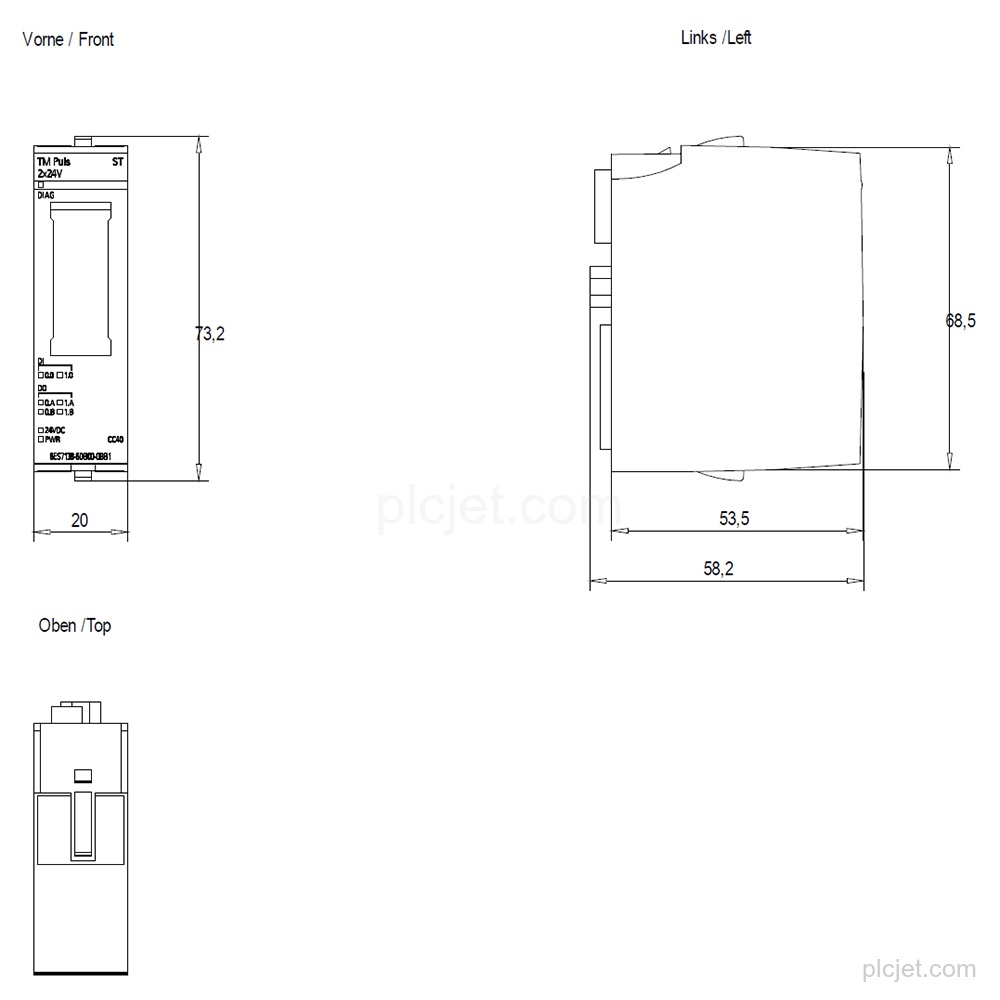

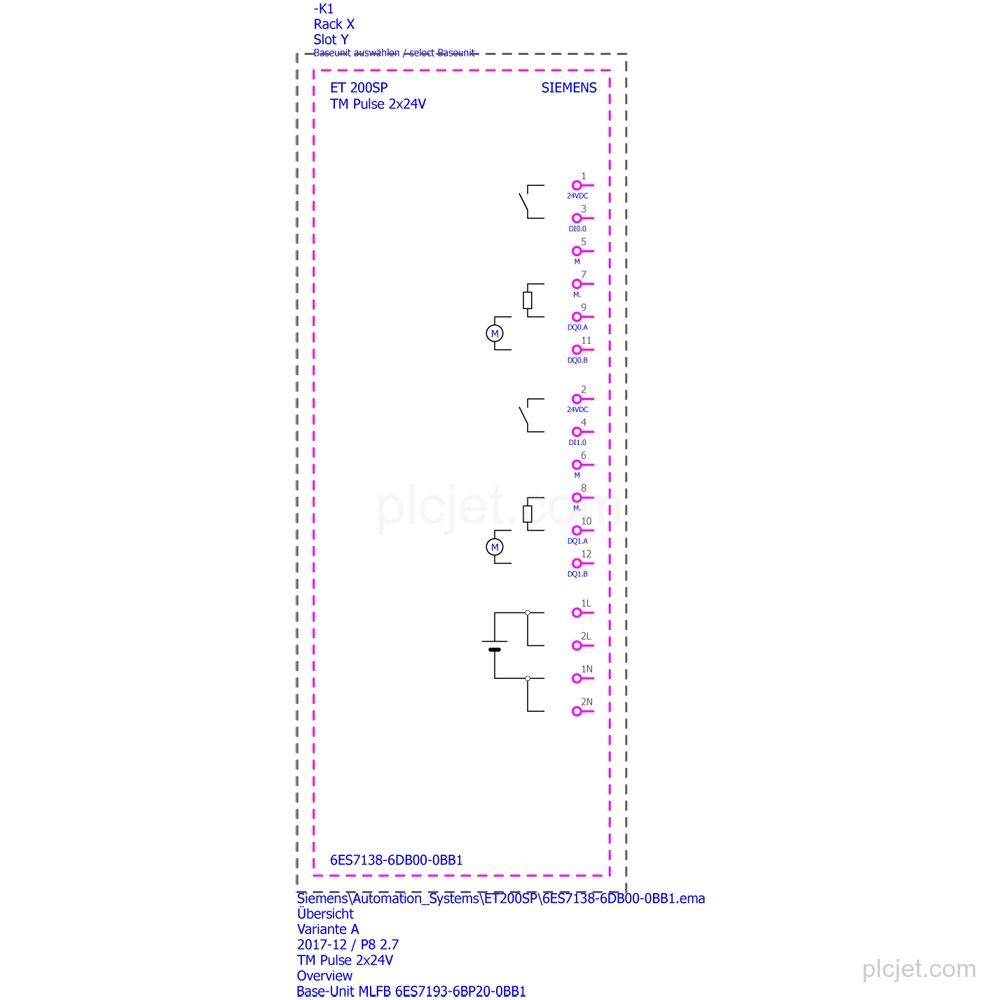

Supports connection of a proportional valve and a DC motor, plus current measurement and current control.
Has 2 parameterizable digital inputs, 1 per channel, with a rated input voltage of 24 V DC.
Uses BU type B1, has firmware version V1.0, and supports firmware updates.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7138-6DB00-0BB1, a SIMATIC ET 200SP TM Pulse 2x24V PWM and pulse output module.
How many output channels does this module have?
It has 2 digital output channels, 1 per channel, with a rated output current of 2 A per channel.
What supply voltage does it use?
The rated supply and load voltage is 24 V DC. The permissible load-voltage range is 19.2 V to 28.8 V DC.
Which BaseUnit is usable?
The usable BaseUnit is BU type B1.
Can this line item be included in a quotation request?
Yes. Include the exact line item, requested quantity, destination, schedule context and any additional BOM lines in the inquiry.
