Product Overview
Technical Summary
| Product type | BU type D0 |
|---|---|
| Terminal type | Push-in terminal |
| Process terminals | 12; Pro slot |
| Maximum current, up to 60 °C | 5 A |
| Maximum current, P1 and P2 bus | 10 A |
| Maximum current, AUX bus | 10 A |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Product lifecycle | Product cancellation |
Key Features

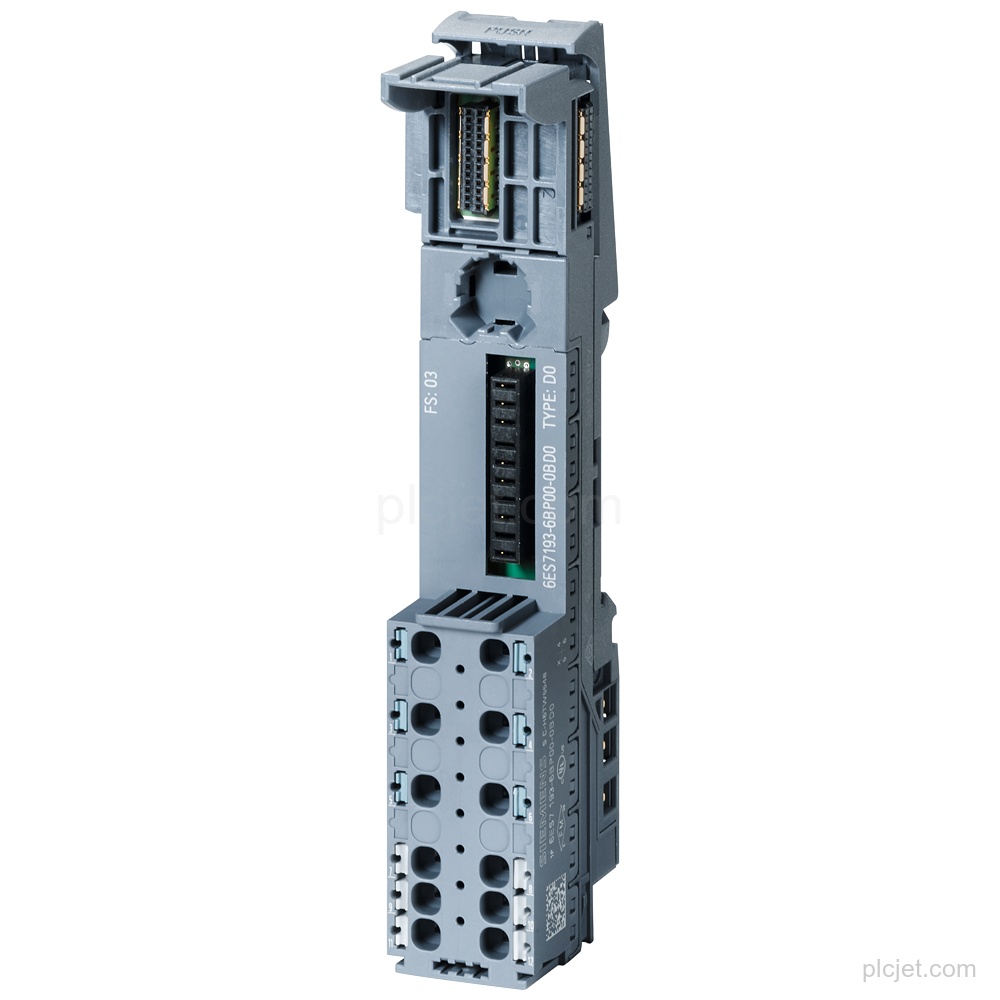

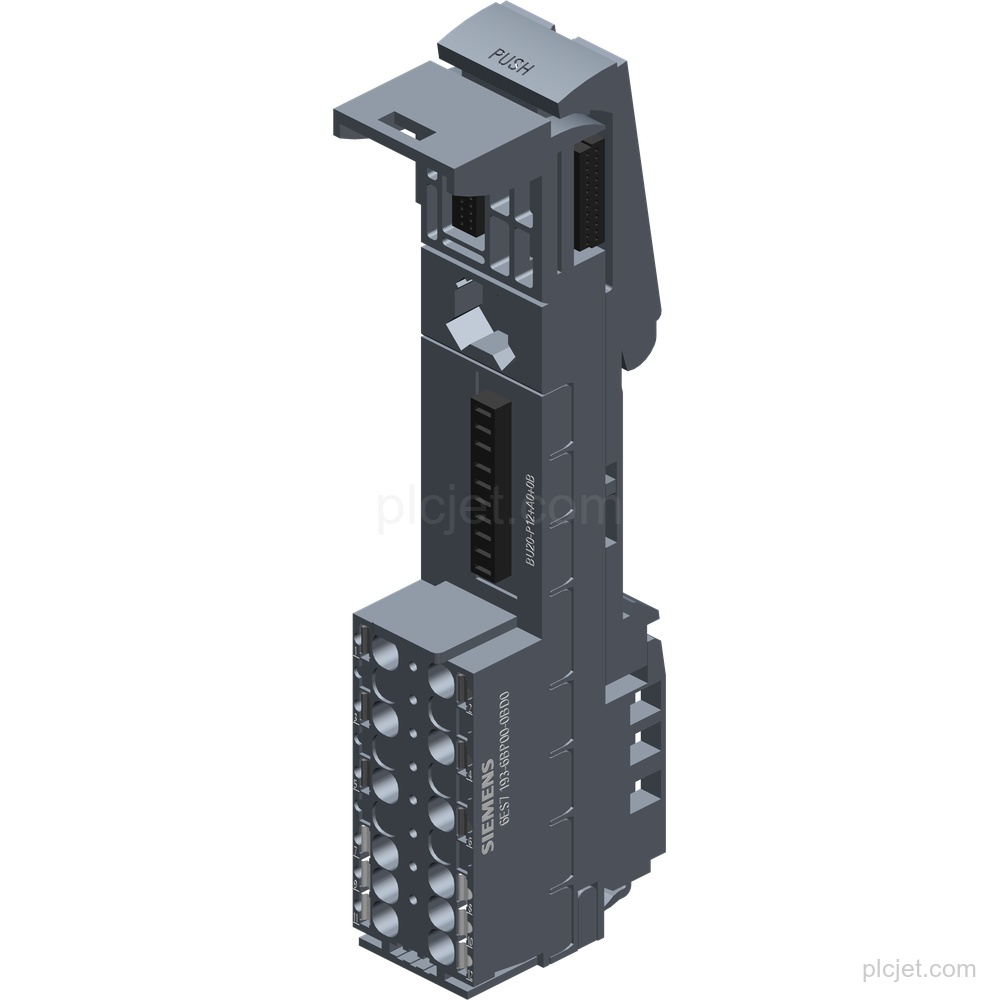

BaseUnit BU20-P12+A0+0B, BU type D0, bridged to the left, without AUX terminals.

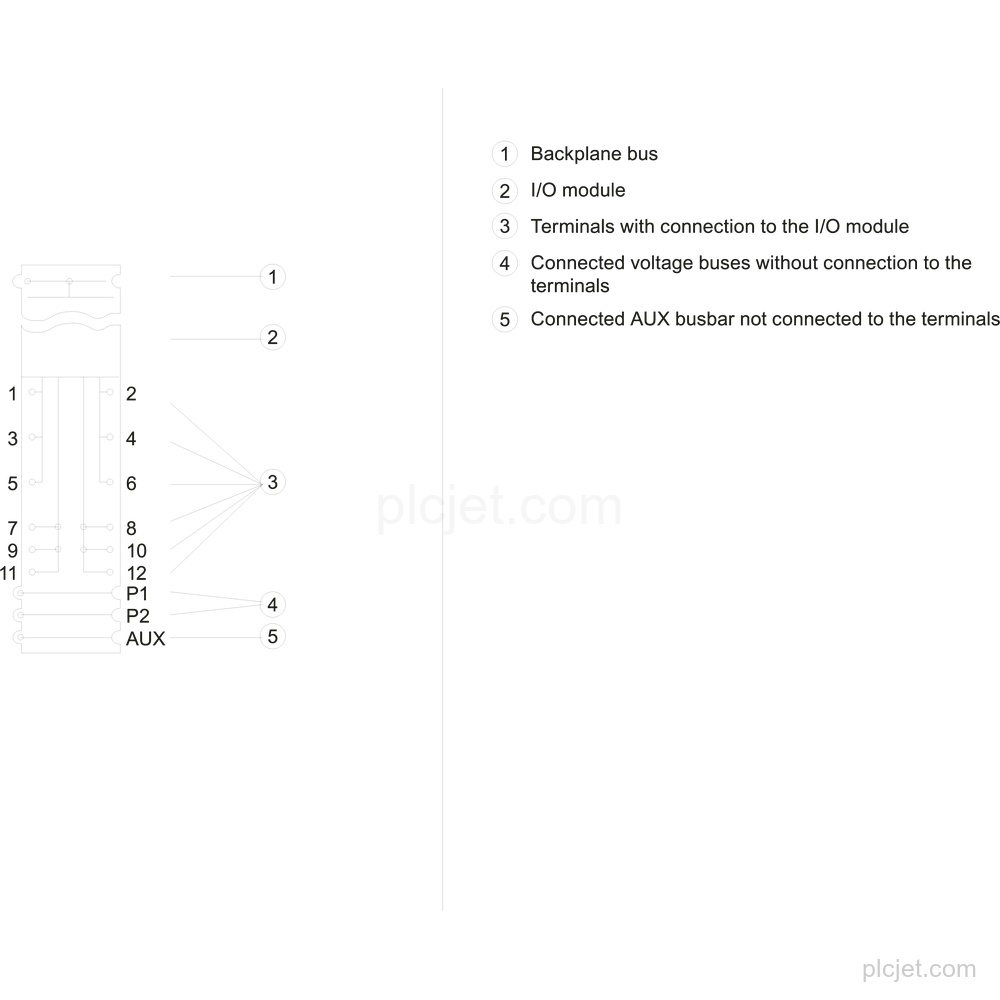

The terminal type is push-in; the unit has 12 process terminals to the I/O module.
Maximum current carrying capacity is 5 A up to 60 °C, 10 A for the P1 and P2 bus, and 10 A for the AUX bus.

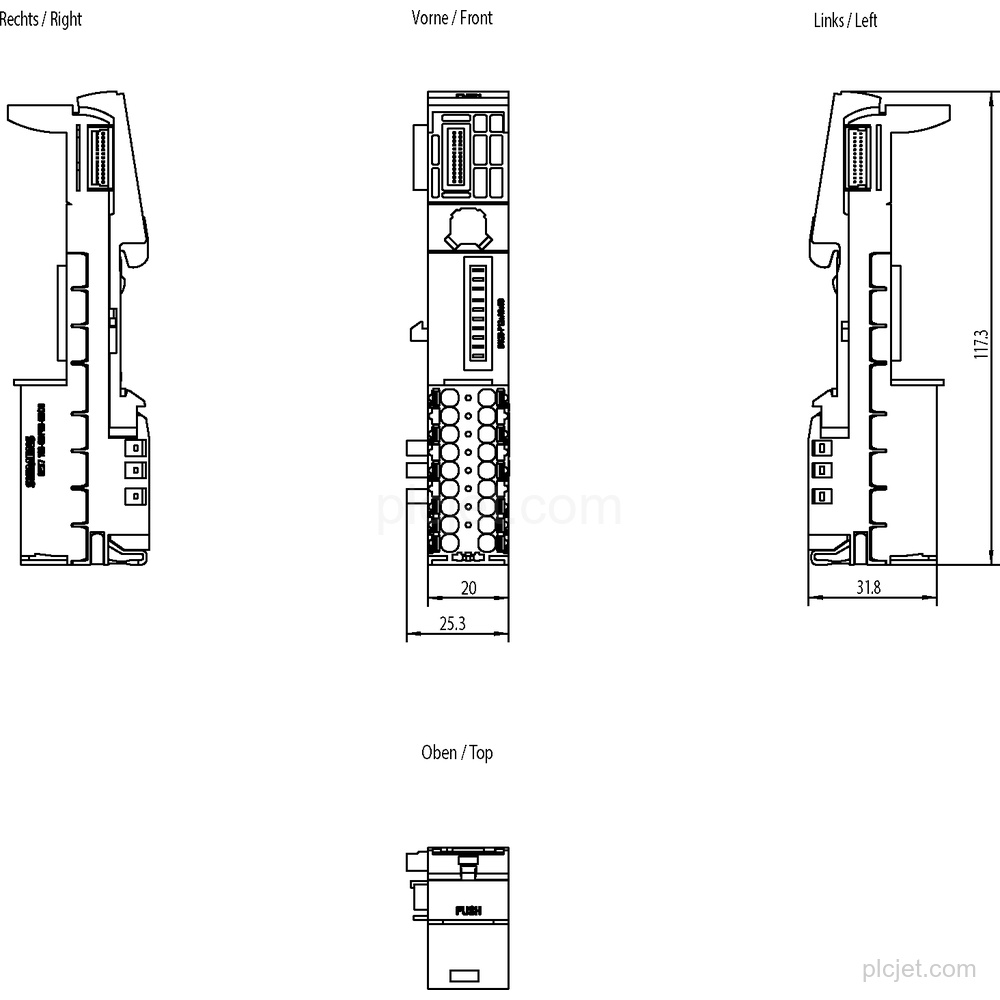

Width: 20 mm; height: 117 mm; depth: 35 mm. Weight: approx. 47 g.
For horizontal installation: -30 °C to 60 °C. For vertical installation: -30 °C to 50 °C.
Product cancellation.
Frequently Asked Questions
What is the exact configuration of 6ES7193-6BP00-0BD0?
It is a SIMATIC ET 200SP BaseUnit BU20-P12+A0+0B, BU type D0, with push-in terminals, bridged to the left and without AUX terminals.
How many process terminals does this BaseUnit have?
It has 12 process terminals to the I/O module.
What are the mounting dimensions?
Width is 20 mm, height is 117 mm, and depth is 35 mm.
What operating temperatures are specified?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
