Product Overview
Technical Summary
| Product type | Potential distributor module |
|---|---|
| Terminal type | Push-in terminal |
| Process terminals to I/O module | 16 |
| Terminals with connection to P1 and P2 bus | 2 |
| Process terminal voltage, DC | 48 V; max. |
| Process terminal voltage, AC | 240 V; max. |
| Current carrying capacity | 10 A; up to 60 °C, max. |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Protection configuration | No connection to P1, P2, AUX |
Key Features

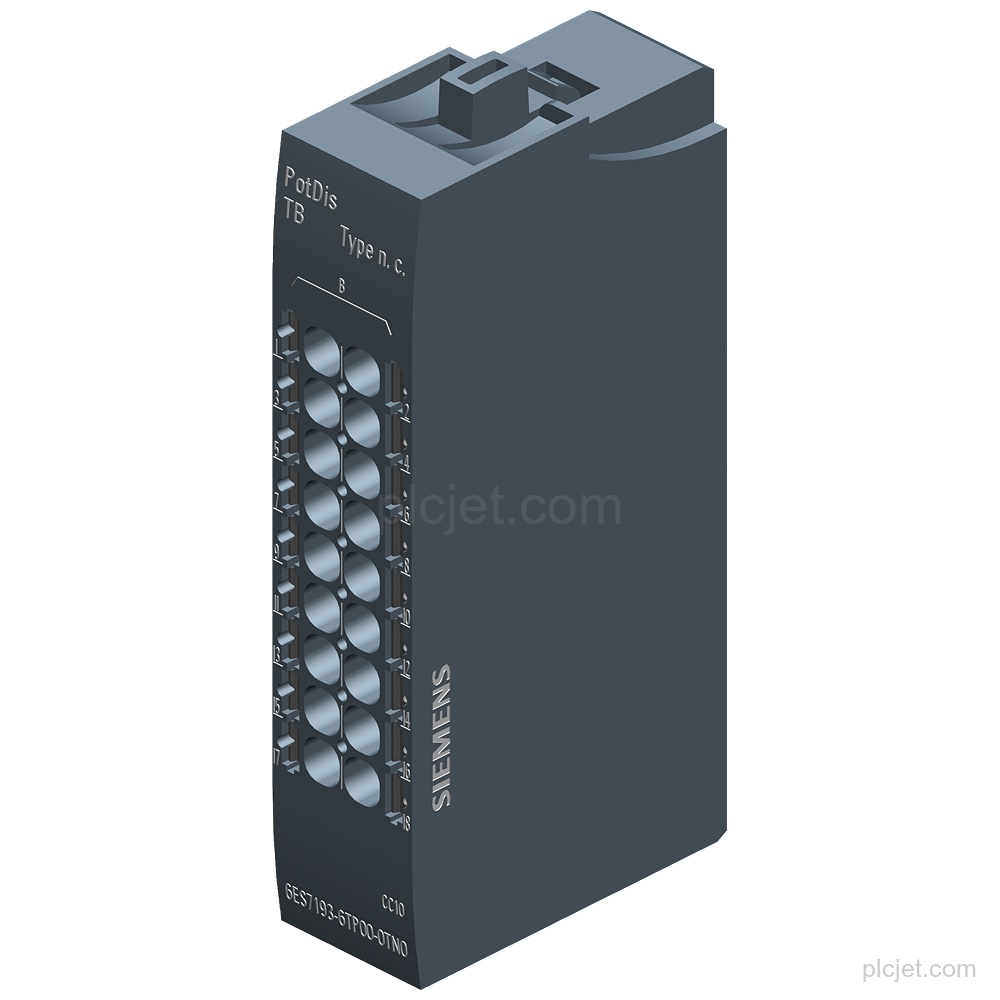

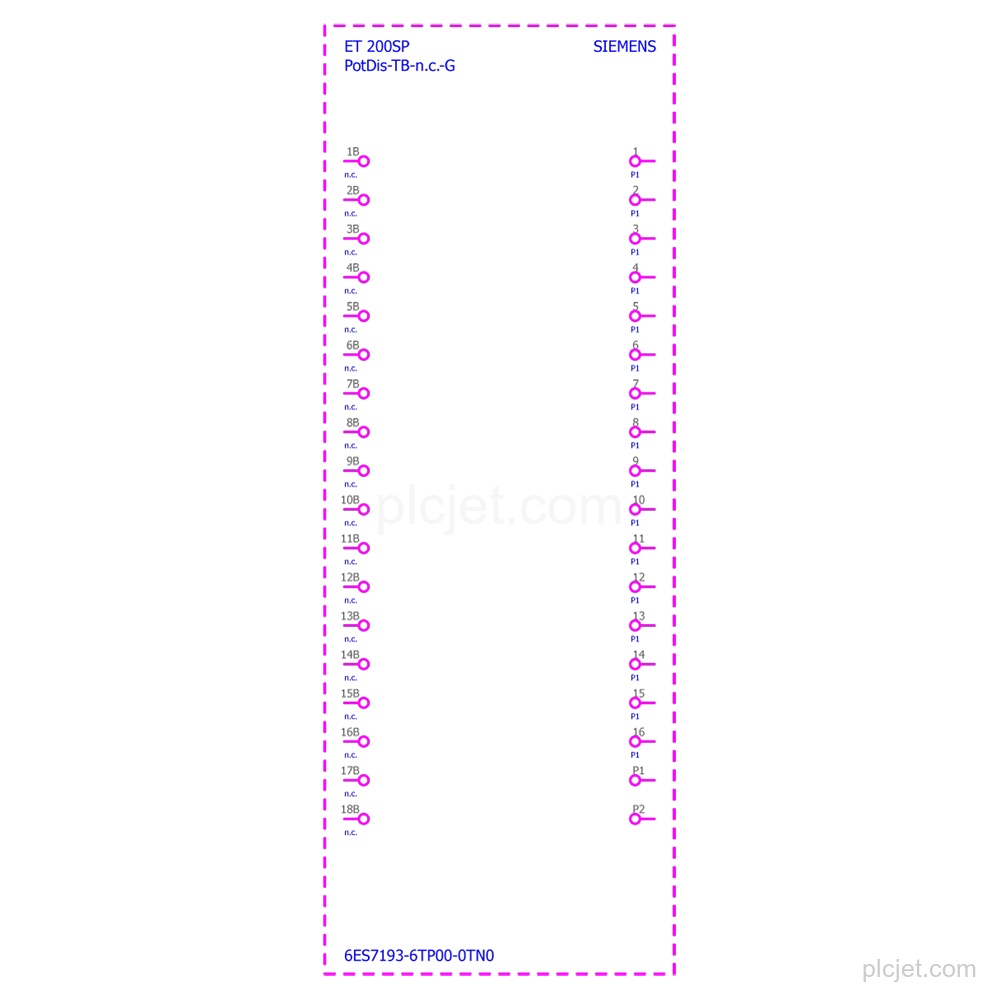

PotDis-TB-n.c.-G terminal block with 18 n.c. Push-In terminals; 16 process terminals connect to the I/O module, and 2 terminals connect to the P1 and P2 bus.
Process terminals: 48 V DC maximum and 240 V AC maximum.
10 A maximum up to 60 °C and 10 A maximum for the P1 and P2 bus.
Potential separation is provided between the process terminals and supply voltage.

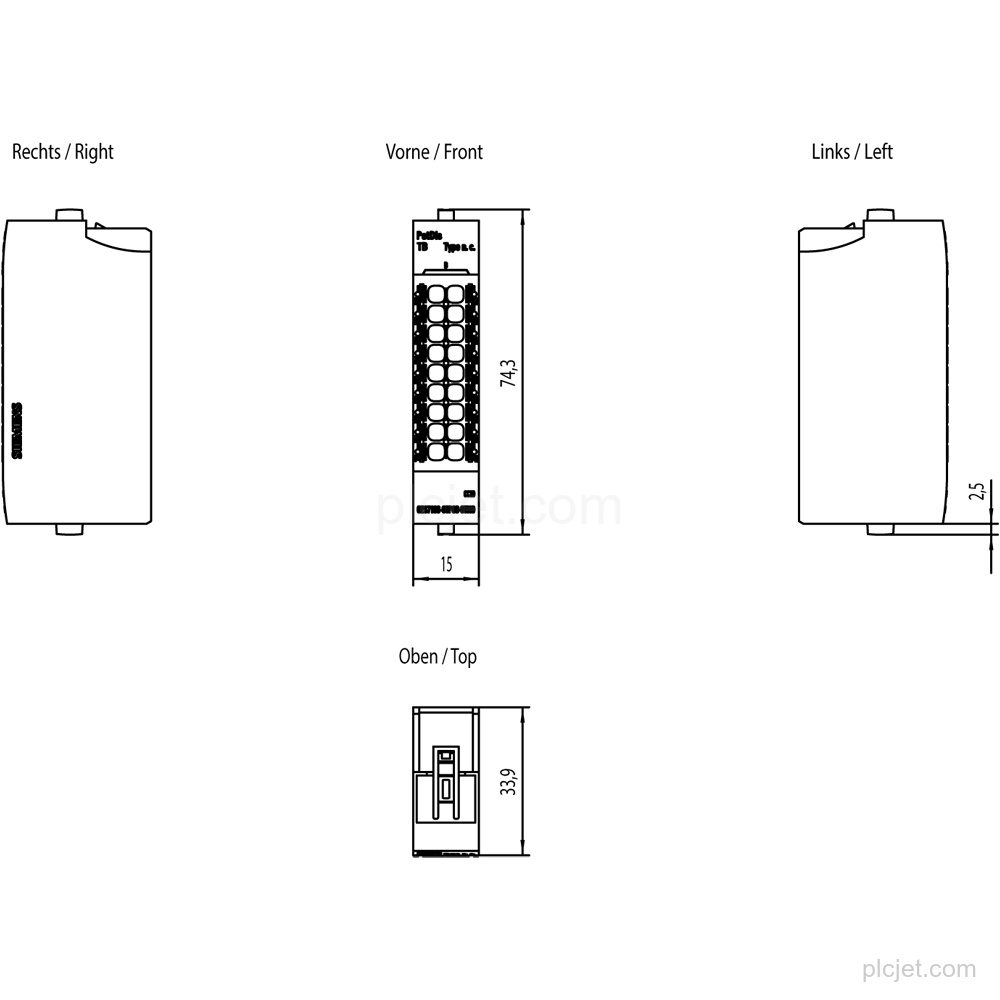

15 mm width, 74 mm height, 34 mm depth, and approximately 24 g.
Push-In terminals accept conductor cross-sections from 0.14 mm2 to 2.5 mm2, with the stated wire end ferrule limits.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7193-6TP00-0TN0?
It is a SIMATIC ET 200SP potential distributor module with the PotDis-TB-n.c.-G product type designation.
How many process terminals does the module have?
It has 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
What are the process terminal voltage ratings?
The process terminals are rated at 48 V DC maximum and 240 V AC maximum.
What connections are excluded from this configuration?
It has no connection to P1, P2 or AUX.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines with the line item.
