Product Overview
Technical Summary
| Product type designation | PotDis-TB-P1-R |
|---|---|
| Potential distributor configuration | 18 x potential P1 |
| Terminal type | Push-in terminal |
| Rated voltage, P1 and P2 bus | 48 V; max. |
| Rated voltage, process terminals | 48 V; max. |
| Current carrying capacity | Up to 60 °C, max.: 10 A |
| Process terminals to I/O module | 16 |
| Terminals with connection to P1 and P2 bus | 2 |
| Ambient temperature during operation | Horizontal installation: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C |
Key Features

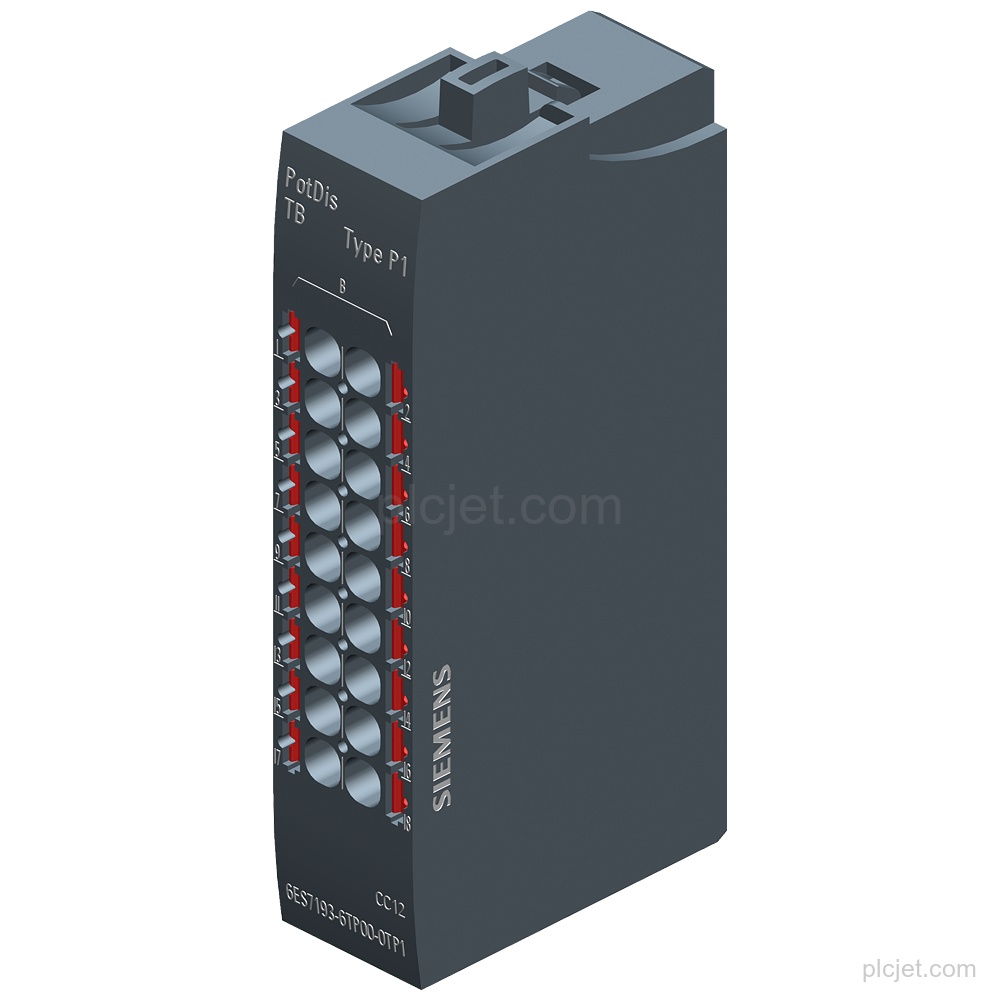

PotDis-TB-P1-R with 18 x potential P1.
P1 and P2 bus: 48 V; max. Process terminals: 48 V; max.
Up to 60 °C, max.: 10 A. P1 and P2 bus and process terminals: 10 A max.
Conductor cross-section: 0.14 mm2 min.; 0.2 mm2 without wire end ferrule. Maximum: 2.5 mm2; 1.5 mm2 with wire end ferrule.

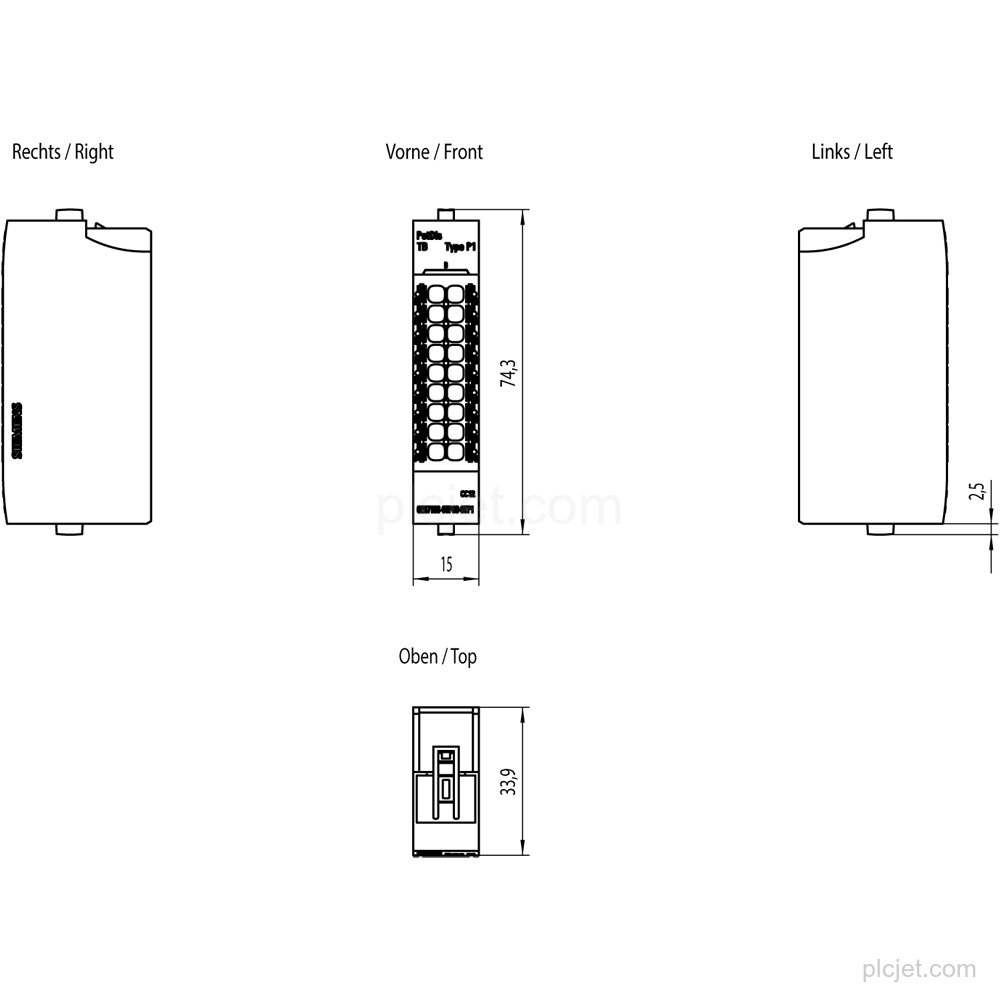

16 process terminals to I/O module and 2 terminals with connection to P1 and P2 bus. Dimensions: 15 mm wide, 74 mm high, 34 mm deep.
Frequently Asked Questions
What is the exact product type designation?
The product type designation is PotDis-TB-P1-R for Siemens 6ES7193-6TP00-0TP1.
What voltage and current values apply to the buses and process terminals?
P1 and P2 bus: 48 V; max. Process terminals: 48 V; max. Current carrying capacity is 10 A max. for the P1 and P2 bus and process terminals.
Which conductors can the Push-In terminals accept?
The conductor cross-section is 0.14 mm2 min.; 0.2 mm2 without wire end ferrule, and 2.5 mm2 max.; 1.5 mm2 with wire end ferrule.
How many terminals are provided?

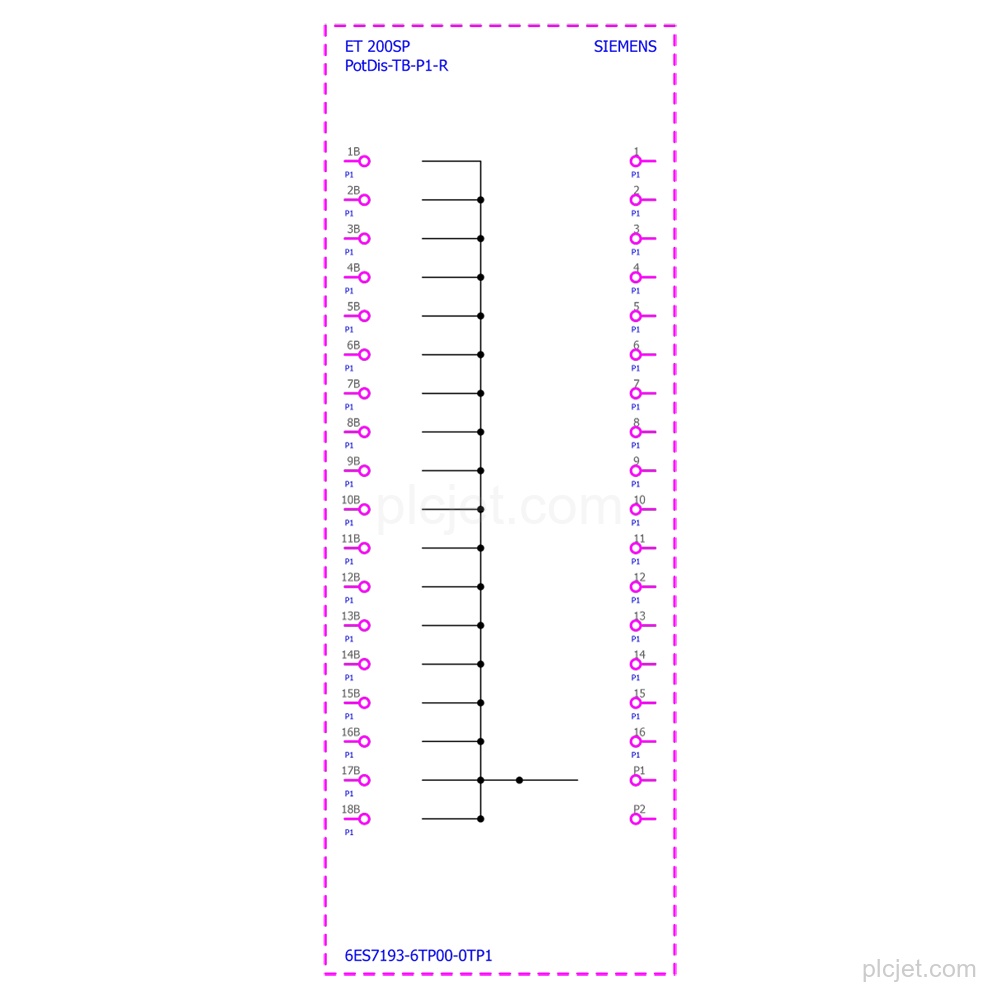

There are 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
