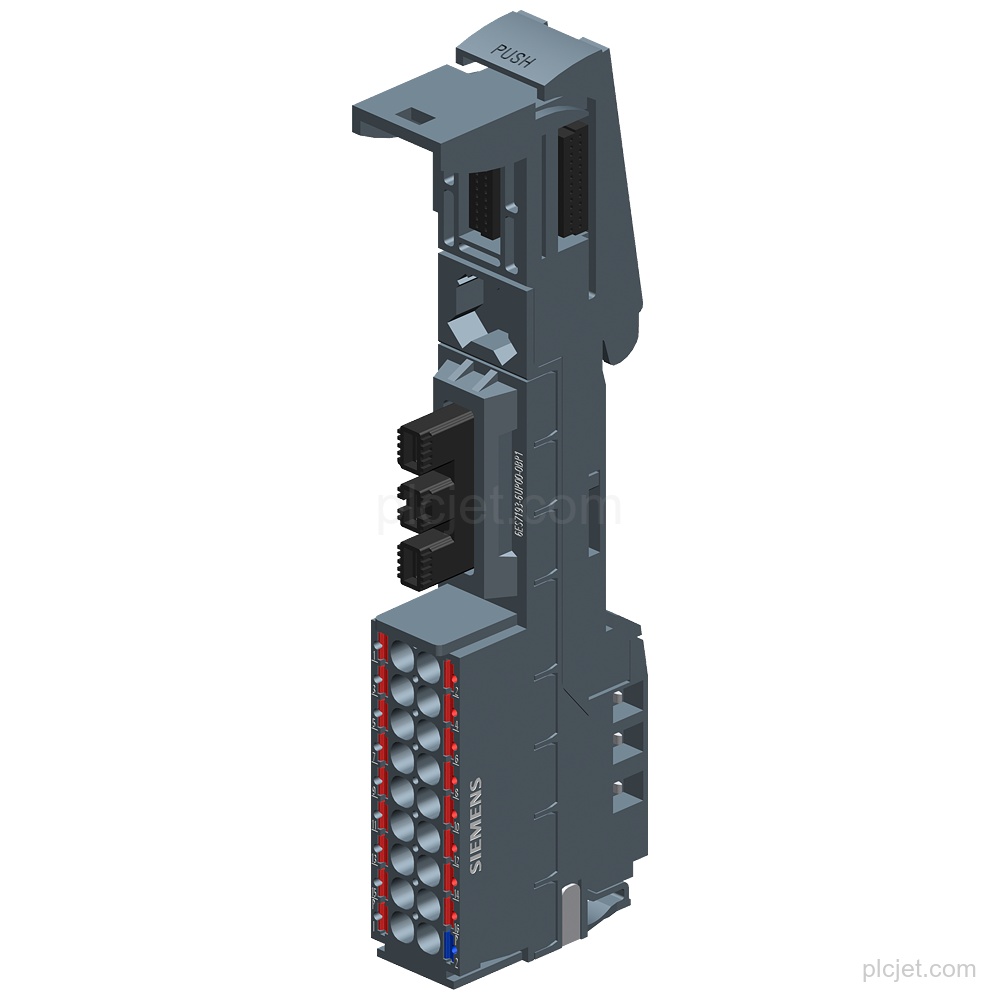

Product Overview
Applications
The product has a General Product Approval for use in hazardous locations.
The source identifies a maritime application and Environment classification.
Technical Summary
| Product type | PotDis BU type P1, dark version |
|---|---|
| Potential connections | 17 terminals to P1, 1 terminal to P2 |
| Maximum voltage | 48 V maximum for P1 and P2 bus and process terminals |
| Maximum current-carrying capacity | 10 A for P1 and P2 bus and process terminals |
| Terminal type | Push-In terminal |
| Potential group | Potential group continued from the left; no new potential group |
| Potential separation | Between backplane bus and supply voltage |
| Isolation test | 3 250 V DC |
| Operating ambient temperature | Horizontal installation: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C |
| Installation altitude | 5 000 m maximum above sea level; restrictions apply above 2 000 m |
| Product lifecycle | Active Product |
Key Features

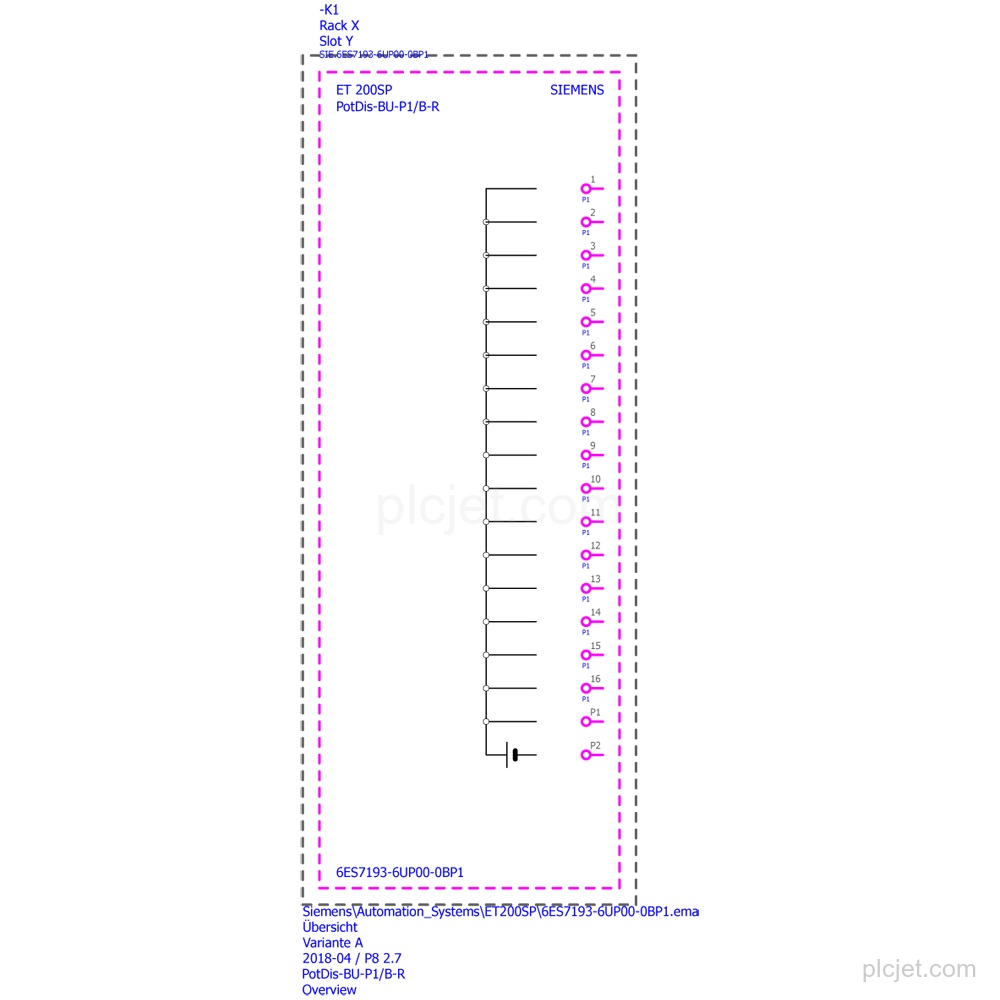

PotDis-BU type P1, dark version, with 17 P1-potential and 1 P2-potential connections.
P1, P2 and AUX rails are bridged to the left BaseUnit; no new potential group is formed.
P1 and P2 bus and process terminals: 48 V maximum and 10 A maximum current-carrying capacity.
Push-In terminals accept conductor cross-sections from 0.14 mm2 to 2.5 mm2.

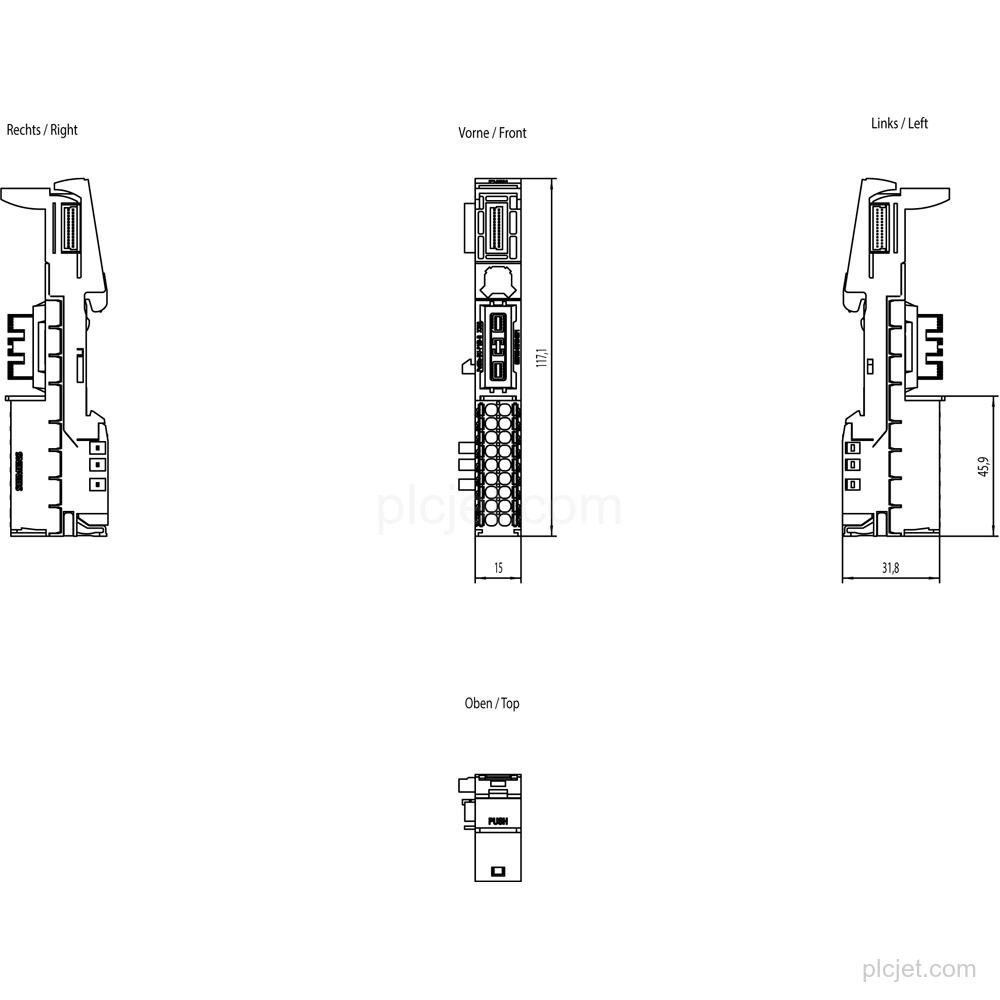

Width: 15 mm; height: 117 mm; depth: 35 mm; 1 slot.
Potential separation is provided between the backplane bus and supply voltage; isolation tested with 3 250 V DC.
Frequently Asked Questions
What is the exact product type of 6ES7193-6UP00-0BP1?
It is a PotDis BU type P1, dark version, for SIMATIC ET 200SP.
How many P1 and P2 connections does the module provide?
It provides 17 terminals to P1 and 1 terminal to P2.
What terminals and conductor sizes does it use?
It uses Push-In terminals for conductor cross-sections from 0.14 mm2 to 2.5 mm2.
What configuration details should be included in a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
