Product Overview
Technical Summary
| Product type | PotDis BU type P2, dark version |
|---|---|
| Bus potential arrangement | 1 P1 potential, 17 P2 potentials; P1, P2, and AUX rails bridged to the left bus unit |
| Rated voltage | 48 V max. for P1 and P2 bus and process terminals |
| Current carrying capacity | 10 A max. for P1 and P2 bus and process terminals |
| Terminal type | Push-In terminal |
| Conductor cross-section | 0.14 mm2 to 2.5 mm2 |
| Potential group formation | No new potential group; potential group continued from the left |
Key Features

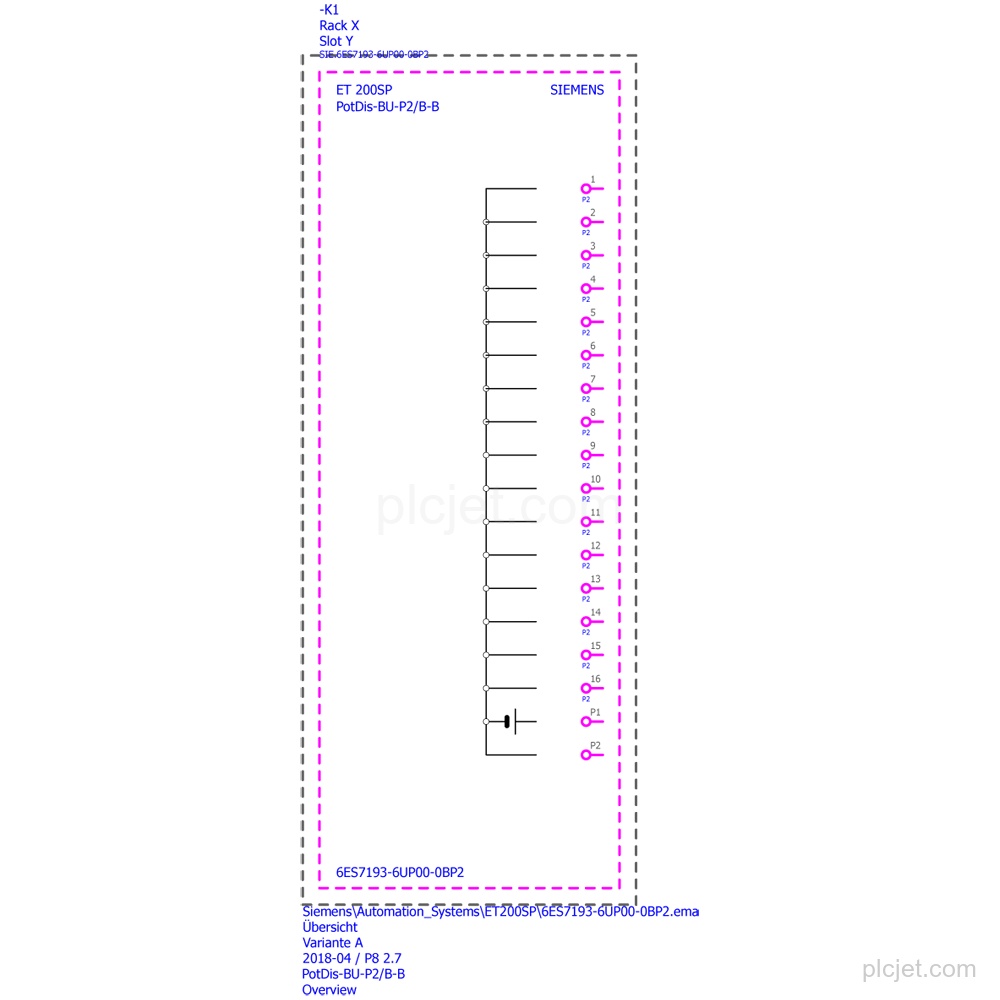

PotDis-BaseUnit PotDis-BU type P2, dark version, with 1 P1 potential and 17 P2 potentials.
P1, P2, and AUX rails are bridged to the left bus unit; no new potential group is formed.
P1 and P2 bus: 48 V max.; process terminals: 48 V max.
P1 and P2 bus: 10 A max.; process terminals: 10 A max.
Push-In terminals accept conductor cross-sections from 0.14 mm2 to 2.5 mm2; 18 terminals connect to the P1 and P2 bus.

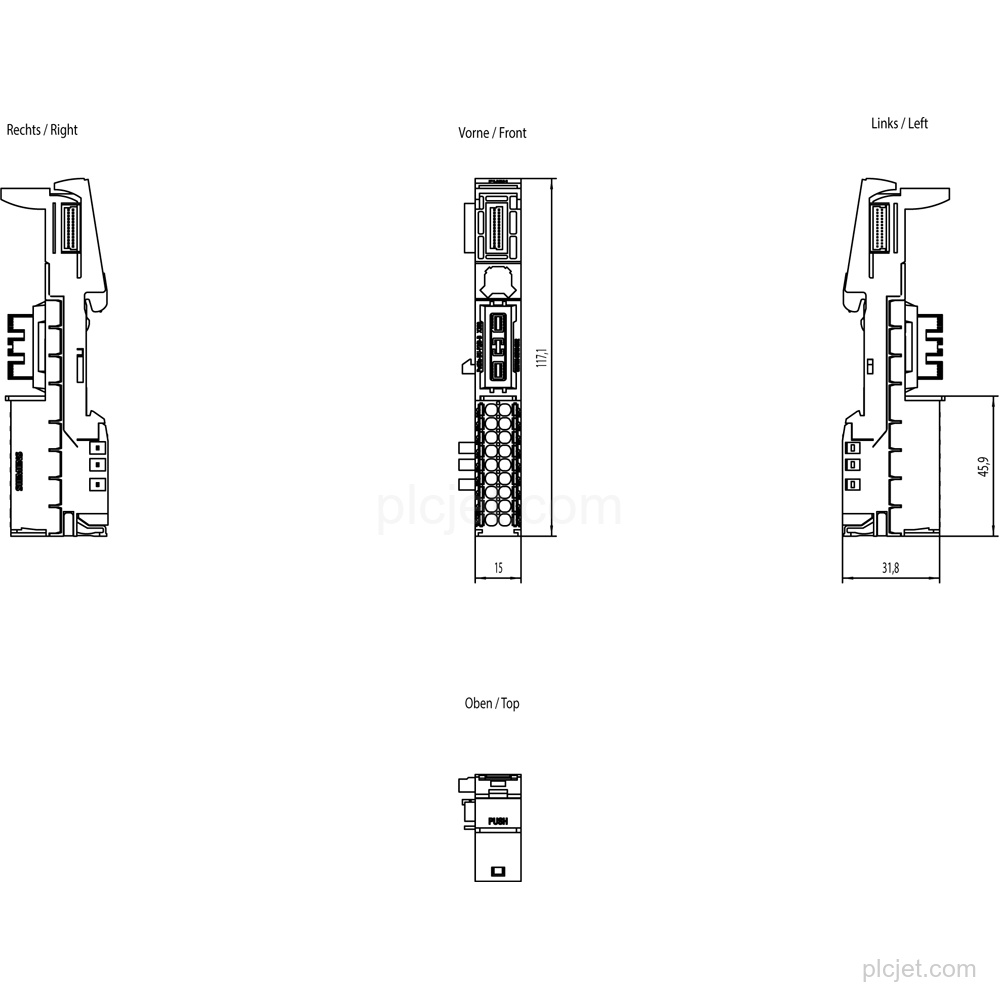

Width: 15 mm; height: 117 mm; depth: 35 mm.
Frequently Asked Questions
What exact product is 6ES7193-6UP00-0BP2?

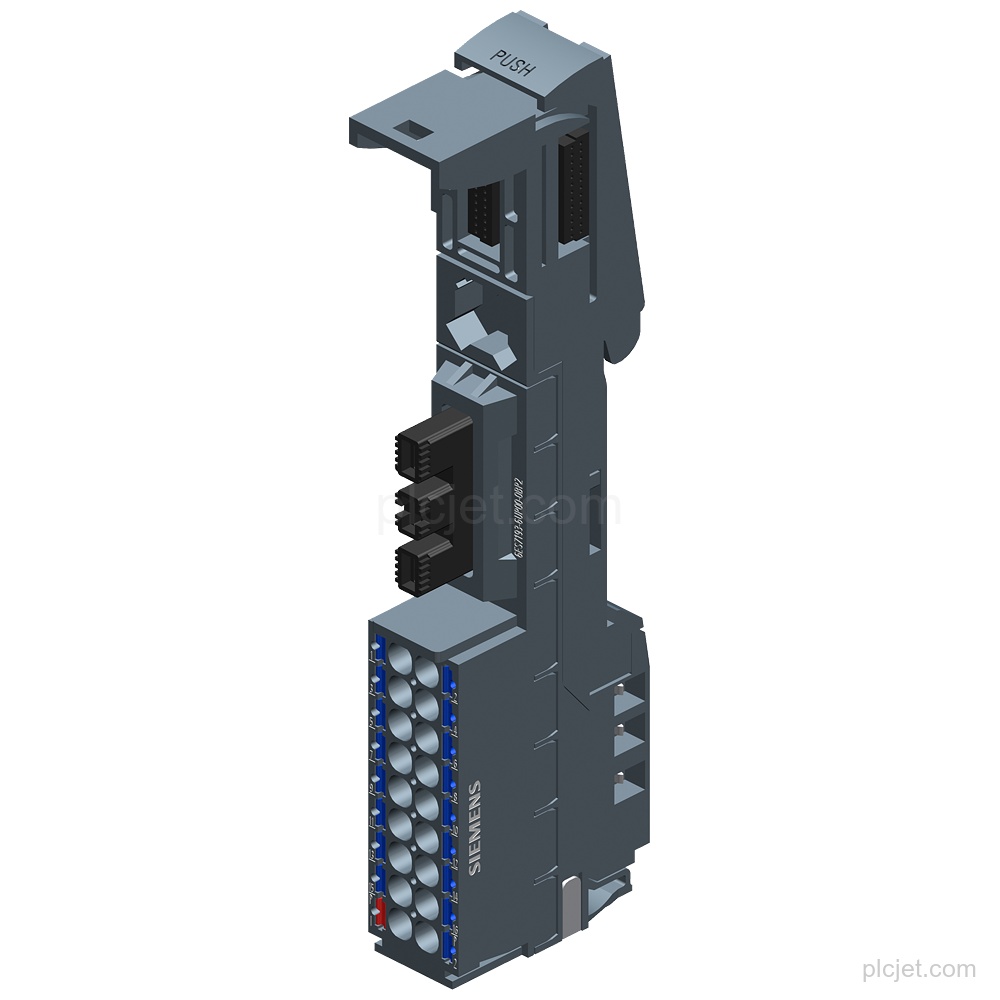

It is a Siemens SIMATIC ET 200SP PotDis-BaseUnit PotDis-BU type P2 potential distributor, dark version.
What voltage and current ratings does this potential distributor have?
The P1 and P2 bus and the process terminals have a rated value of 48 V max. and a current carrying capacity of 10 A max.
What terminals and conductor sizes does it use?
It has Push-In terminals for 0.14 mm2 to 2.5 mm2 conductors and 18 terminals connected to the P1 and P2 bus.
How should I request this line item for a project quotation?
Include 6ES7193-6UP00-0BP2, the requested quantity, destination, schedule context, and any additional BOM lines.
