Product Overview
Applications
Supports voltage measurement through 4 analog inputs with a 0 to +10 V input range.
Technical Summary

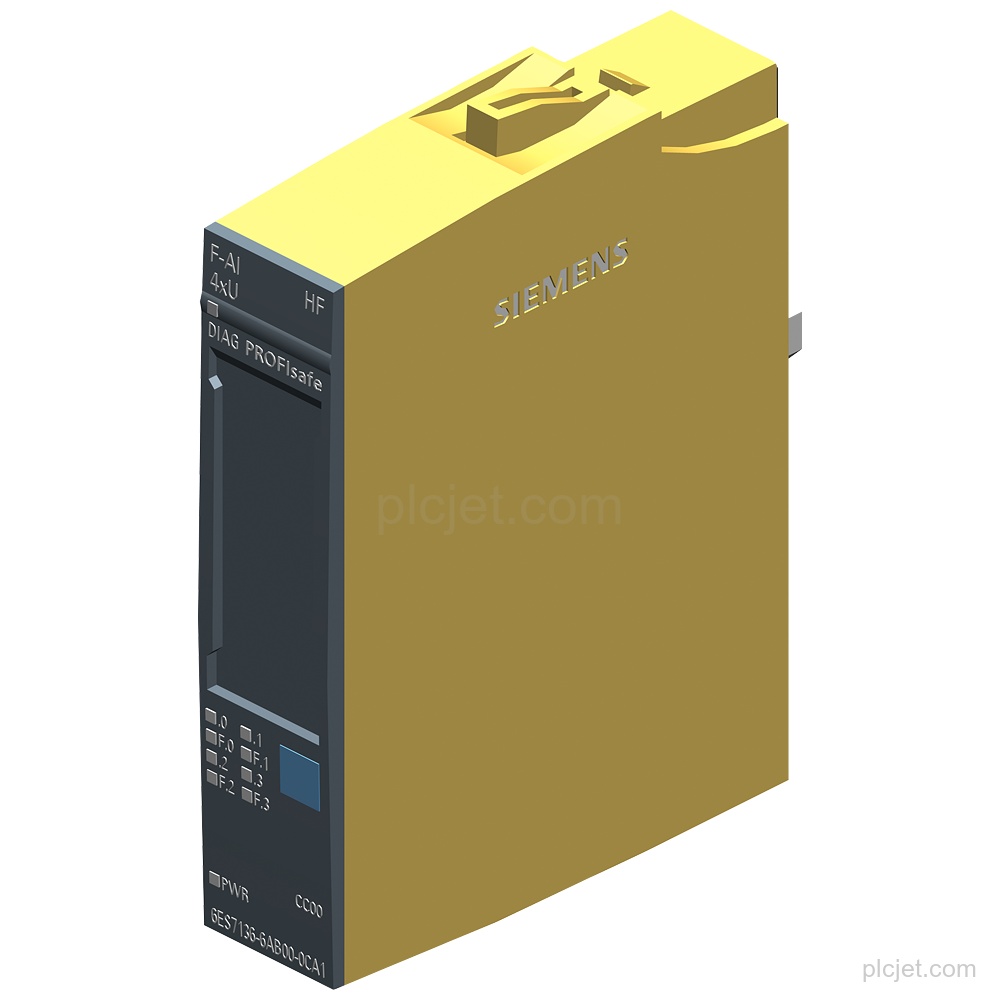

| Product type | F-AI 4XU 0..10V HF |
|---|---|
| Analog inputs | 4 |
| Input range | 0 to +10 V |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Safety performance | PLe, Category 4 according to ISO 13849-1; SIL 3 according to IEC 61508 |
| Resolution with overrange | Maximum 16 bit including sign |
| Encoder supply output current | Maximum 300 mA; total current of all encoders/channels |
| Firmware update | Possible |
| Engineering | STEP 7 TIA Portal configurable/integrated from V16 with HSP 308 |
| Mounting temperature | 0 °C to 60 °C horizontal; 0 °C to 50 °C vertical |
Key Features
4 analog inputs for voltage measurement with a 0 to +10 V input range.
Performance level PLe and Category 4 according to ISO 13849-1; SIL 3 according to IEC 61508.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Encoder supply provides 24 V with maximum output current of 300 mA total for all encoders/channels.
Resolution with overrange is maximum 16 bit including sign; integration time is parameterizable at 20 / 16,667 ms.
Diagnostics include supply-voltage monitoring, wire-break detection, diagnostic alarms, and RUN, ERROR, PWR, channel-status, and DIAG LEDs.

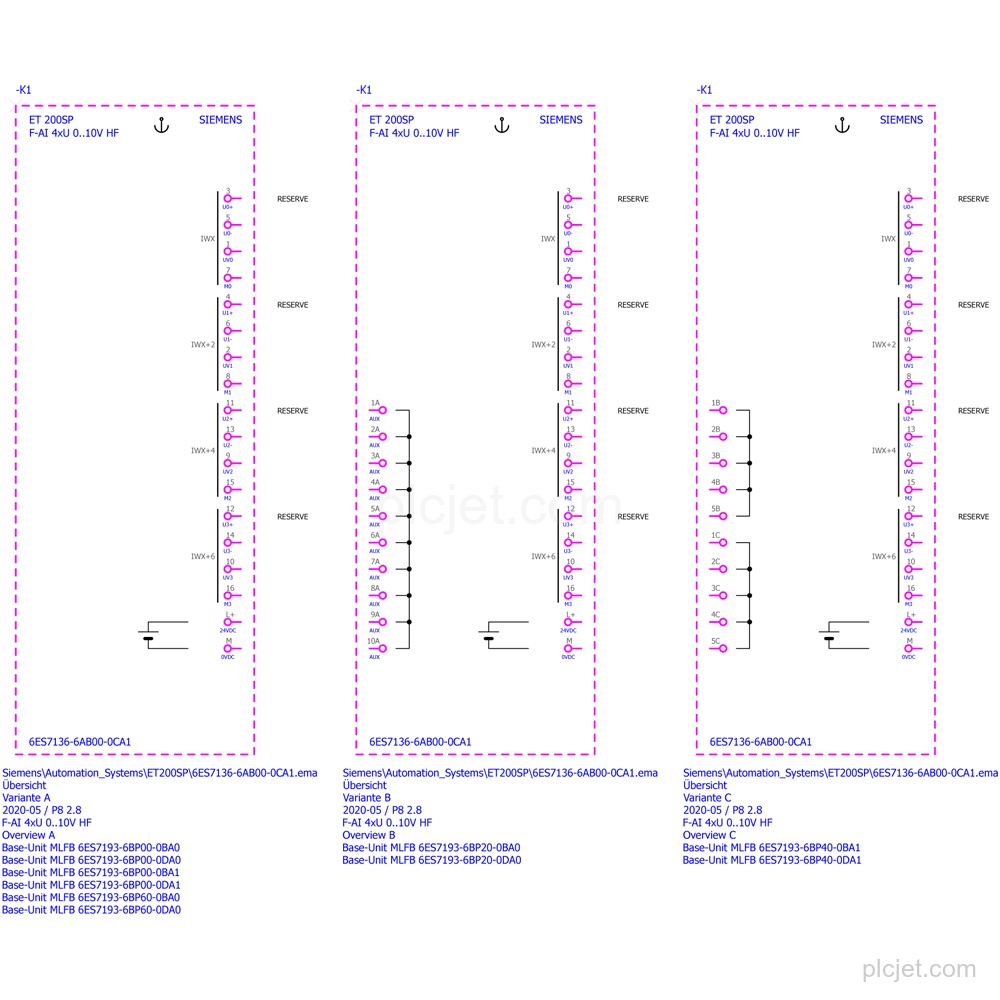

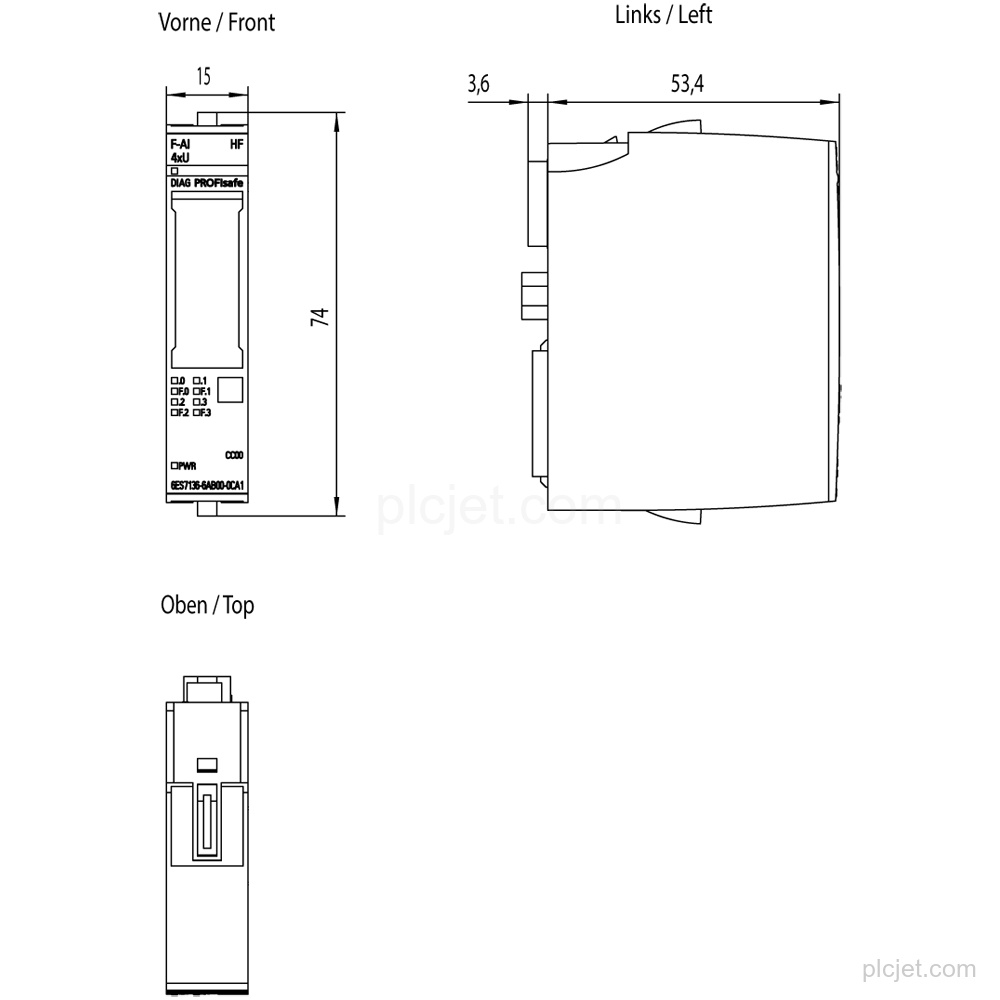

Shielded cable length is maximum 200 m. Dimensions are 15 mm width, 73 mm height, and 58 mm depth.
Frequently Asked Questions
What is the exact product type of 6ES7136-6AB00-0CA1?
The product type designation is F-AI 4XU 0..10V HF.
How many analog voltage inputs does the module have?
It has 4 analog inputs for voltage measurement, supporting 0 to +10 V.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
What safety performance is supported?
It supports PLe and Category 4 according to ISO 13849-1, and SIL 3 according to IEC 61508.
