Product Overview
Applications
Supports pulse counting through the parameterizable counter function.
Supports standstill and speed monitoring through the counter function.
Technical Summary
| Product type | F-DI 8x24VDC HF |
|---|---|
| Digital inputs | 8 |
| Rated input voltage | 24 V DC |
| Supply voltage, rated | 24 V DC |
| Counter | 1; up to 500 Hz; up/down counting |
| Encoder supply | 8 outputs; 300 mA per channel max.; 800 mA per module max. |
| Usable BaseUnit | BU type A0 |
| Firmware version | V3.0 |
| PROFINET GSD version | GSDML V2.45 |
| Safety capability | Up to PLe (ISO 13849-1)/SIL3 (IEC 61508) |
Key Features
8 parameterizable digital inputs with 24 V DC rated input voltage.
F-DI 8x24VDC HF with safety capability up to PLe (ISO 13849-1)/SIL3 (IEC 61508).
1 parameterizable counter with counting frequency up to 500 Hz and up/down counting direction.
8 outputs for 24 V encoder supply; output current is up to 300 mA per channel and 800 mA per module for the total current of all encoders.
Diagnostics function and diagnostic alarm are available, with RUN, ERROR, PWR, channel-status, channel-diagnostics, and module-diagnostics LEDs.

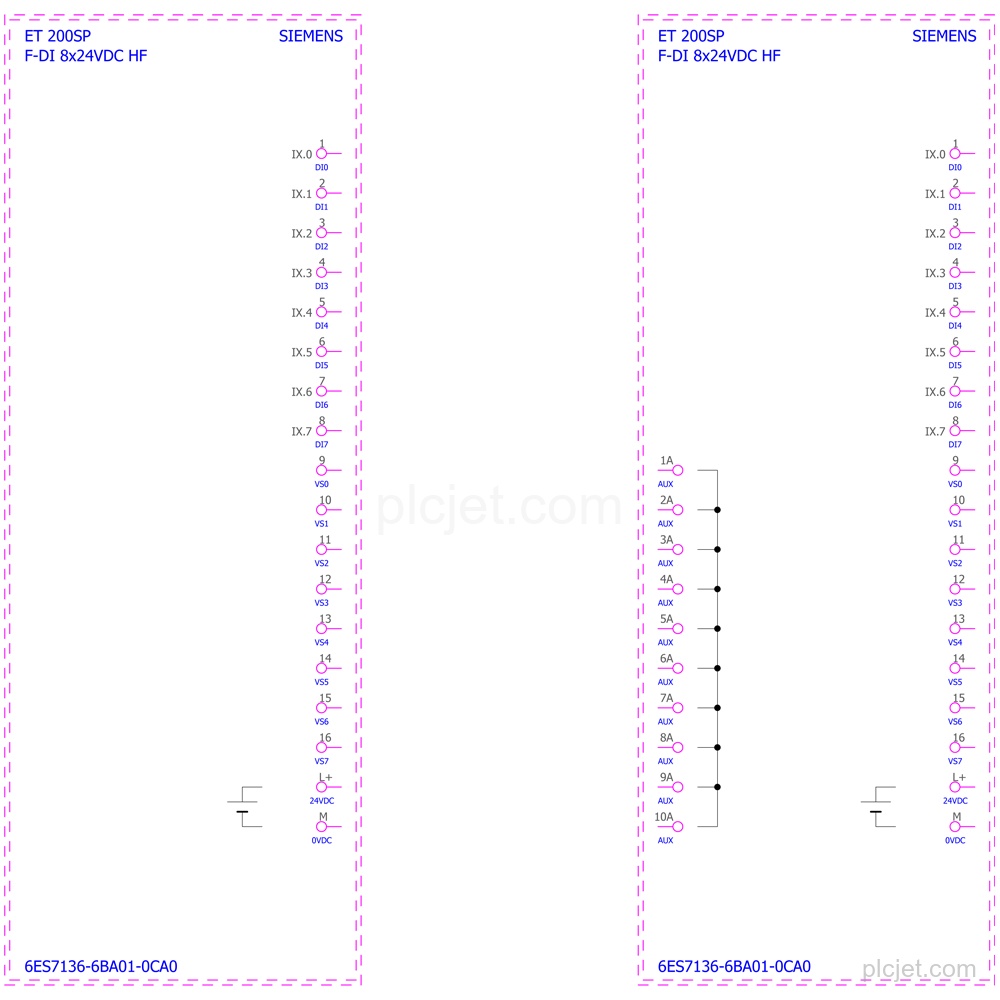

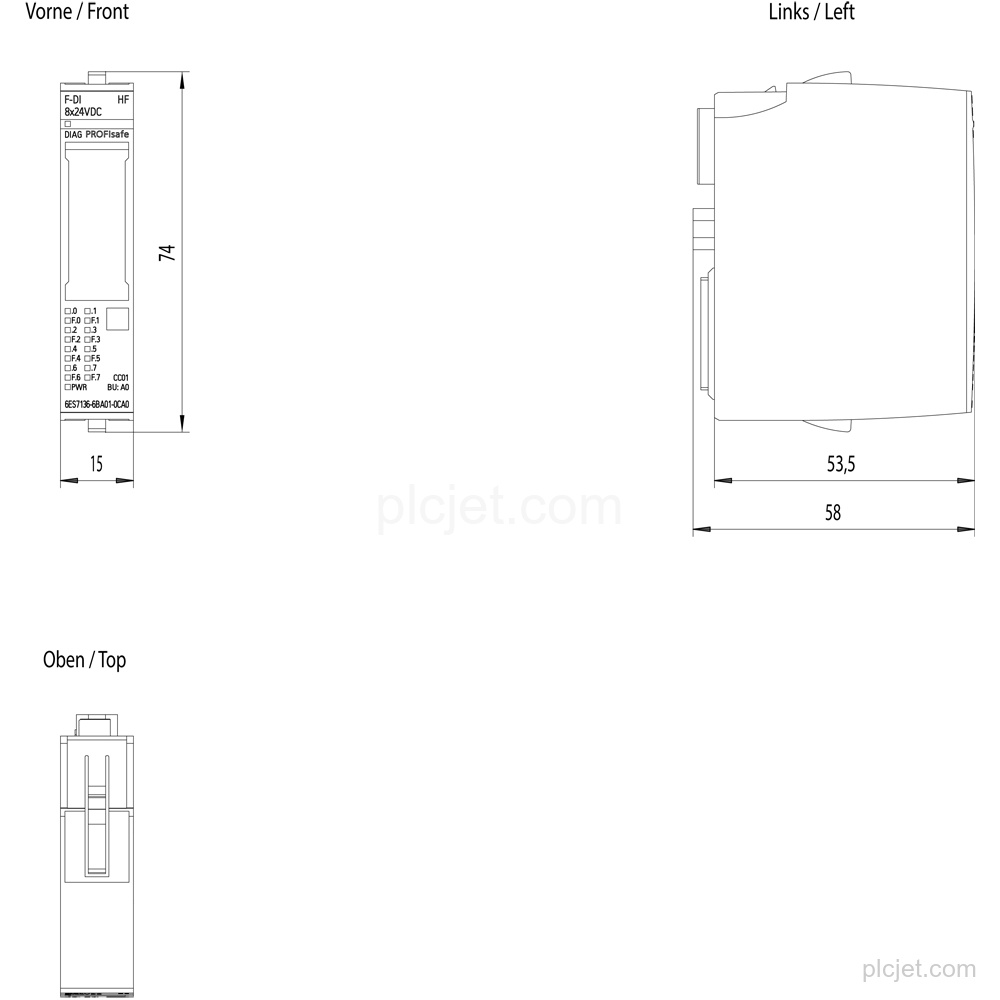

15 mm width; usable BaseUnit is BU type A0. Channels are isolated from the backplane bus, with isolation tested at 707 V DC (type test).
Frequently Asked Questions
What is the exact product type of 6ES7136-6BA01-0CA0?
The product type is F-DI 8x24VDC HF, an electronic module for SIMATIC ET 200SP.
How many digital inputs does this module have?
It has 8 parameterizable digital inputs with a 24 V DC rated input voltage.
What counter functions are supported?
It supports 1 parameterizable counter, pulse counting, standstill and speed monitoring, up to 500 Hz, with up/down counting.
Which BaseUnit is usable?
The usable BaseUnit is BU type A0.
What should be included in a quotation request for this line item?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
