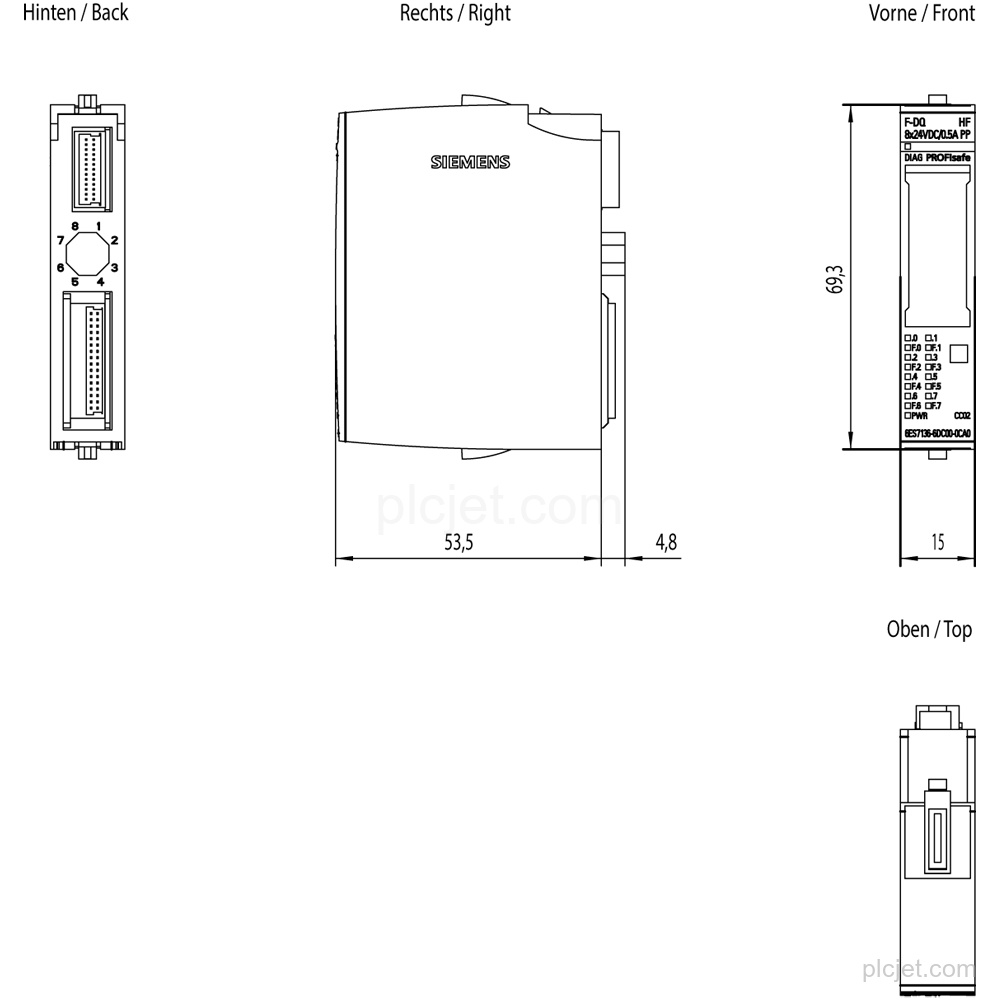

Product Overview
Technical Summary
| Product type | F-DQ 8×24 V DC/0.5 A PP HF |
|---|---|
| Digital outputs | 8; parameterizable transistor outputs |
| Rated output voltage | 24 V DC |
| Rated output current | 0.5 A |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| Output current per channel, max. | 0.5 A; note derating data in the manual |
| Output current per module, max. | 3 A; note derating data in the manual |
| Firmware update | Possible |
| BaseUnits | BU type A0 |
| PROFINET | From GSD version/GSD revision V2.31 |

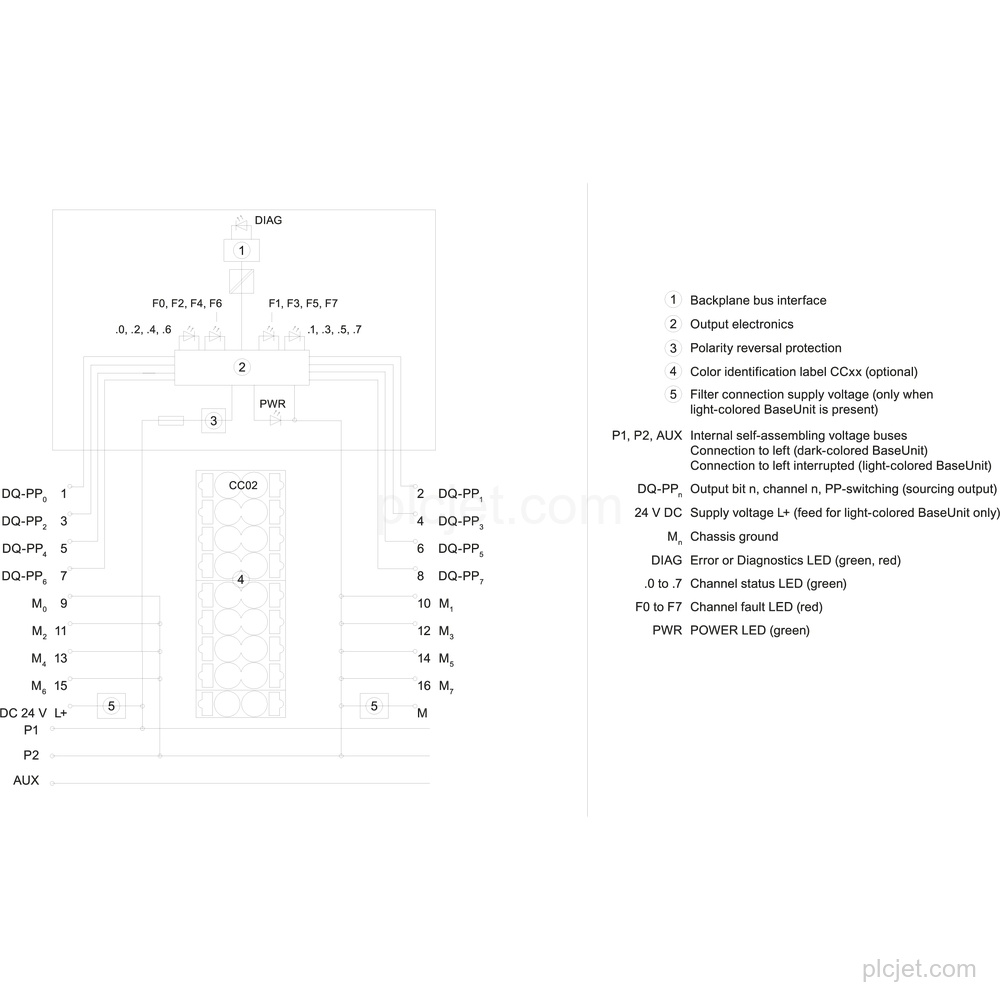

Key Features
8 parameterizable digital transistor outputs.
24 V DC rated output voltage and 0.5 A rated output current.
F-DQ 8×24 V DC/0.5 A PP HF; up to PL E (ISO 13849) and up to SIL 3 (IEC 61508).
24 V DC rated supply voltage, with a permissible range from 19.2 V to 28.8 V DC and reverse polarity protection.
For horizontal installation, maximum total output current is 3 A up to 40 °C, 2.5 A up to 50 °C, and 2 A up to 60 °C; for vertical installation, 2 A up to 50 °C.
Frequently Asked Questions
What is the exact Siemens line item?

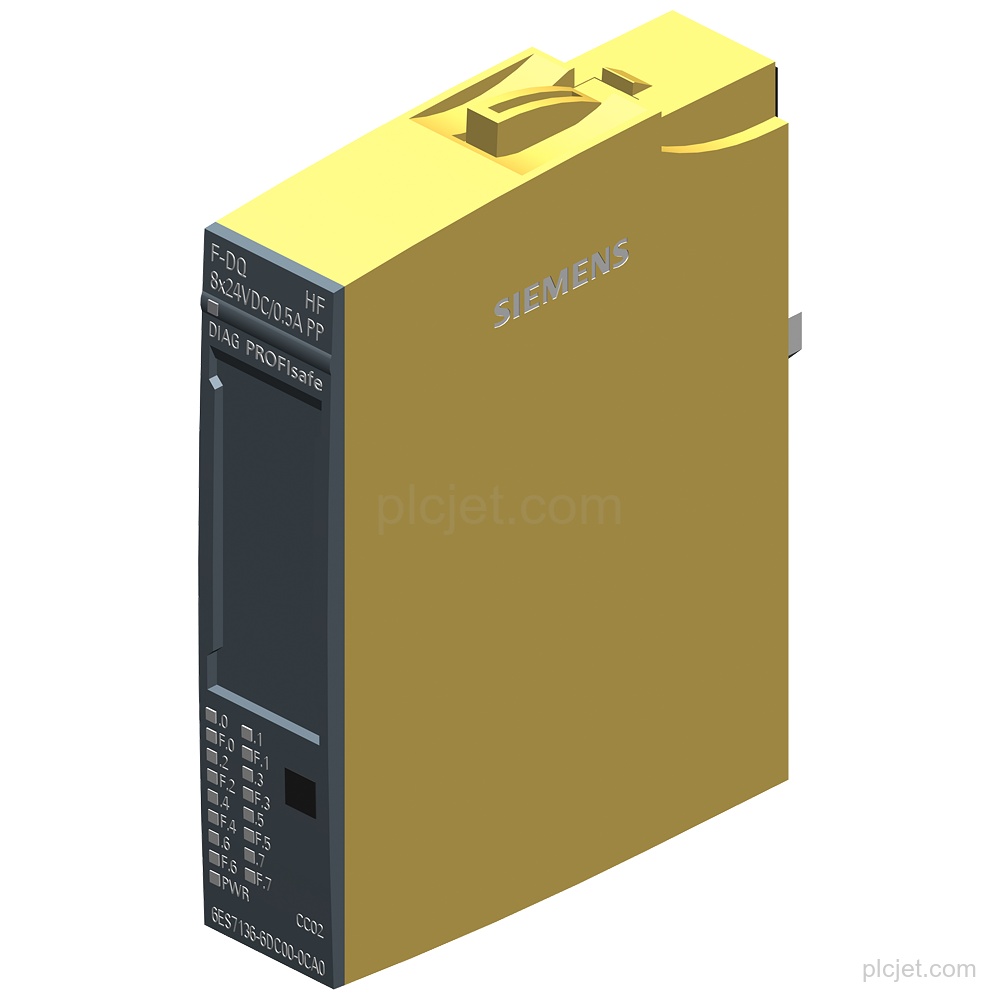

It is the 6ES7136-6DC00-0CA0 SIMATIC ET 200SP F-DQ 8×24 V DC/0.5 A PP HF electronic module.
How many outputs does this module have?
It has 8 parameterizable digital transistor outputs.
What supply and output ratings apply?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC. The rated output voltage is 24 V DC and the rated output current is 0.5 A.
What installation current limits should be retained in the quotation?
For horizontal installation, the maximum total output current is 3 A up to 40 °C, 2.5 A up to 50 °C, and 2 A up to 60 °C. For vertical installation, it is 2 A up to 50 °C.
