Product Overview
Applications
Switching the P1 and P2 voltage buses with a 24 V DC load voltage.
Controlling loads through 2 fail-safe digital outputs.
Use in a PROFINET configuration with IM 151-3 HF.
Technical Summary
| Product type | SIMATIC DP Power Module PM-E F PROFIsafe |
|---|---|
| Load voltage L+ | 24 V DC |
| Fail-safe digital outputs | 2; up to Category 4 (EN 954-1)/SIL3 (IEC61508)/PLE (ISO13849) |
| Output current for signal "1" | Rated value: 2 A; permissible range for 0 to 60 °C: min. 20 mA, max. 2.4 A |
| Output diagnostics | Wire break, short-circuit and missing load voltage |
| Horizontal installation, total output current per group | Max. 10 A up to 40 °C; 7 A up to 55 °C; 6 A up to 60 °C |
Key Features
SIMATIC DP Power Module PM-E F PROFIsafe for switching the voltage buses P1 and P2.
2 fail-safe digital outputs up to Category 4 (EN 954-1), SIL3 (IEC61508) and PLE (ISO13849).
Rated load voltage L+: 24 V DC; reverse polarity protection: No.
Digital outputs have electronic short-circuit protection, with diagnostics for wire break, short-circuit and missing load voltage.
Total output current per group for horizontal installation: max. 10 A up to 40 °C, 7 A up to 55 °C and 6 A up to 60 °C; vertical installation: max. 6 A up to 40 °C.

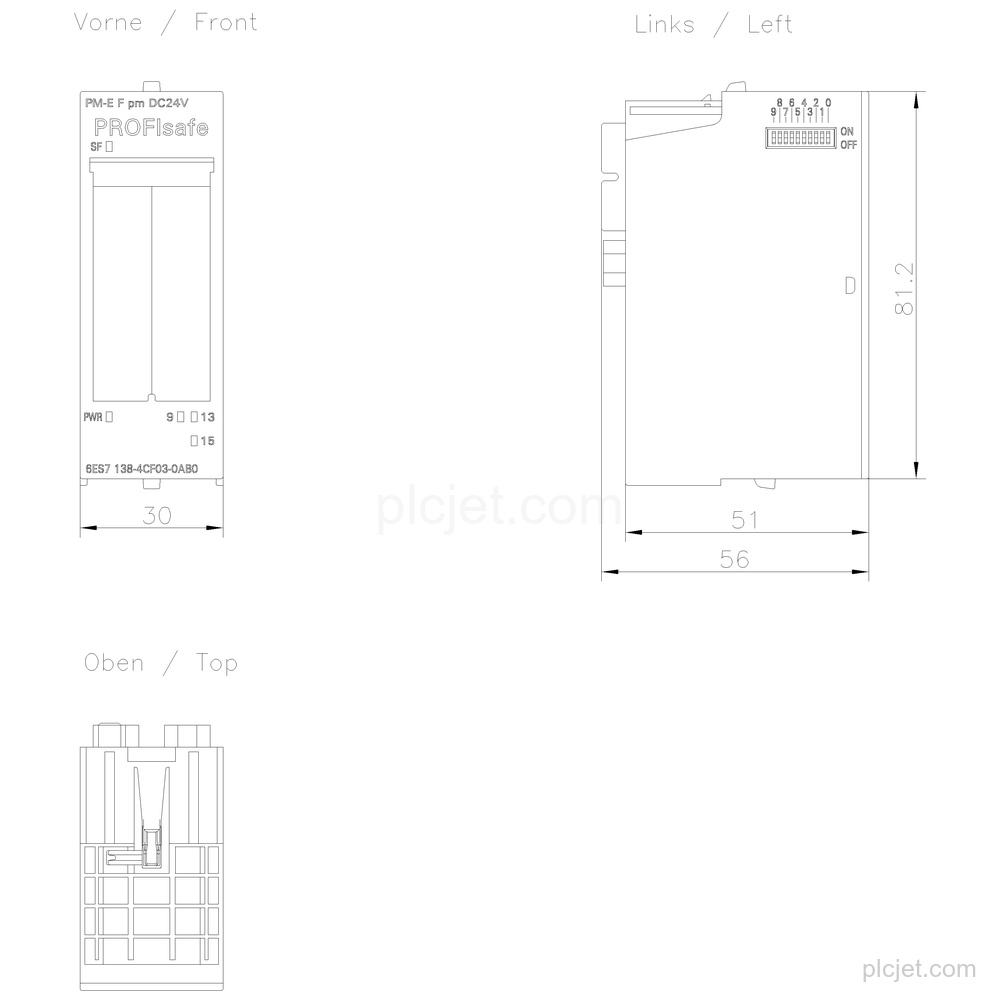

30 mm width, 81 mm height, 52 mm depth and approx. 88 g weight.
Frequently Asked Questions
What is Siemens 6ES7138-4CF03-0AB0?
It is a SIMATIC DP Power Module PM-E F PROFIsafe for switching the P1 and P2 voltage buses.
What load voltage does this power module use?
The rated load voltage L+ is 24 V DC. Reverse polarity protection is No.
How many fail-safe digital outputs does it have?
It has 2 fail-safe digital outputs, up to Category 4 (EN 954-1), SIL3 (IEC61508) and PLE (ISO13849).
What is the maximum total output current for horizontal installation?
Per group, the maximum is 10 A up to 40 °C, 7 A up to 55 °C and 6 A up to 60 °C.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context and any additional BOM lines for quotation handling.
