Product Overview
Technical Summary
| Product | 6ED1055-1MD00-0BA2 |
|---|---|
| Module type | LOGO! AM2 RTD expansion module |
| Analog inputs | 2; 2 or 3 wire connection |
| Supported sensors | Pt100/Pt1000 resistance thermometers |
| Supply | 12 V DC and 24 V DC; 10.8 V DC to 28.8 V DC |
| Typical current consumption | 30 mA |

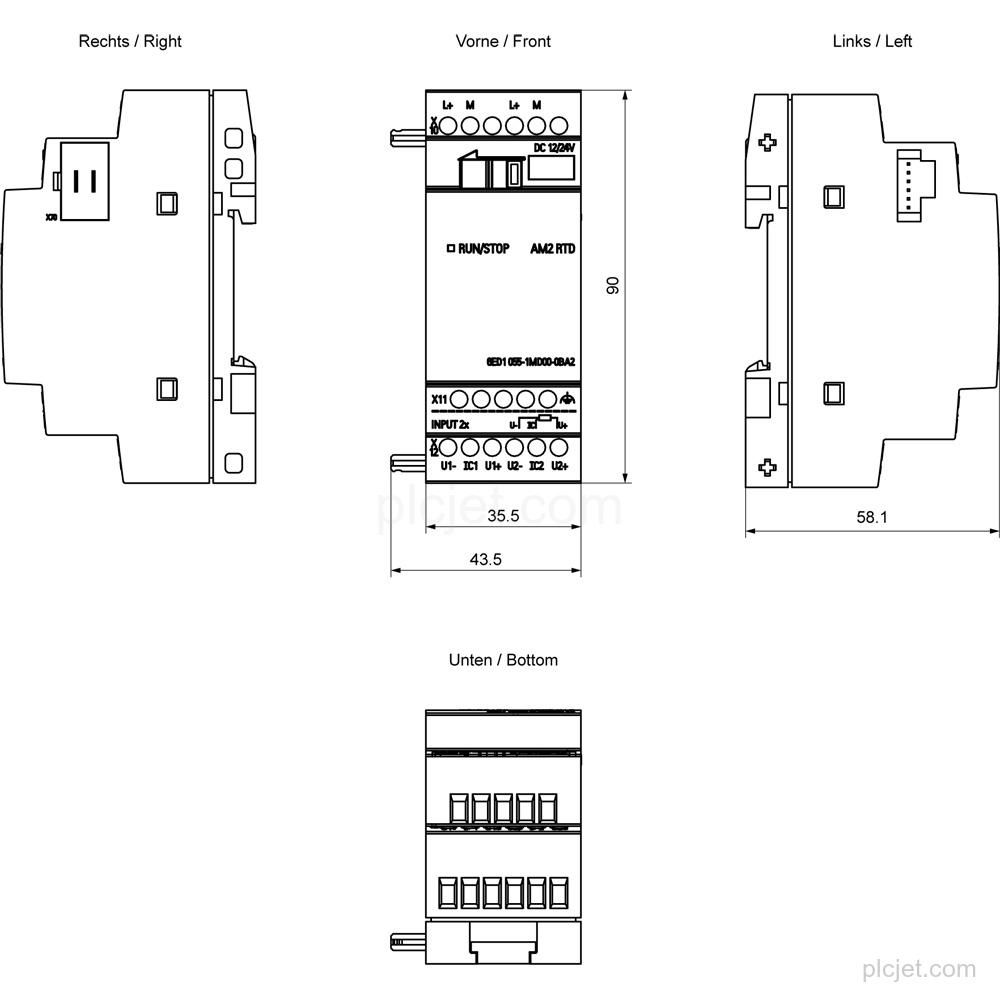

| Mounting | 35 mm DIN rail, 2 spacing units wide |
| Protection | IP20 |
Key Features
RTD analog inputs
Has 2 analog inputs for Pt100/Pt1000 resistance thermometers.
Supply voltage
Supports 12 V DC and 24 V DC, with 10.8 V DC to 28.8 V DC supply ranges.
Sensor connection

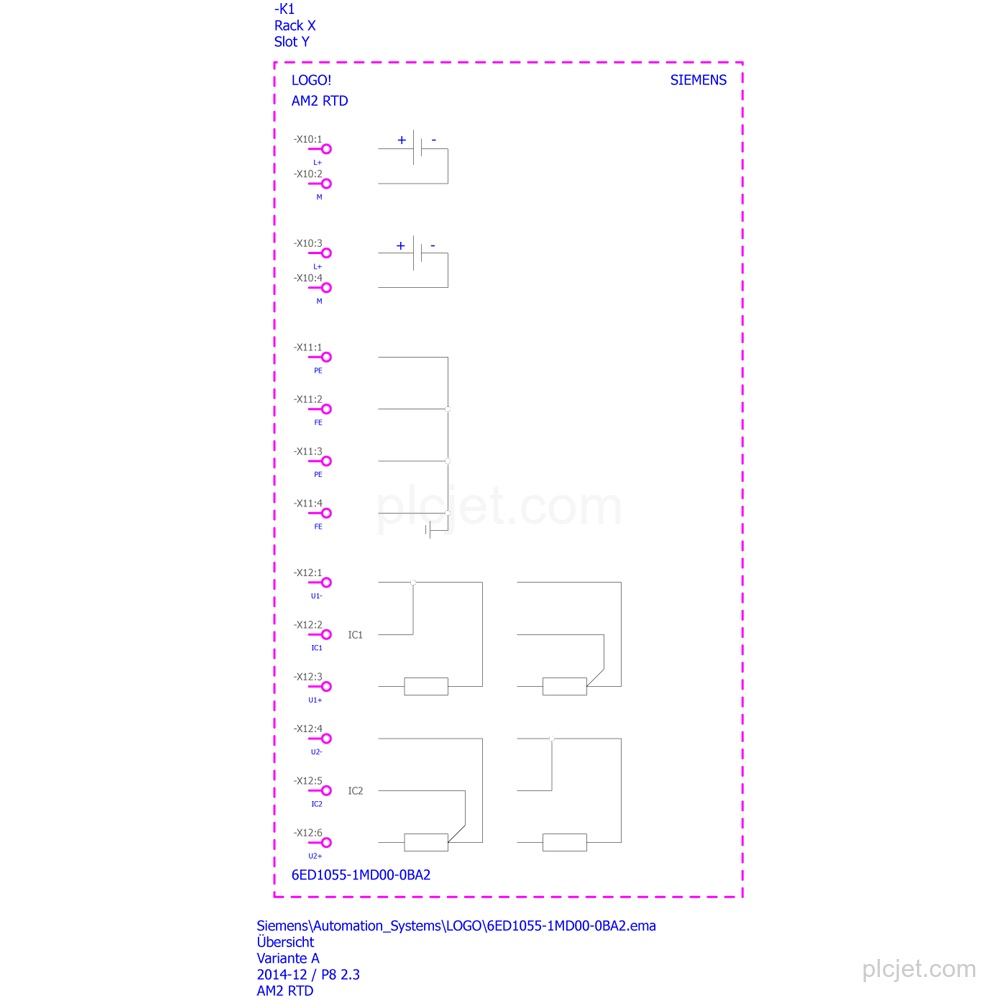

Supports 2-wire or 3-wire connection.
DIN rail mounting
Mounts on a 35 mm DIN rail and occupies 2 spacing units.
Protection rating
Has IP20 degree of protection.
Frequently Asked Questions
What is the exact Siemens line item?
It is the Siemens 6ED1055-1MD00-0BA2 LOGO! AM2 RTD expansion module.
How many analog inputs does the module have?
It has 2 analog inputs with 2-wire or 3-wire connection.
Which sensors does it support?
It supports Pt100/Pt1000 resistance thermometers.
What supply voltage does it use?
It supports 12 V DC and 24 V DC, with 10.8 V DC to 28.8 V DC supply ranges.
