Product Overview
Applications
The integrated digital inputs support HSC technological functions.
The CPU supports controlled positioning and up to 8 position-controlled positioning axes.
The integrated functions include a PID controller.
Technical Summary
| Product type | CPU 1212FC DC/DC/DC |
|---|---|
| Supply | 24 V DC; permissible range 20.4 V to 28.8 V DC |
| Digital inputs | 8; integrated |
| Digital outputs | 6; 20 kHz or 100 kHz |
| PROFINET interfaces | 1; 2 RJ 45 Ethernet ports; 100 Mbit/s maximum |
| Work memory | 700 kbyte; 200 kbyte program and 500 kbyte data |
| Programming package | STEP 7 V21 or higher |
| Protection | IP20 |
Key Features
Product type designation: CPU 1212FC DC/DC/DC.
8 integrated digital inputs and 6 digital outputs; 4 outputs support 100 kHz.
Rated supply: 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
1 PROFINET interface with 2 RJ 45 Ethernet ports and a maximum transmission rate of 100 Mbit/s.
Integrated work memory: 700 kbyte, including 200 kbyte for the program and 500 kbyte for data.
Programming package: STEP 7 V21 or higher.
Frequently Asked Questions
What is the exact product type of 6ES7212-1AF50-0XB0?
It is a SIMATIC S7-1200 G2 fail-safe compact CPU 1212FC DC/DC/DC.
What supply voltage does this CPU use?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.

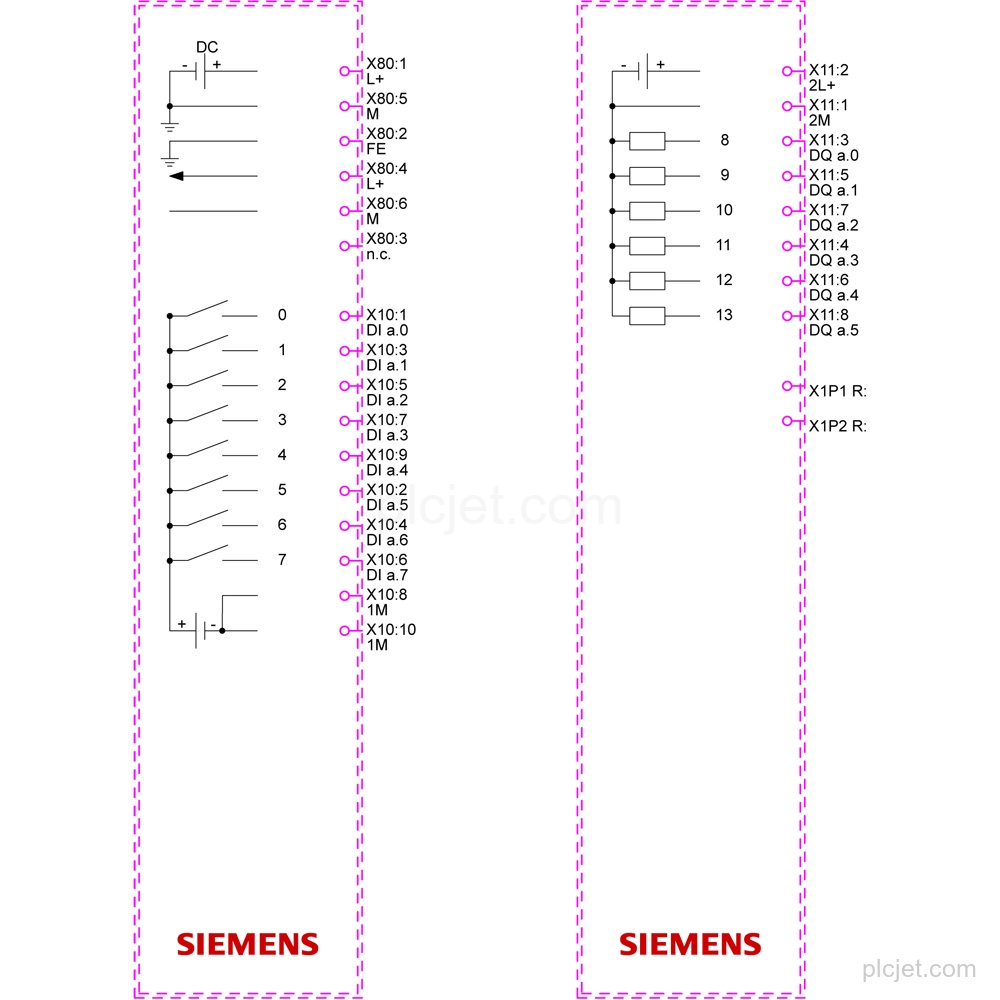

How many digital inputs and outputs are integrated?
It has 8 integrated digital inputs and 6 digital outputs; 4 outputs support 100 kHz.
Which network interface is provided?
It has 1 PROFINET interface with 2 RJ 45 Ethernet ports and a maximum transmission rate of 100 Mbit/s.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
