Product Overview
Applications
Supports Motion Control technology objects, with 800 available Motion Control resources for technology objects.
The 8 integrated digital inputs are usable for technological functions including HSC.
Technical Summary
| Product type | CPU 1212C AC/DC/relay |
|---|---|
| Power supply | AC 85-264 V AC at 47-63 Hz |
| Digital inputs | 8 integrated, 24 V DC |
| Digital outputs | 6 relay outputs; 2 A with resistive load, max. |
| PROFINET | 1 interface; 2 RJ 45 ports; 100 Mbit/s, max. |
| Program memory | 150 kbyte integrated |
| Data memory | 500 kbyte integrated |
| Load memory | 8 Mbyte integrated |
| Firmware | V4.1 |
| Engineering | STEP 7 V21 or higher |
| Protection | IP20 |
Key Features

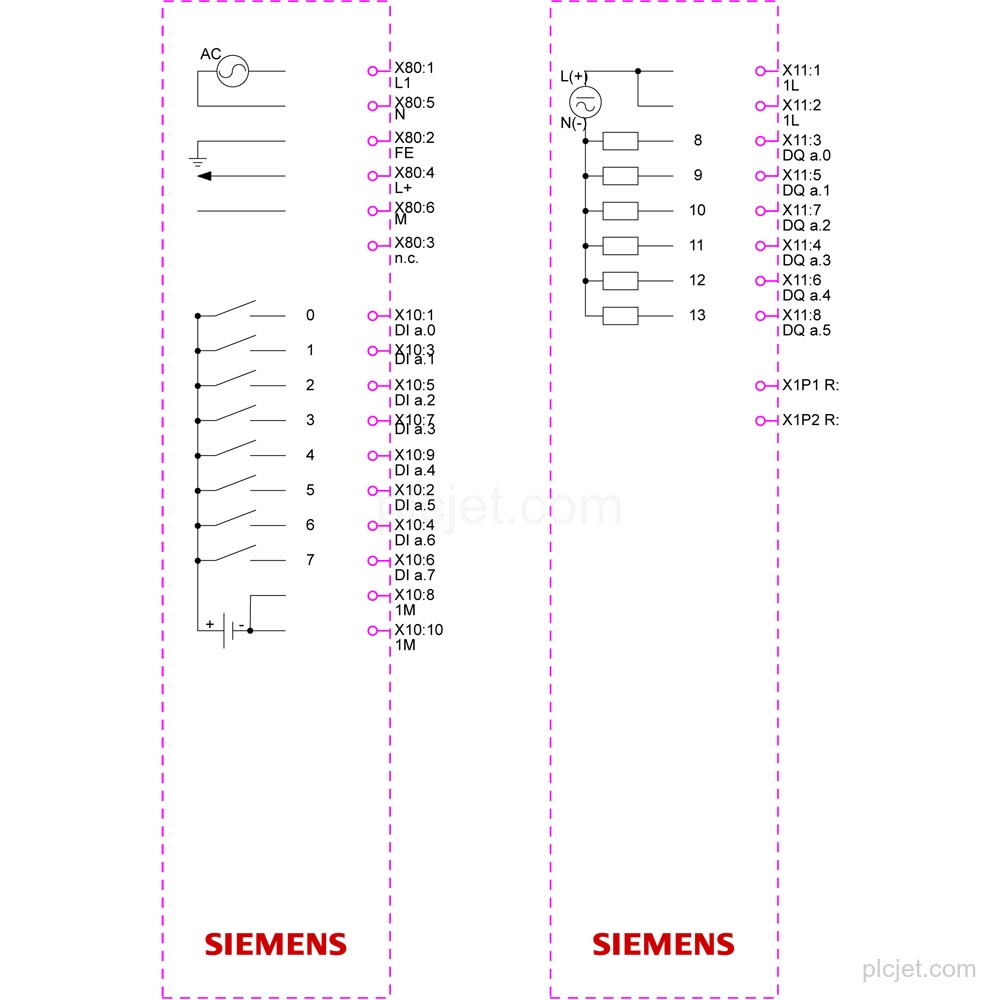

8 integrated 24 V DC digital inputs and 6 relay digital outputs; analog inputs and analog outputs: 0.
AC 85-264 V AC permissible range at 47-63 Hz; rated values include 120 V AC and 230 V AC.
1 PROFINET interface with 2 RJ 45 Ethernet ports, integrated switch, and transmission rate up to 100 Mbit/s.
650 kbyte integrated work memory, including 150 kbyte for the program and 500 kbyte for data; 8 Mbyte load memory.
Firmware version V4.1; firmware updates are possible; programming package: STEP 7 V21 or higher.

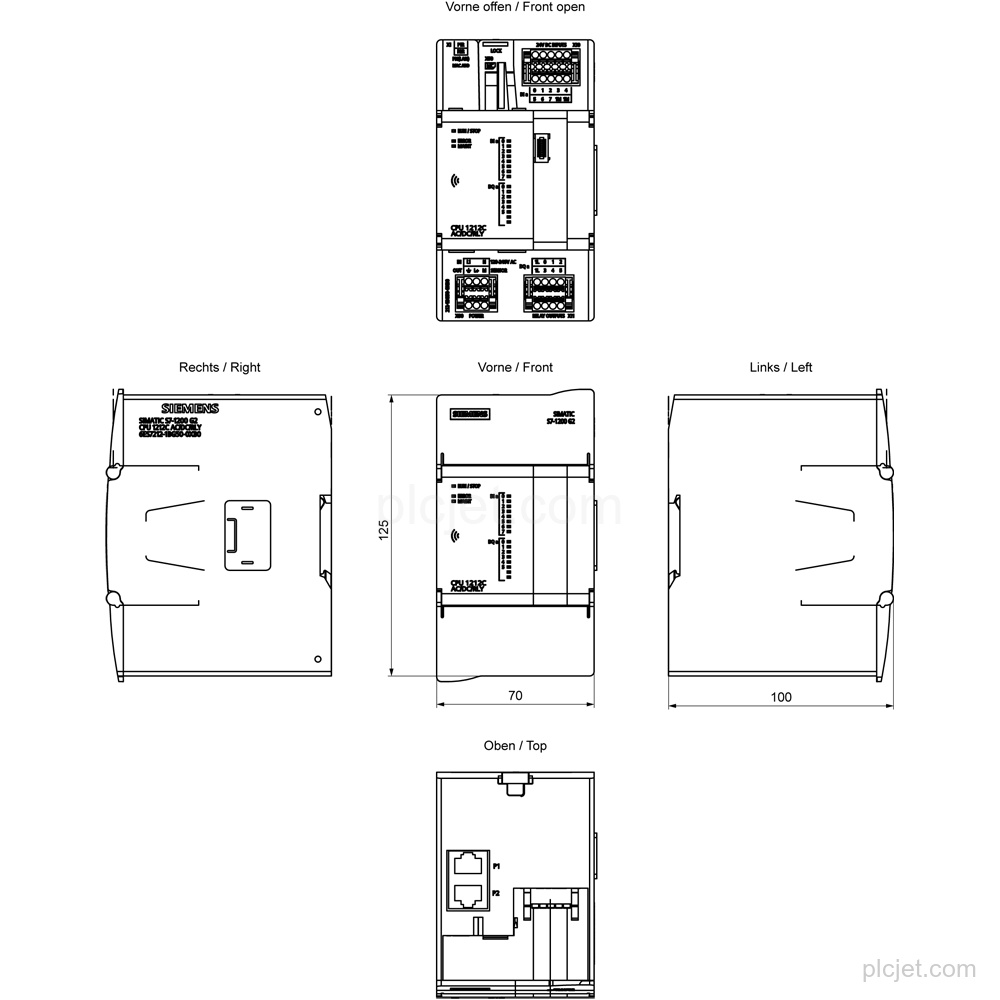

Packaging dimensions: 136.00 x 80.00 x 110.00 mm; net weight: 0.373 kg; IP degree of protection: IP20.
Frequently Asked Questions
What is the exact product variant?
It is Siemens 6ES7212-1BG50-0XB0, CPU 1212C AC/DC/relay.
What I/O does this CPU provide?
It has 8 integrated 24 V DC digital inputs and 6 relay digital outputs. Analog inputs and analog outputs: 0.
Which communication interface is available?
It has 1 PROFINET interface with 2 RJ 45 Ethernet ports and a maximum transmission rate of 100 Mbit/s.
What power supply range does it use?
The permissible AC power-supply range is AC 85-264 V at 47-63 Hz.
Can it be included in a multi-line quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
