Product Overview
Applications
Supports fail-safe compact CPU control tasks.
Supports PROFINET IO Controller and PROFINET IO device functions.
Supports Motion Control technology objects and up to 8 position-controlled positioning axes.
Technical Summary
| Product type | CPU 1212FC DC/DC/Relay |
|---|---|
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |
| Digital inputs | 8; integrated, 24 V DC |
| Digital outputs | 6; relay outputs |
| Relay output capacity | 2 A max.; with resistive load |
| Program memory | 200 KB |
| Data memory | 500 KB |
| PROFINET interfaces | 1; 2 RJ 45 ports |
| Transmission rate | 100 Mbit/s max. |
| Programming package | STEP 7 V21 or higher |
| Product lifecycle | Active Product |
Key Features
CPU 1212FC DC/DC/Relay with integrated fail-safe compact CPU function.

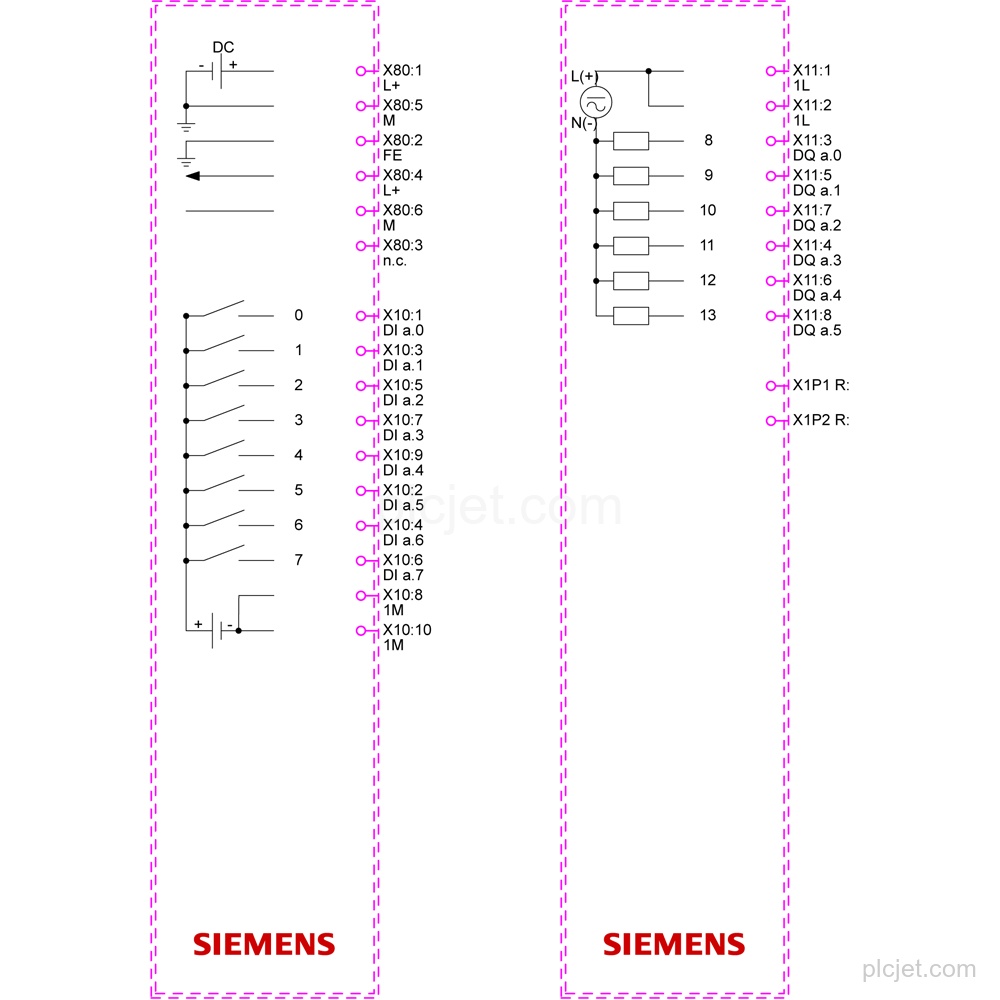

8 integrated 24 V DC digital inputs and 6 relay outputs.
Relay outputs support up to 2 A with resistive load.
200 KB integrated work memory for the program and 500 KB for data.
1 PROFINET interface with 2 RJ 45 ports and transmission rate up to 100 Mbit/s.
Rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Frequently Asked Questions
What exact product is Siemens 6ES7212-1HF50-0XB0?
It is a SIMATIC S7-1200 G2 fail-safe compact CPU 1212FC DC/DC/Relay.
What I/O does this CPU provide?
It has 8 integrated 24 V DC digital inputs and 6 relay outputs.
What supply voltage does the CPU require?
The rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Which interface and programming package are supported?
It has 1 PROFINET interface with 2 RJ 45 ports, and engineering uses STEP 7 V21 or higher.
