Product Overview
Applications
Supports Motion Control technology objects and provides 800 available Motion Control resources for technology objects.
Technical Summary
| Product | SIMATIC S7-1200 G2 fail-safe compact CPU 1214FC DC/DC/DC |
|---|---|
| Supply | DC 20.4 V to 28.8 V DC |
| Digital inputs | 14 integrated; 8 usable for HSC |
| Digital outputs | 10; 4 high-speed outputs at 100 kHz |
| PROFINET | 1 interface; 2 RJ 45 ports; 100 Mbit/s maximum |
| Program work memory | 300 kbyte |
| Data work memory | 750 kbyte |
| Load memory | 8 Mbyte integrated; plug-in SIMATIC Memory Card up to 32 Gbyte |
| Programming | STEP 7 V21 or higher |
| OPC UA | OPC UA Server; "Basic" runtime license required |
| Protection | IP20 |
Key Features
CPU 1214FC DC/DC/DC with fail-safe functionality.

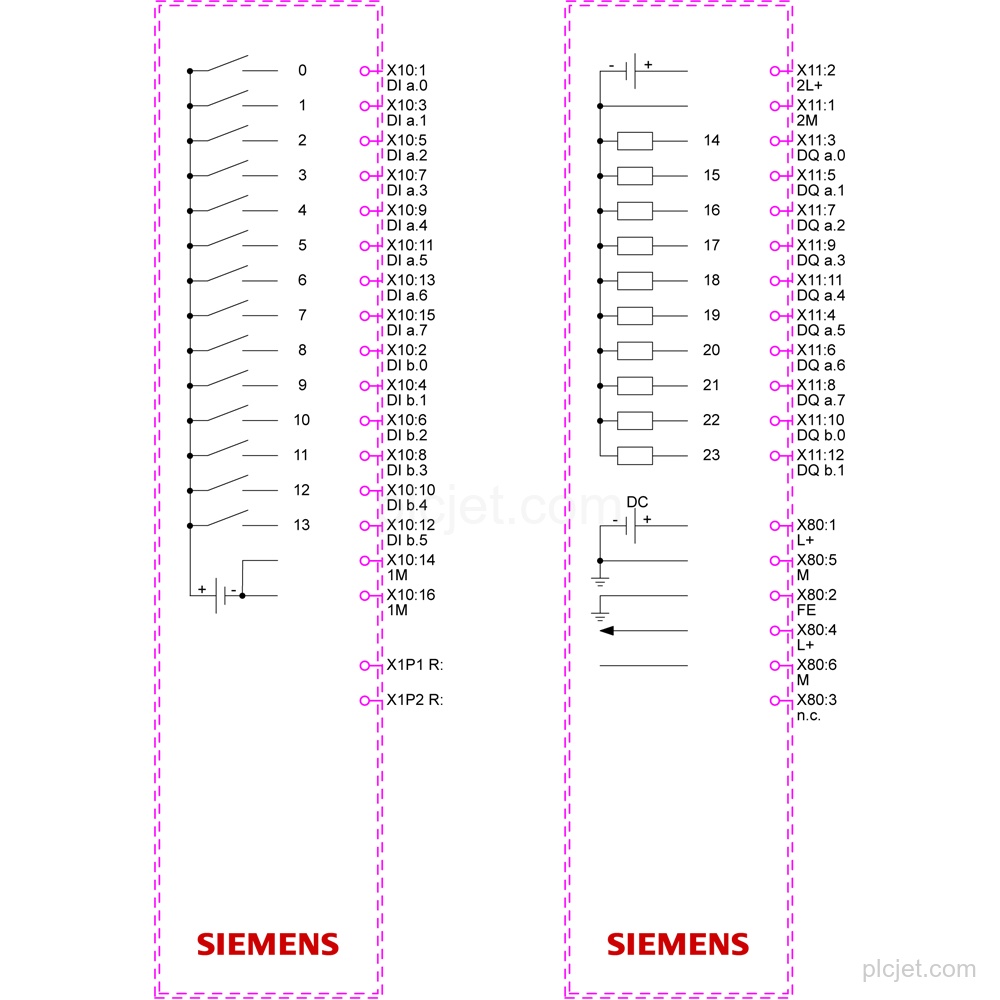

14 digital inputs and 10 digital outputs are integrated.
1 PROFINET interface with 2 RJ 45 ports and a maximum transmission rate of 100 Mbit/s.
300 kbyte integrated work memory for the program, 750 kbyte for data, and 8 Mbyte integrated load memory.
Engineering with STEP 7 V21 or higher.

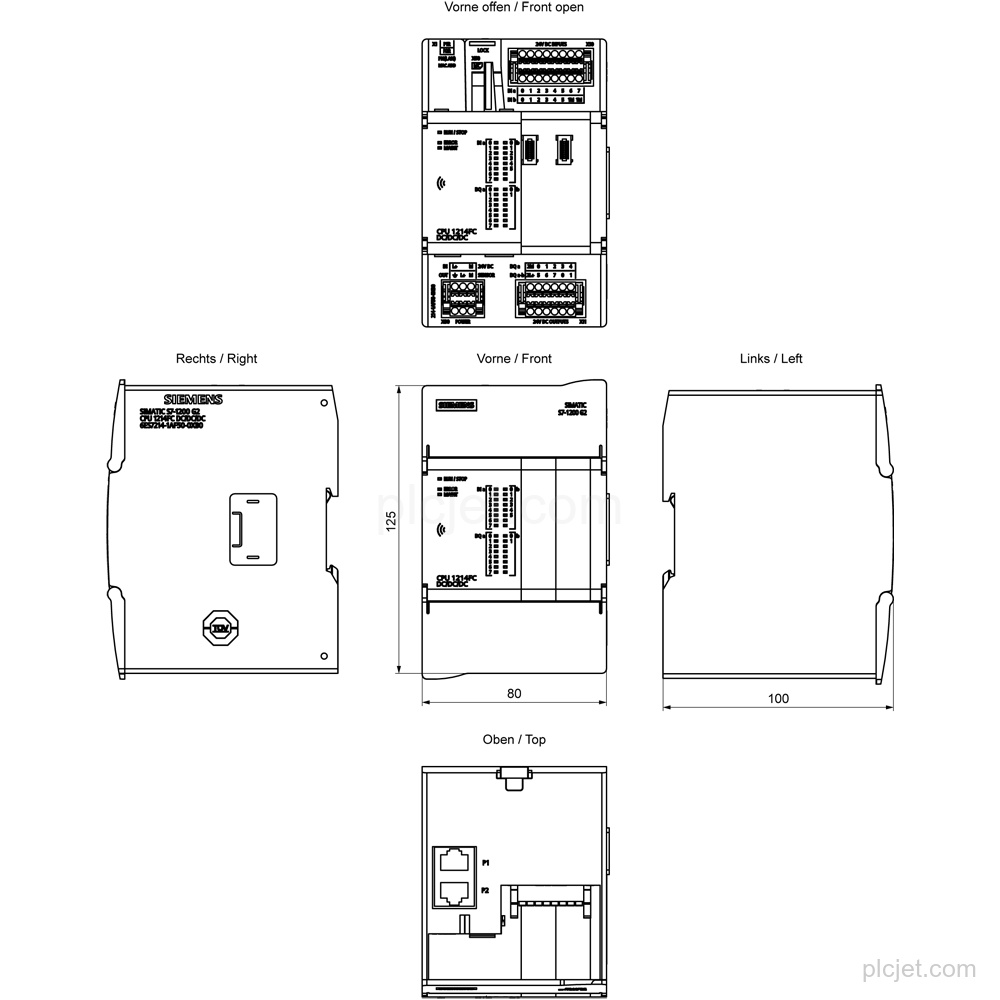

Supply range: DC 20.4 V to 28.8 V DC. Packaging dimensions: 136.00 x 90.00 x 110.00 mm; net weight: 0.352 kg.
Frequently Asked Questions
What is the exact CPU variant?
It is CPU 1214FC DC/DC/DC, order number 6ES7214-1AF50-0XB0.
What supply range does this CPU use?
Supply: DC 20.4 V to 28.8 V DC.
How many integrated digital inputs and outputs are available?
It has 14 digital inputs and 10 digital outputs; 4 outputs are high-speed outputs at 100 kHz.
Which interface and programming package are supported?
It has 1 PROFINET interface with 2 RJ 45 ports and supports STEP 7 V21 or higher.
