Product Overview
Applications
Supports controlled positioning with up to 8 position-controlled positioning axes.
Supports Motion Control technology objects with 800 available Motion Control resources.
Technical Summary
| Order number | 6ES7214-1HH50-0XB0 |
|---|---|
| Product type | CPU 1214C DC/DC/Relay |
| Supply | 24 V DC; permissible range 20.4 V to 28.8 V DC |
| Digital inputs | 14; 24 V DC; 8 usable for technological functions |
| Relay outputs | 10; maximum 2 A with resistive load |
| Program memory | 250 kbyte |
| Data memory | 750 kbyte |
| PROFINET interfaces | 1; two RJ 45 (Ethernet) ports; maximum 100 Mbit/s |
| Position-controlled positioning axes | 8 maximum |
| Protection | IP20 |
Key Features
SIMATIC S7-1200 G2 CPU with a 24 V DC rated supply and a permissible range of 20.4 V to 28.8 V DC.

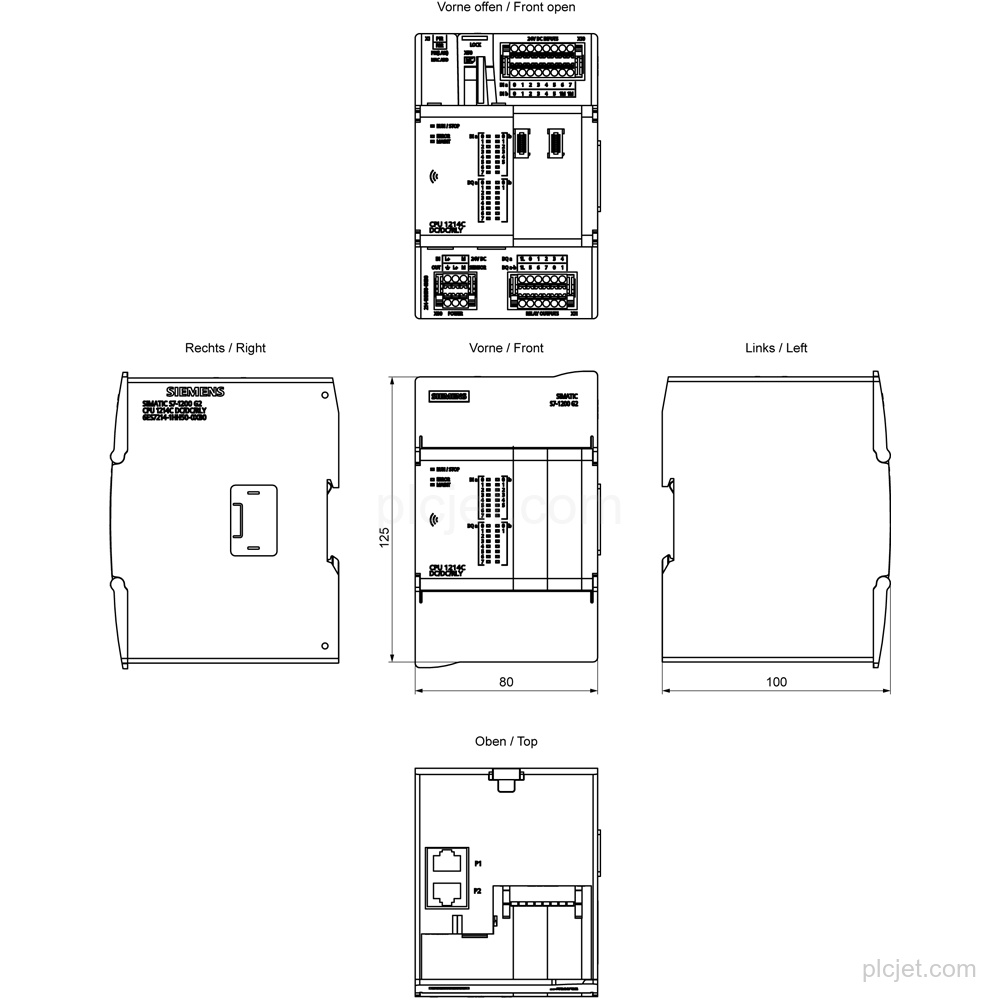

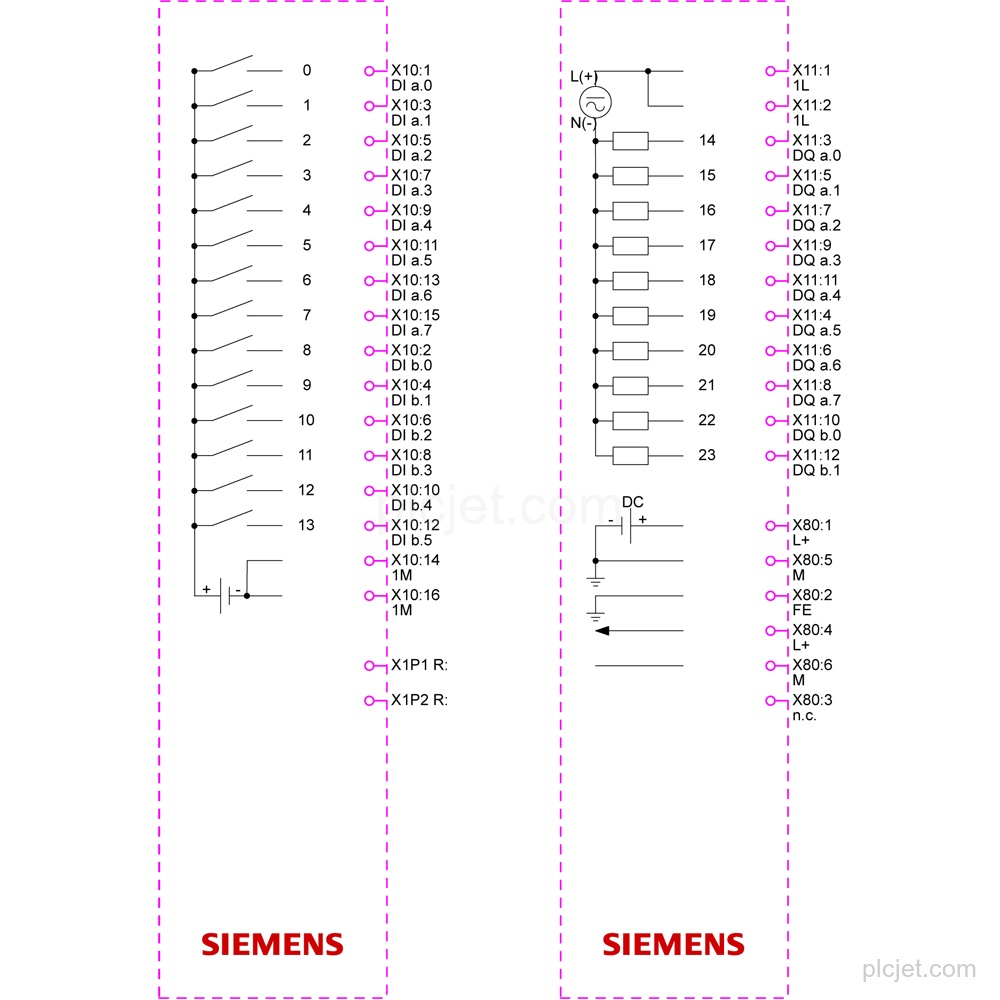

14 integrated digital inputs rated at 24 V DC and 10 relay outputs; maximum switching capacity is 2 A with resistive load.
Integrated work memory provides 250 kbyte for the program and 750 kbyte for data; retentive data area is 20 kbyte.
One PROFINET interface with two RJ 45 (Ethernet) ports, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
Controlled positioning is supported with up to 8 position-controlled positioning axes and 8 pulse outputs.
Engineering uses STEP 7 V21 or higher. Product lifecycle: Active Product.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7214-1HH50-0XB0?
It is a SIMATIC S7-1200 G2 CPU 1214C DC/DC/Relay.
What I/O is integrated in this CPU?
It has 14 integrated digital inputs rated at 24 V DC and 10 relay outputs. The maximum switching capacity is 2 A with resistive load.
What PROFINET interface does it provide?
It has 1 PROFINET interface with two RJ 45 (Ethernet) ports, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
What memory is available?
Program memory is 250 kbyte and data memory is 750 kbyte. The retentive data area is 20 kbyte.
