Product Overview
Applications

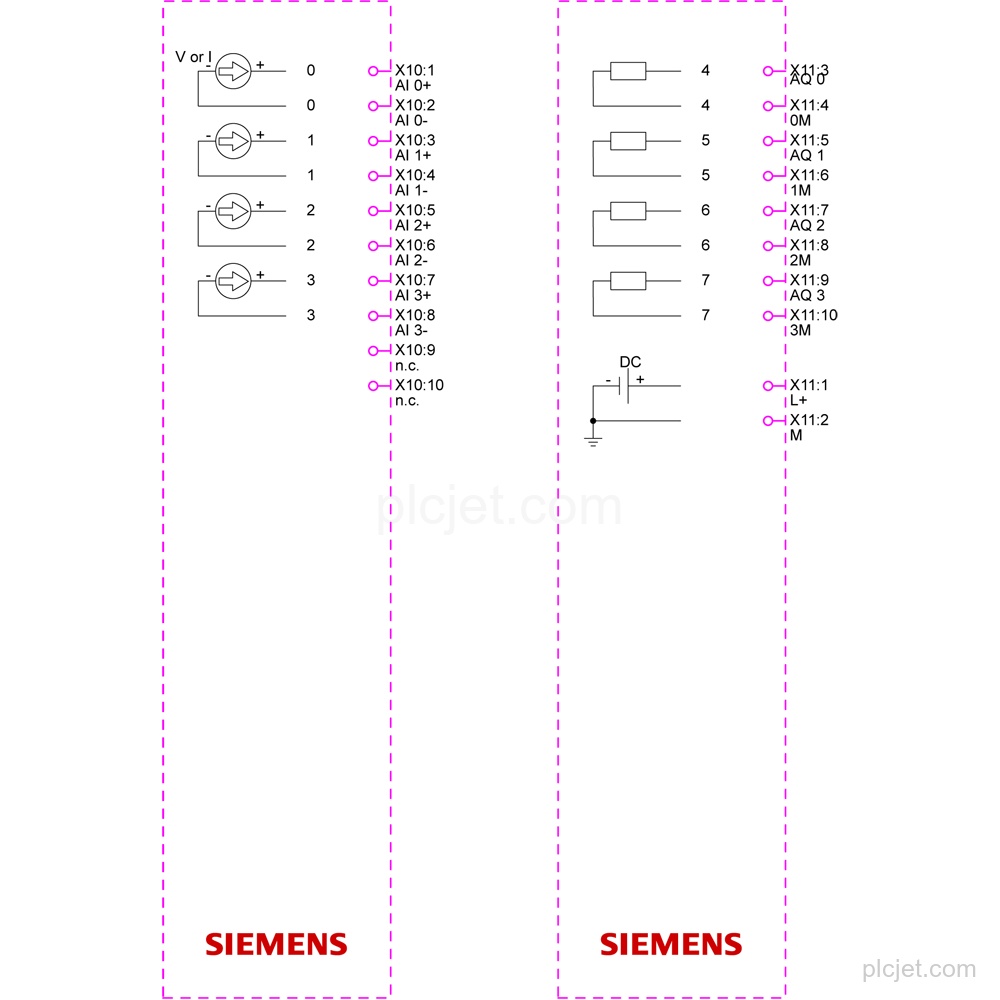

Measures analog voltage and current signals through 4 analog inputs.
Generates analog voltage and current values through 4 analog outputs.
Technical Summary
| Product type | SM 1233, AI 4x 14 bit/AQ 4x 14 bit |
|---|---|
| Analog inputs | 4; Current or voltage differential inputs |
| Analog outputs | 4; Current or voltage |
| Input ranges | ±10 V, ±5 V, ±2.5 V; 0 to 20 mA; 4 to 20 mA |
| Output ranges | -10 V to +10 V; 0 to 20 mA; 4 mA to 20 mA |
| Supply voltage | 24 V DC; 20.4 V to 28.8 V DC permissible range |
| Input cycle time | 0.625 ms max.; at 400 Hz rejection |
| Output load impedance | 1 000 Ω min. with voltage outputs; 600 Ω max. with current outputs |
| Resolution | 14 bit; Voltage: 14 bit; Current: 13 bit |
| Protection | IP20 |
Key Features
4 analog inputs and 4 analog outputs; product type designation: SM 1233, AI 4x 14 bit/AQ 4x 14 bit.
Voltage inputs: ±10 V, ±5 V, ±2.5 V; current inputs: 0 to 20 mA and 4 to 20 mA.
Voltage outputs: -10 V to +10 V; current outputs: 0 to 20 mA and 4 mA to 20 mA.
Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
Diagnostics function, diagnostic alarm, supply-voltage monitoring, wire-break and short-circuit diagnoses, DIAG LED, and IP20 protection.

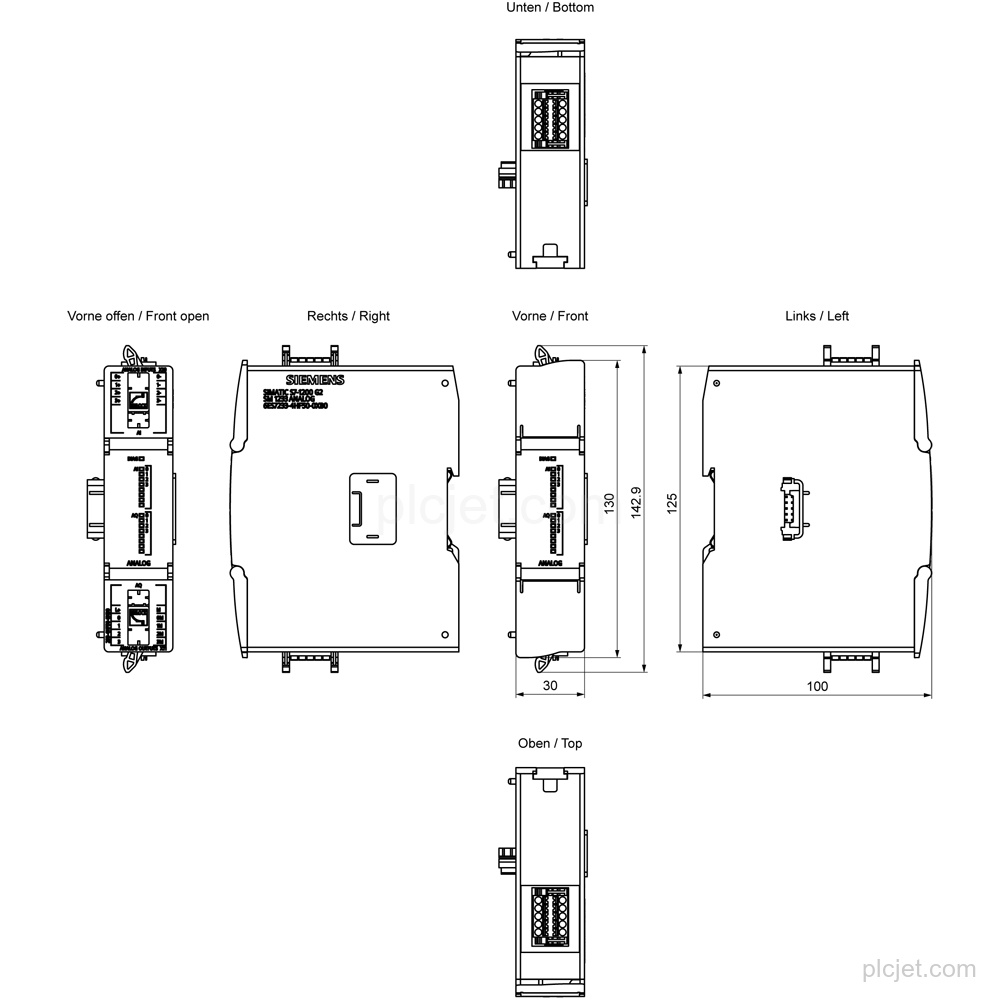

Packaging dimensions: 150.00 x 47.00 x 110.00 mm; net weight: 0.174 kg.
Frequently Asked Questions
What is the exact product type of 6ES7233-4HF50-0XB0?
It is an SM 1233 analog I/O module with AI 4x 14 bit and AQ 4x 14 bit.
How many analog inputs and outputs does this configuration have?
It has 4 analog inputs and 4 analog outputs.
What supply voltage does the module use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
Which analog signal ranges are supported?
Inputs support ±10 V, ±5 V, ±2.5 V, 0 to 20 mA, and 4 to 20 mA. Outputs support -10 V to +10 V, 0 to 20 mA, and 4 mA to 20 mA.
