Product Overview
Technical Summary
| Product type | SM 1232, AQ 4×14 bit |
|---|---|
| Analog outputs | 4; Current or voltage |
| Output ranges | Voltage: -10 V to +10 V; current: 0 to 20 mA |
| Resolution | 14 bit; Voltage: 14 bit; Current: 13 bit |
| Rated supply voltage | 24 V DC |
| Load impedance | Voltage outputs, min.: 1 000 Ω; current outputs, max.: 600 Ω |
| Protection | IP20 |
Key Features
4 analog outputs; current or voltage.
Voltage: -10 V to +10 V; current: 0 to 20 mA.
14 bit maximum; voltage: 14 bit; current: 13 bit.
Rated supply voltage: 24 V DC.
Voltage outputs: 1 000 Ω minimum; current outputs: 600 Ω maximum.
Diagnostics function, diagnostic alarm, supply-voltage monitoring, wire-break detection, short-circuit detection, and IP20 protection.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7232-4HD32-0XB0?

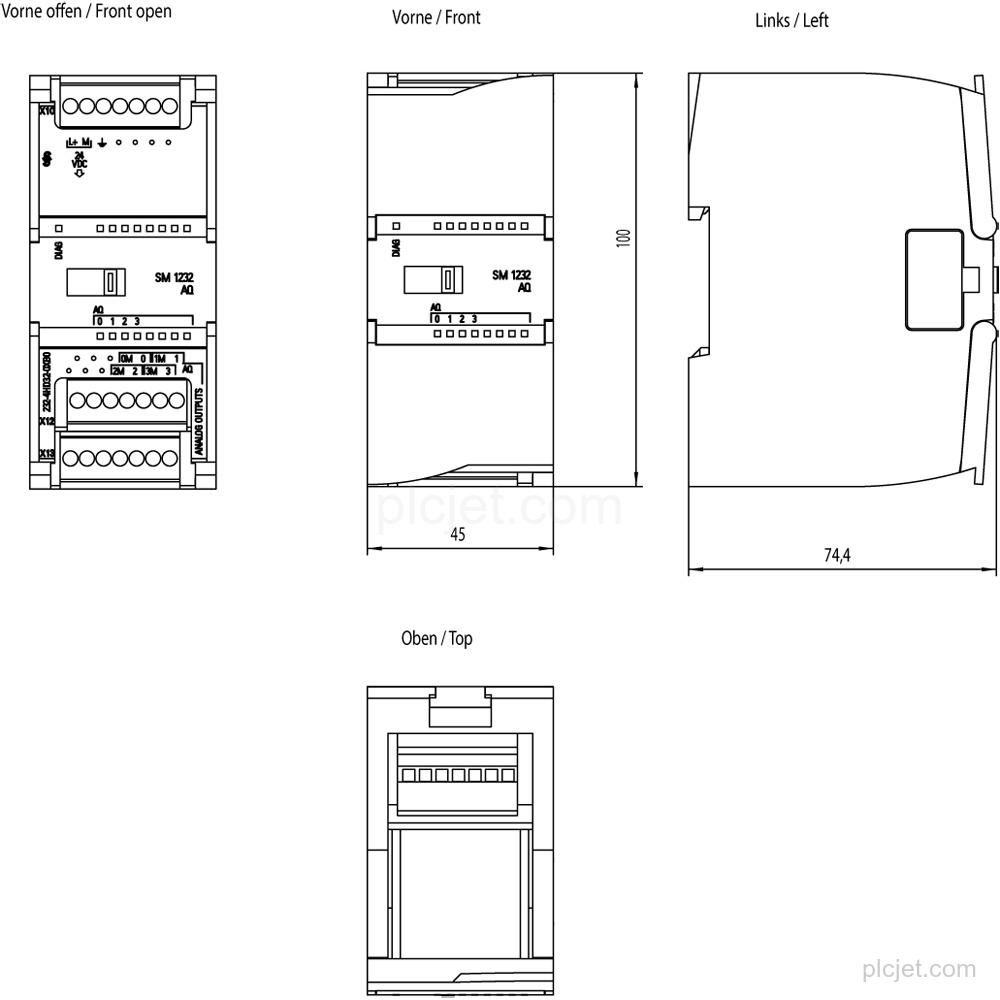

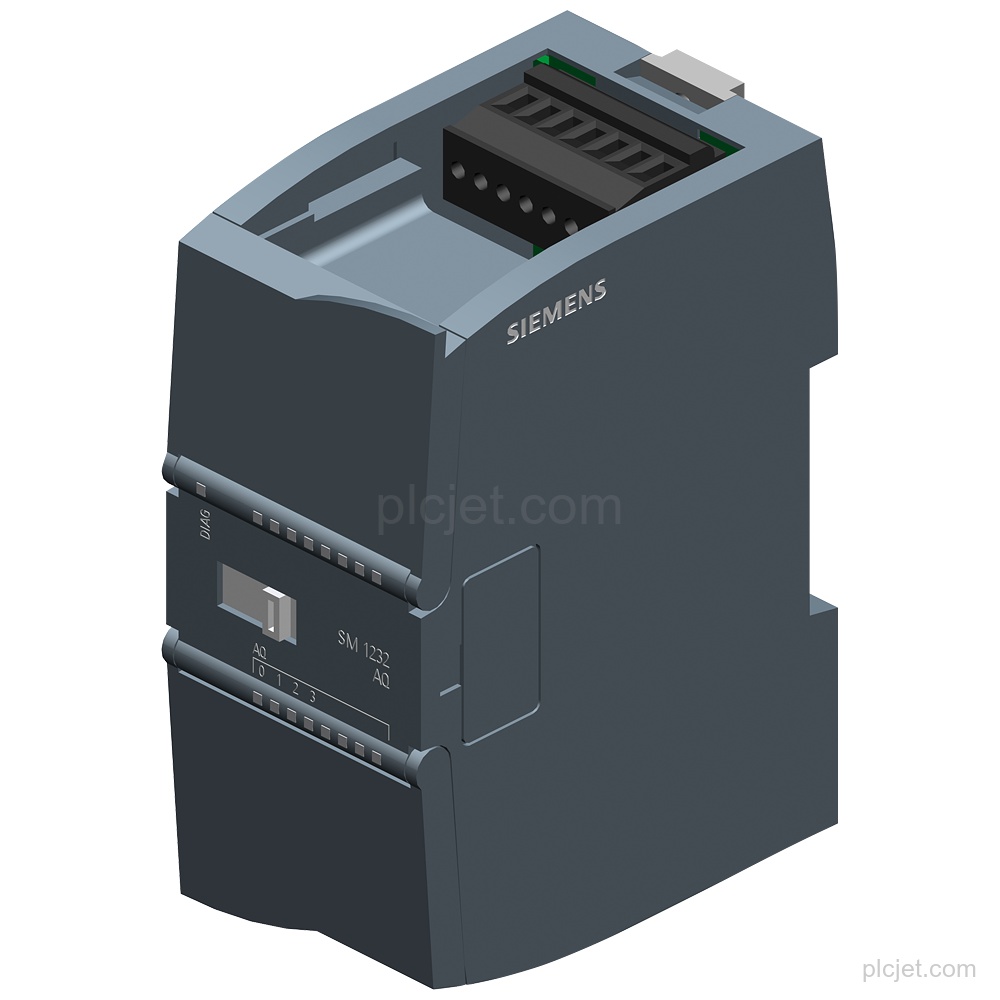

It is an SM 1232, AQ 4×14 bit analog output module.
How many analog outputs does this module have?

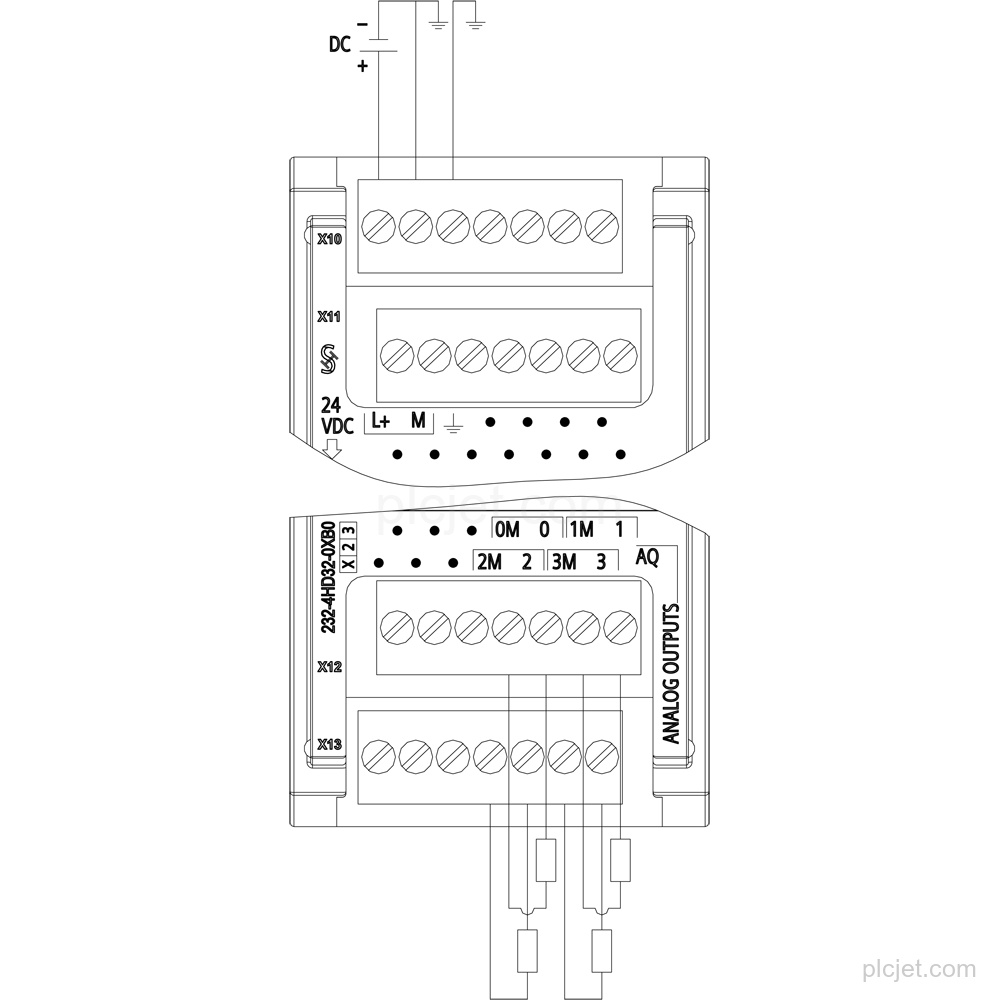

It has 4 analog outputs for current or voltage.
What output ranges and resolution are supported?
Voltage output is -10 V to +10 V with 14-bit resolution; current output is 0 to 20 mA with 13-bit resolution.
What load impedance applies to the outputs?
Voltage outputs require at least 1 000 Ω; current outputs support up to 600 Ω.
What information should I provide for a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
