Product Overview
Technical Summary
| Product type | PS 60 W 120/230 V AC/DC |
|---|---|
| Backplane bus infeed power | 60 W |
| Rated supply voltage (AC) | 120 V / 230 V |
| Rated supply voltage (DC) | 120 V / 230 V |
| Permissible line frequency | 47 Hz to 63 Hz |
| Mains/voltage failure stored energy time | 20 ms |
| Operating ambient temperature | -25 °C to 60 °C; up to FS04: 0 °C minimum |
| Maximum installation altitude | 2 000 m above sea level |
| Lifecycle | Active Product |
Key Features
PS 60 W 120/230 V AC/DC for the SIMATIC S7-1500 system.
Supplies the S7-1500 backplane bus with operating voltage and provides 60 W infeed power.
Rated value: 120 V / 230 V AC and 120 V / 230 V DC.
Permissible line frequency range: 47 Hz to 63 Hz.
Short-circuit protection, primary/secondary potential separation, and equipment protection class I with protective conductor.

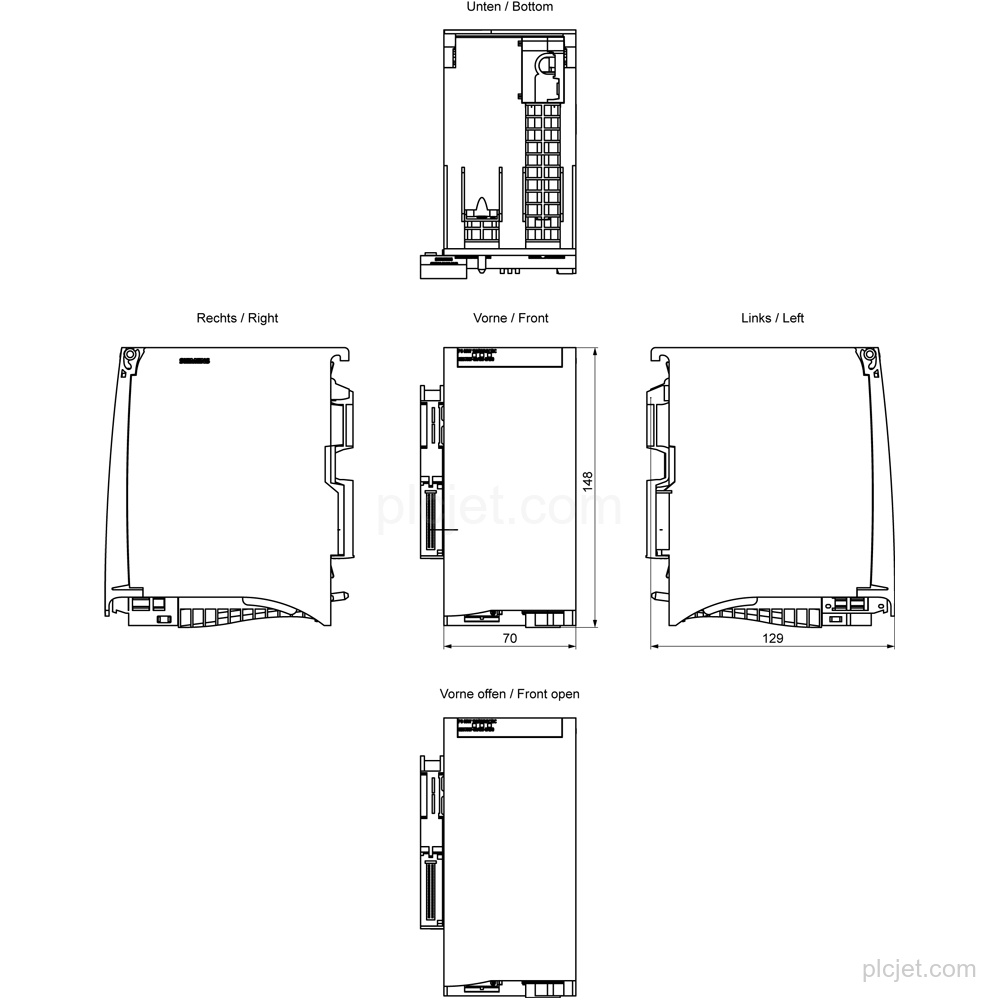

Dimensions: 70 mm width, 147 mm height, and 129 mm depth.
Frequently Asked Questions
What is the exact product type of 6ES7507-0RA00-0AB0?
It is a PS 60 W 120/230 V AC/DC SIMATIC S7-1500 system power supply.
What power does this system power supply provide to the backplane bus?
It provides 60 W infeed power to the backplane bus.
What supply voltage and frequency range does it support?
The rated supply voltage is 120 V / 230 V AC and 120 V / 230 V DC. The permissible line frequency range is 47 Hz to 63 Hz.
What are the dimensions and installation altitude limit?
The dimensions are 70 mm x 147 mm x 129 mm, and the maximum installation altitude is 2 000 m above sea level.
