Product Overview
Technical Summary
| Product type | CPU 1511TF-1 PN |
|---|---|
| Program work memory | 450 kbyte |
| Data work memory | 1.5 Mbyte |
| Bit performance | 6 ns |
| PROFINET interface | PROFINET IRT; 2-port integrated switch |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| SIMATIC Memory Card | Required; 1 slot; up to 32 Gbyte load memory |
| Maximum PROFINET IO Devices | 128 |
Key Features
CPU 1511TF-1 PN with 6 ns bit performance, 450 kbyte integrated work memory for the program, and 1.5 Mbyte for data.
1st interface: PROFINET IRT with 2-port integrated switch, 2 RJ 45 Ethernet ports, and 1 PROFINET interface.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is included.
1 SIMATIC Memory Card slot is available, and a SIMATIC Memory Card is required. Plug-in load memory is up to 32 Gbyte.
Supports PROFINET IO Controller, PROFINET IO Device, PROFIsafe V2.4 / V2.6, OPC UA, MODBUS TCP, and Open IE communication.

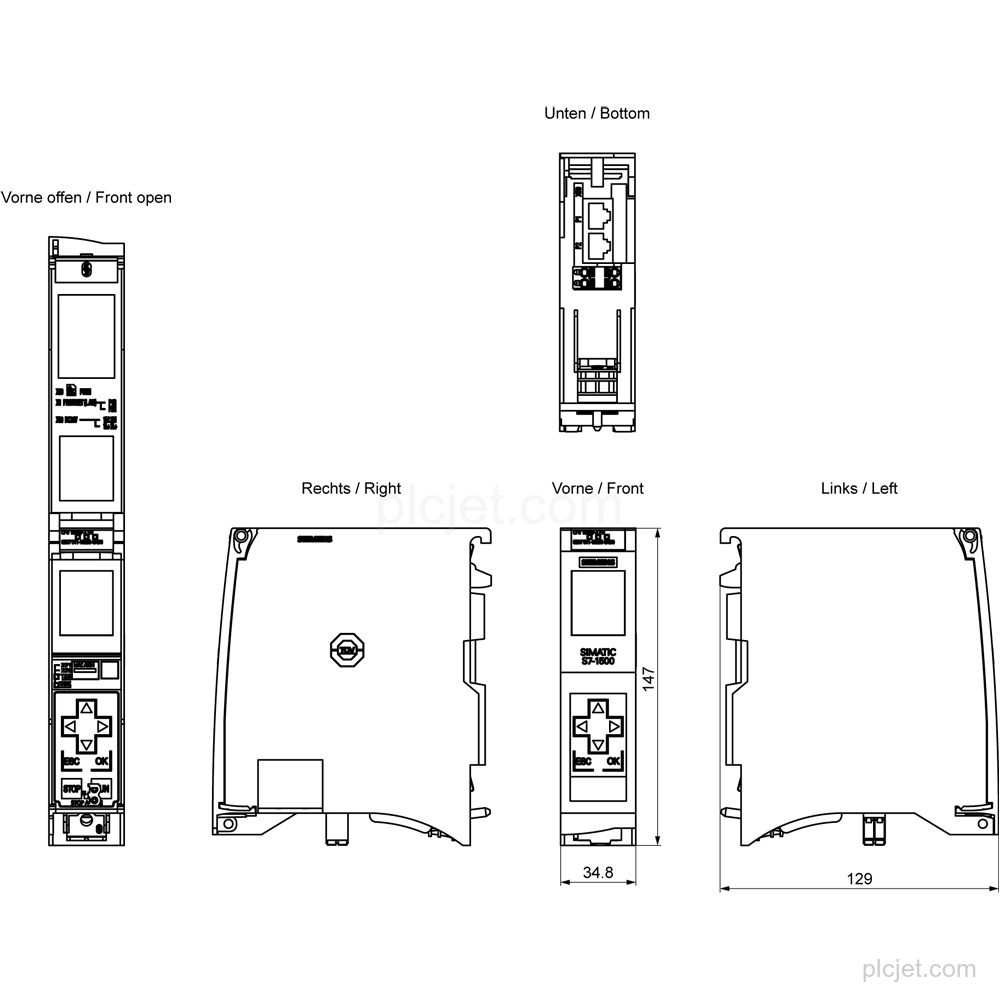

Product lifecycle: Active Product. Packaging dimensions: 14.80 x 15.20 x 4.50 cm; net weight: 0.380 kg.
Frequently Asked Questions
What exact CPU is this line item?
It is the Siemens SIMATIC S7-1500T CPU 1511TF-1 PN, order number 6ES7511-1UL03-0AB0.
What memory does the CPU provide?
It has 450 kbyte integrated work memory for the program and 1.5 Mbyte for data. A SIMATIC Memory Card is required for load memory.
What interface and protocols are provided?
The 1st interface is PROFINET IRT with a 2-port integrated switch and 2 RJ 45 Ethernet ports. Supported protocols include PROFINET IO, PROFIsafe V2.4 / V2.6, OPC UA, MODBUS TCP, and Open IE communication.
What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
