Product Overview
Applications
Supports Motion Control technology objects, with 2 400 available Motion Control resources.
Technical Summary
| Product type | CPU 1515-2 PN |
|---|---|
| Program work memory | 500 KB |
| Data work memory | 3 MB |
| PROFINET interfaces | 2; X1 PROFINET IRT with 2-port switch and X2 PROFINET RT |
| Bit operation processing time | 30 ns, typ. |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| SIMATIC Memory Card | Required; 1 slot; plug-in load memory up to 32 Gbyte |
| Firmware version | V2.9 |
| Product lifecycle | Product cancellation |
Key Features
CPU 1515-2 PN with 500 KB integrated work memory for the program and 3 MB for data; a SIMATIC Memory Card is required.
2 PROFINET interfaces: X1 with PROFINET IRT and a 2-port switch, and X2 with PROFINET RT.
Typical bit operation processing time: 30 ns.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is included.
Configurable or integrated with STEP 7 TIA Portal from V17 with FW V2.9, or V16 with FW V2.8 and higher.
Product cancellation.
Frequently Asked Questions
What is the exact product variant?

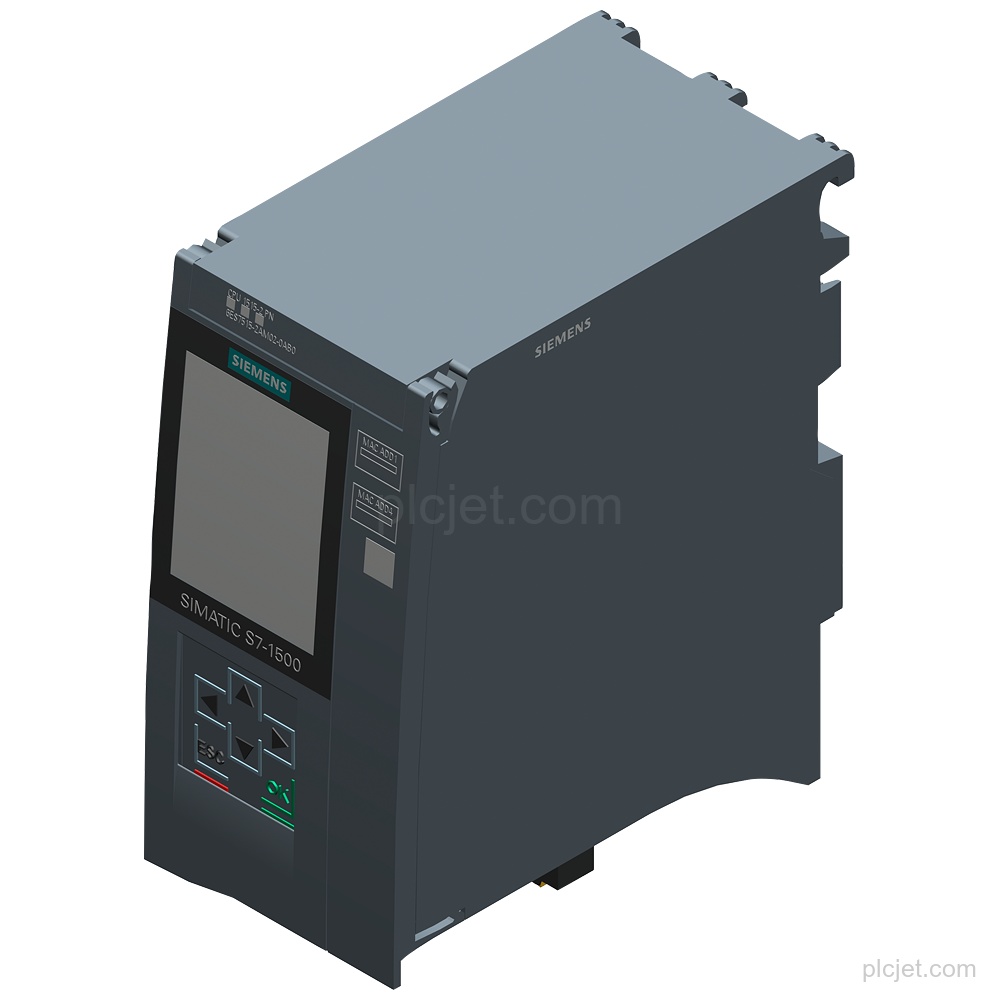

It is the Siemens 6ES7515-2AM02-0AB0, CPU 1515-2 PN.
What memory does this CPU provide?
It has 500 KB integrated work memory for the program and 3 MB for data. A SIMATIC Memory Card is required.

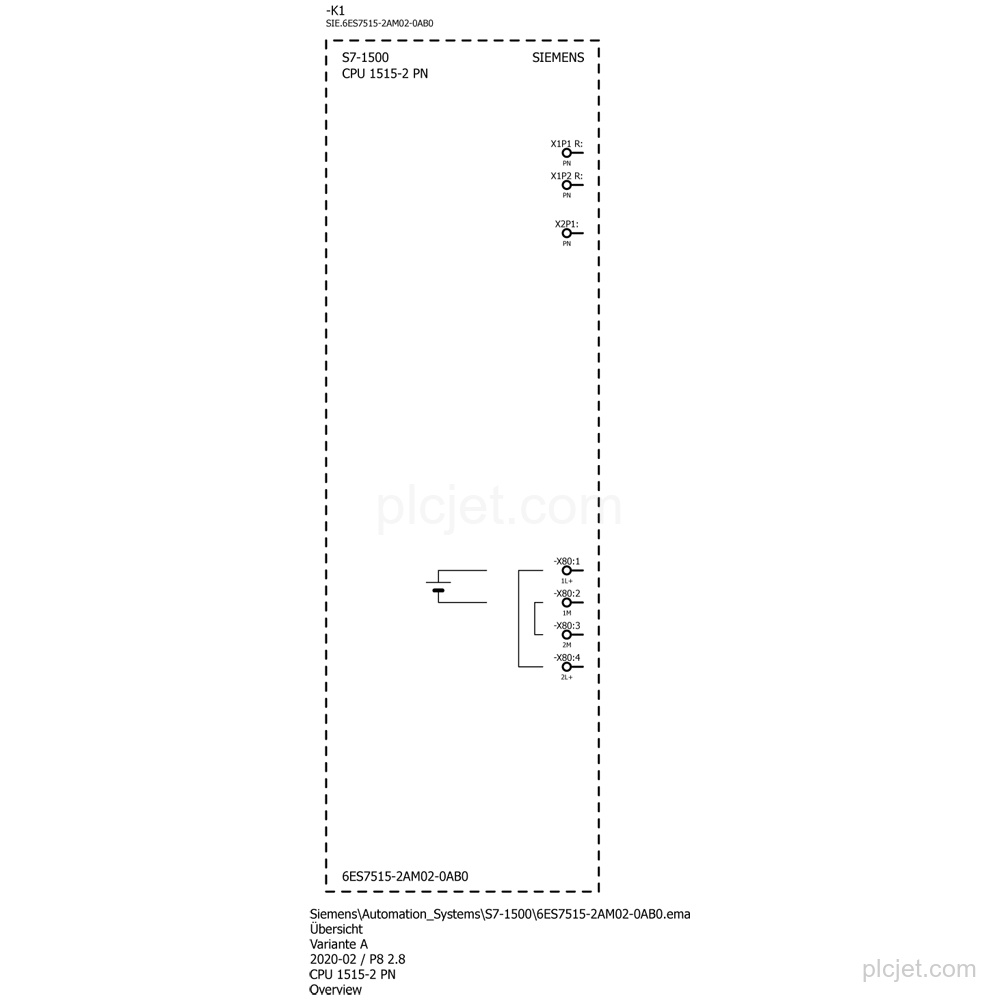

Which PROFINET interfaces are available?
It has 2 interfaces: X1 with PROFINET IRT and a 2-port switch, and X2 with PROFINET RT.
What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
