Product Overview
Applications
Supports Motion Control technology objects with 2 400 available Motion Control resources.
Supports PID_Compact, PID_3Step and PID-Temp controllers with integrated optimization.
Supports high-speed counter functions.

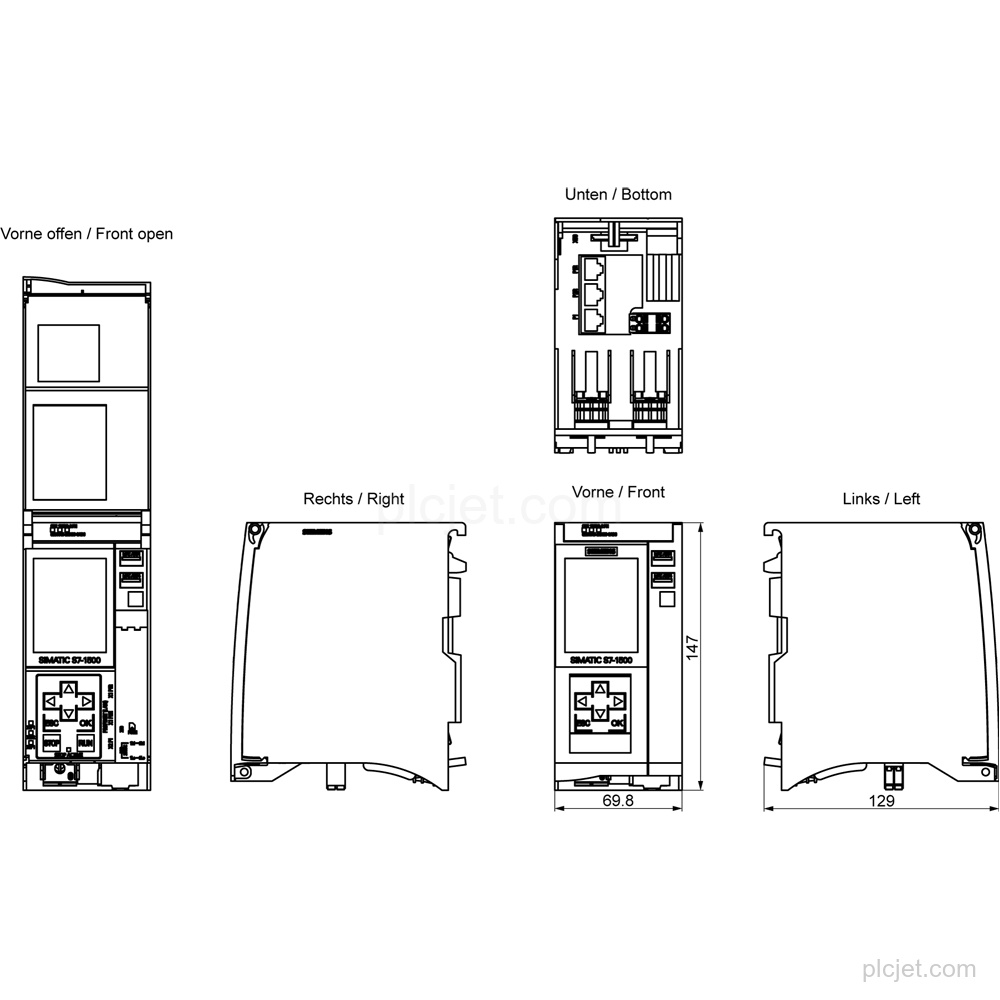

Technical Summary
| Product model | 6ES7515-2AN03-0AB0; CPU 1515-2 PN |
|---|---|
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| Program work memory | 1 Mbyte integrated |
| Load memory | Plug-in SIMATIC Memory Card, max. 32 Gbyte; required |
| CPU processing time | 6 ns bit operations typ. |
| PROFINET interfaces | 2; 1st interface: 2-port integrated switch, 2nd interface: 1 port |
| IO Controllers | 2 integrated |
| Connectable IO Devices | 1st interface max. 256; 2nd interface max. 32 |
Key Features
Bit operations: 6 ns typ.; word operations: 7 ns typ.; fixed point arithmetic: 9 ns typ.; floating point arithmetic: 37 ns typ.
1 Mbyte integrated work memory for program; plug-in SIMATIC Memory Card load memory, max. 32 Gbyte; SIMATIC Memory Card required.

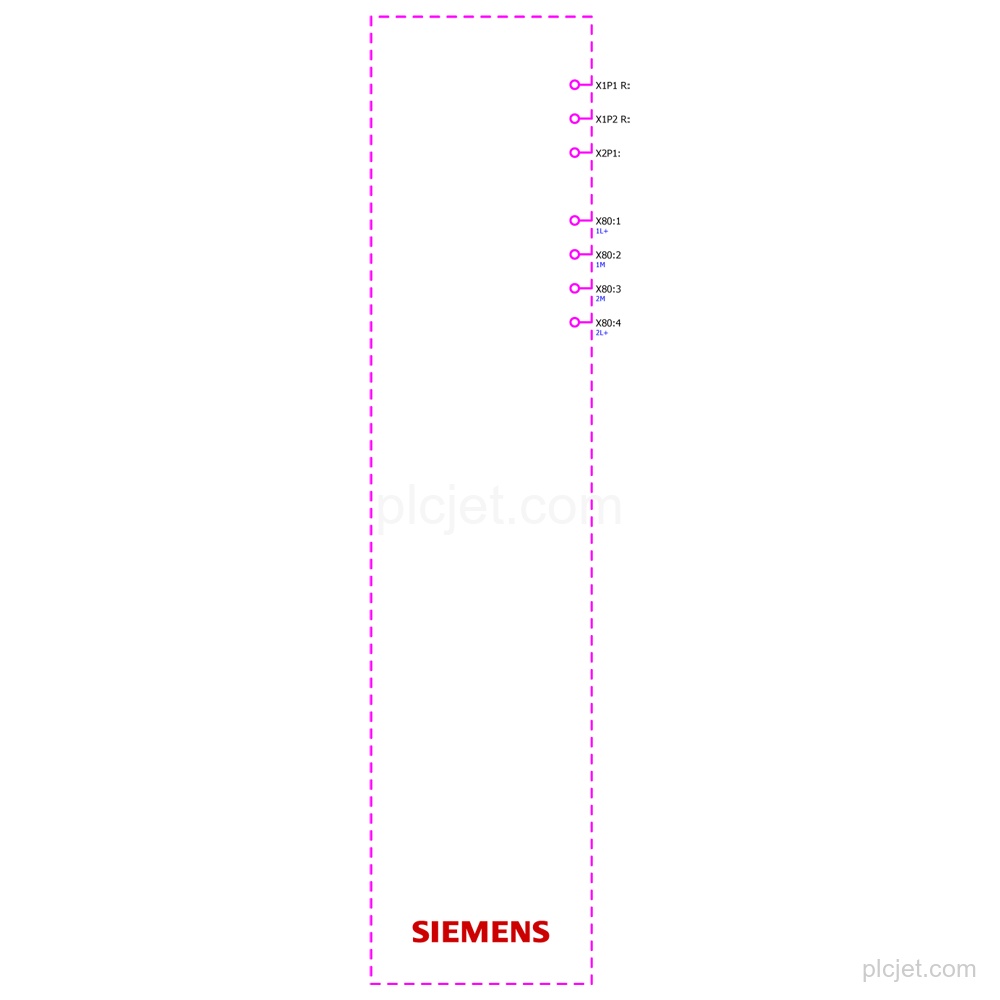

2 PROFINET interfaces: 1st interface with RJ 45 (Ethernet), 2 ports and integrated switch; 2nd interface with RJ 45 (Ethernet), 1 port and no integrated switch.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC; current consumption: 0.65 A rated, 1.03 A max.
Integrated IO Controllers: 2; connectable IO Devices via the 1st interface: max. 256, including max. 64 with IRT; via the 2nd interface: max. 32.
STEP 7 TIA Portal configurable/integrated from V21 (FW V4.1) / V18 (FW V3.0) or higher; product lifecycle: Active Product.
Frequently Asked Questions
What is the exact product variant?
It is Siemens 6ES7515-2AN03-0AB0, CPU 1515-2 PN.
What supply voltage does this CPU use?
Supply: 24 V DC rated, with a permissible range of 19.2 V to 28.8 V DC.
Which PROFINET interfaces are included?
The 1st interface has RJ 45 (Ethernet), 2 ports and an integrated switch. The 2nd interface has RJ 45 (Ethernet), 1 port and no integrated switch.
Is a SIMATIC Memory Card included?
It is not included in the stated configuration; a SIMATIC Memory Card is required.
