Product Overview
Applications
Supports Motion Control technology objects, including speed-controlled, positioning, synchronous, and external encoder resources.
Provides PID_Compact, PID_3Step, and PID-Temp controllers with integrated optimization.
Supports a high-speed counter.

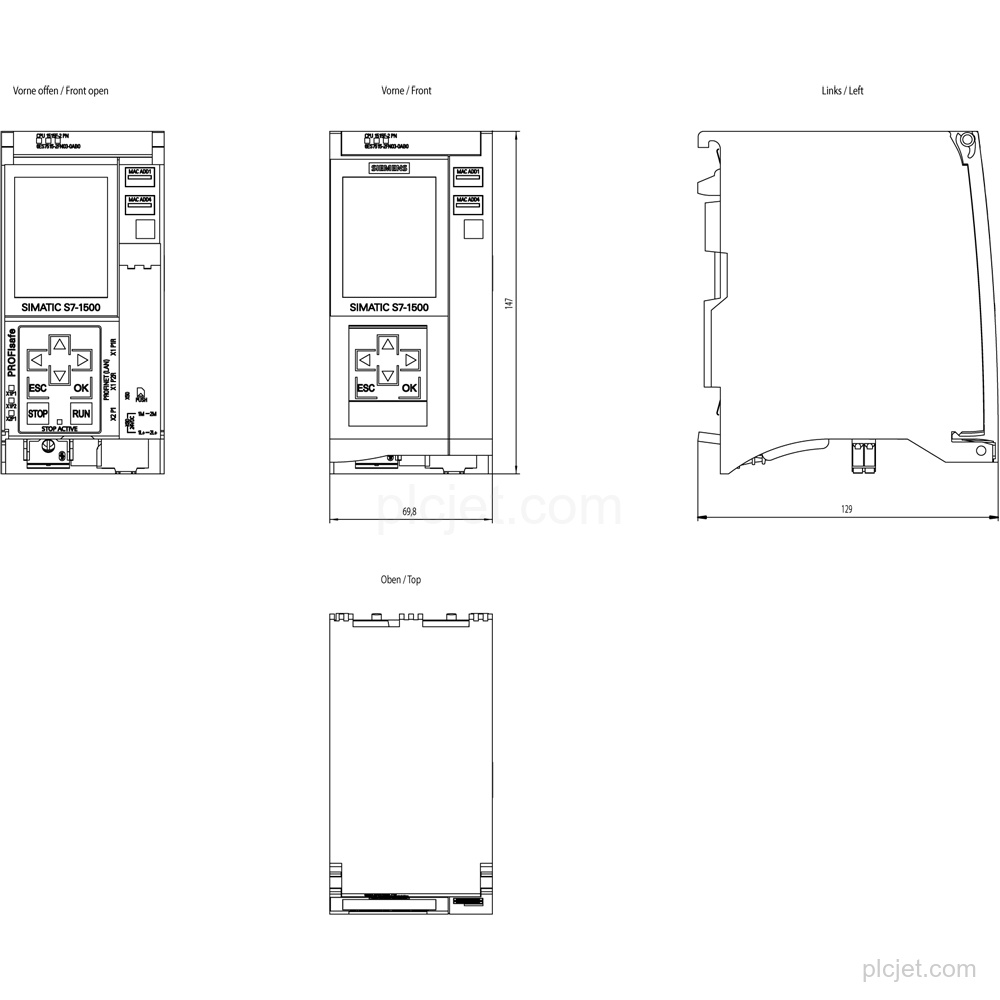

Technical Summary
| Product type | CPU 1515F-2 PN |
|---|---|
| Work memory for program | 1.5 MB |
| Work memory for data | 4.5 MB |
| PROFINET interfaces | 2 |
| Rated supply voltage | 24 V DC |
| Bit-operation performance | 6 ns typical |
| SIMATIC Memory Card | Required; 1 slot |
| X1 connectable IO Devices | 256 maximum |
| X2 connectable IO Devices | 32 maximum |
| PROFIsafe | Yes; V2.4 / V2.6 |
| OPC UA Runtime license | Required; "Medium" license |
Key Features
CPU 1515F-2 PN with 6 ns typical bit-operation processing time.
1.5 MB for the program and 4.5 MB for data.

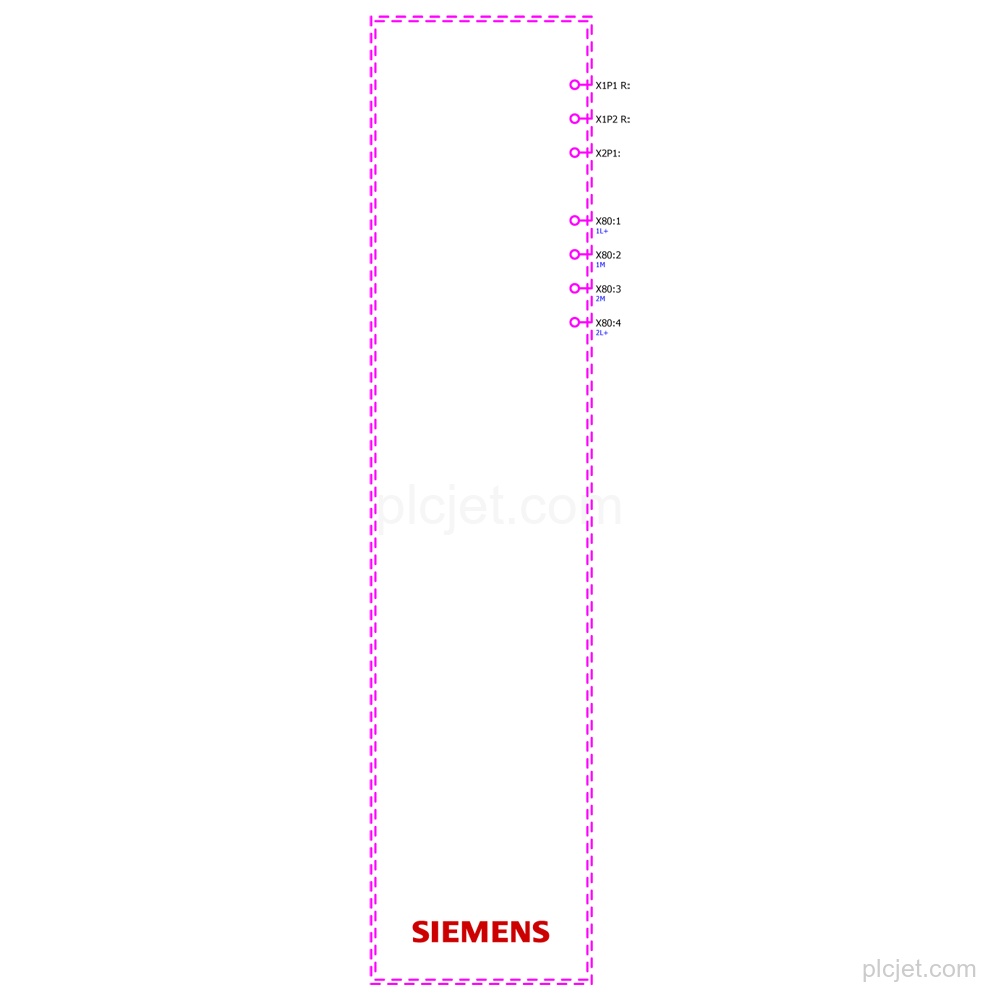

2 PROFINET interfaces: X1 with PROFINET IRT and a 2-port switch; X2 with PROFINET RT and 1 port.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
1 SIMATIC Memory Card slot; a SIMATIC Memory Card is required.
Up to 256 connectable IO Devices via the integrated X1 interface and up to 32 via X2.
Frequently Asked Questions
What is the exact product type of 6ES7515-2FN03-0AB0?
It is a CPU 1515F-2 PN SIMATIC S7-1500F central processing unit.
How much work memory does the CPU have?
It has 1.5 MB for the program and 4.5 MB for data.
Which PROFINET interfaces are provided?
X1 provides PROFINET IRT with a 2-port switch, while X2 provides PROFINET RT with 1 port.
Is a SIMATIC Memory Card included?
It is not included in the stated configuration; a SIMATIC Memory Card is required and 1 slot is provided.
