Product Overview
Technical Summary
| Product type | CPU 1517F-3 PN/DP |
|---|---|
| Program work memory | 3 Mbyte |
| Data work memory | 8 Mbyte |
| Required memory card | Yes; SIMATIC Memory Card |
| PROFINET interfaces | 2 |
| PROFIBUS interfaces | 1 |
| Rated supply voltage | 24 V DC |
| Typical bit-operation processing time | 2 ns |
Key Features

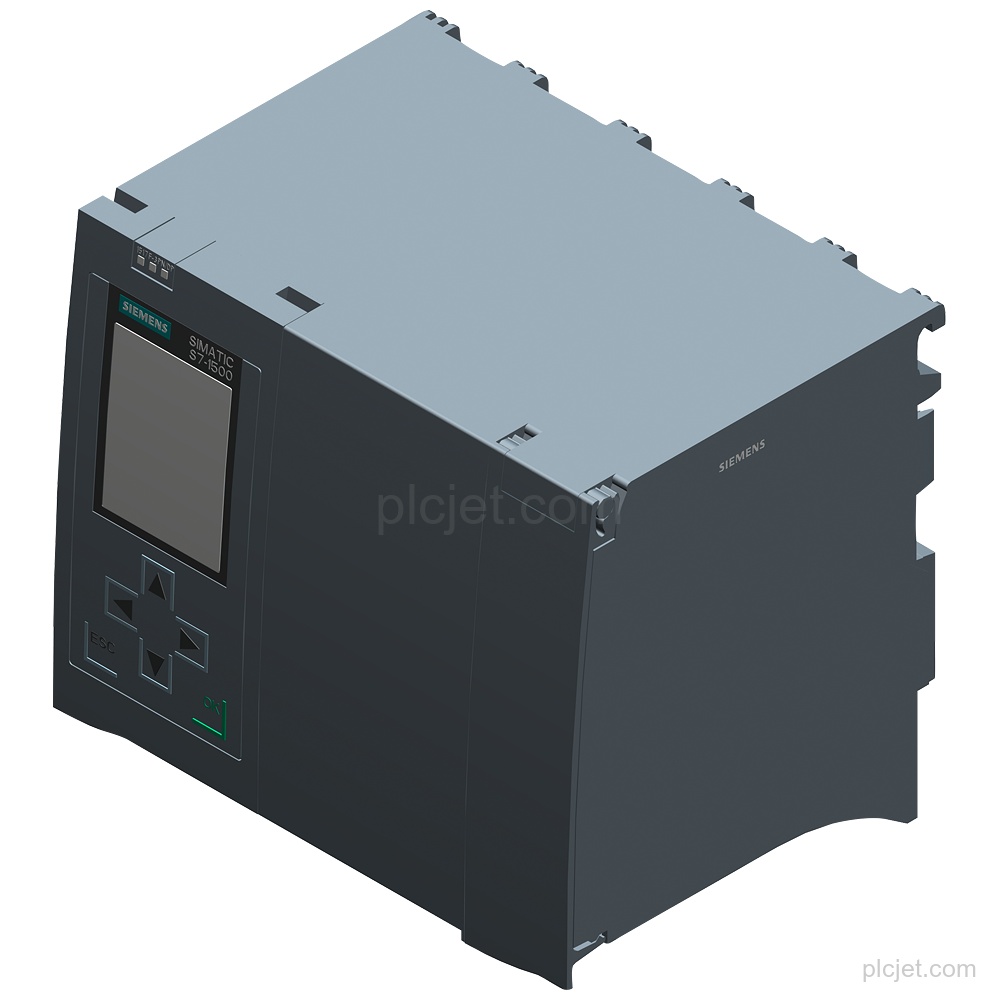

Product type designation: CPU 1517F-3 PN/DP.
Integrated work memory: 3 Mbyte for the program and 8 Mbyte for data.

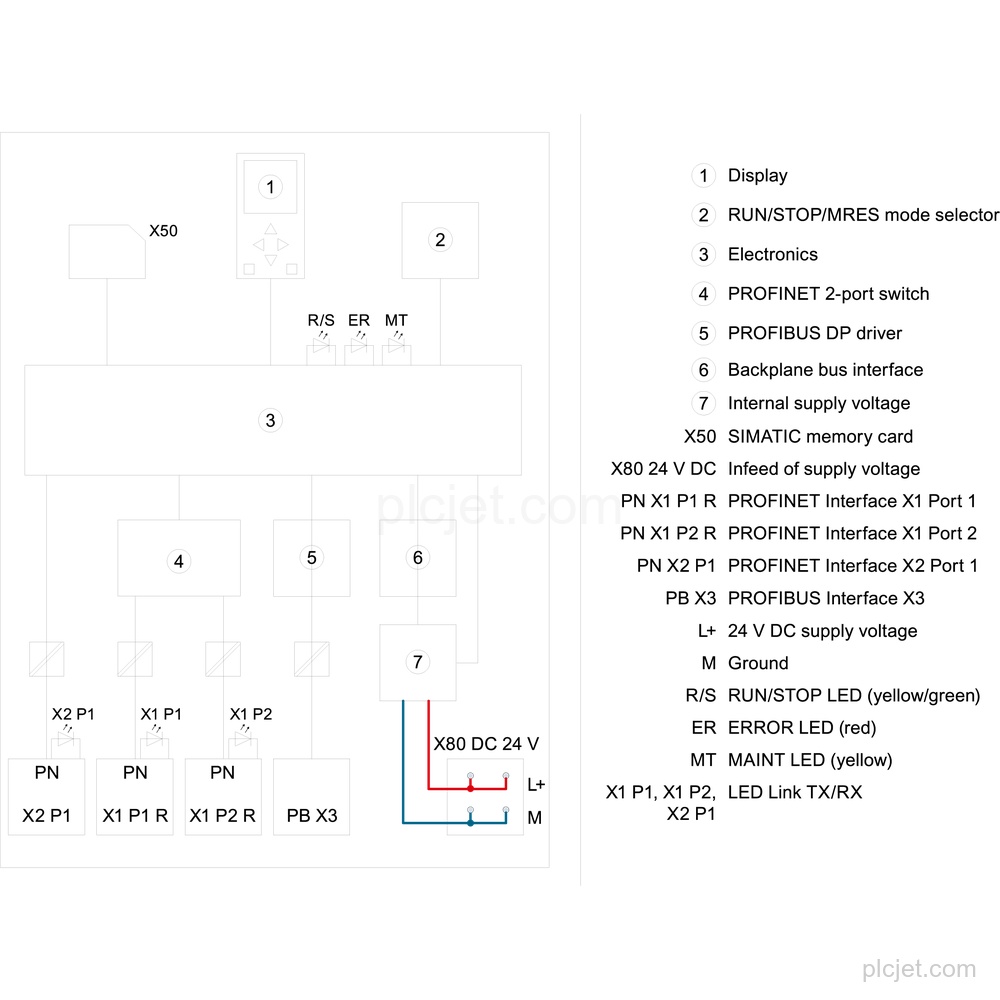

1st interface: PROFINET IRT with a 2-port switch; 2nd interface: PROFINET RT; 3rd interface: PROFIBUS.
Rated DC supply voltage: 24 V; permissible range: 19.2 V to 28.8 V.
Typical bit-operation processing time: 2 ns.
Frequently Asked Questions
What exact Siemens line item is this?
It is Siemens 6ES7517-3FP00-0AB0, product type CPU 1517F-3 PN/DP.
Which interfaces does the CPU provide?
It has PROFINET IRT with a 2-port switch, PROFINET RT, and PROFIBUS.
What memory is provided?
It has 3 Mbyte integrated work memory for the program and 8 Mbyte for data. A SIMATIC Memory Card is required.
What should be included in a project quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
