Product Overview
Applications
Supports Motion Control technology objects, with 15 360 available Motion Control resources.
Supports OPC UA Client and OPC UA Server functions, including data access and method calls.
Technical Summary
| Product type | CPU 1518F-4PN/DP |
|---|---|
| Program work memory | 9 MB |
| Data work memory | 60 MB |
| Bit performance | 1 ns |
| PROFINET interfaces | 3 |
| PROFIBUS interface | 1 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| SIMATIC Memory Card | Required; 1 slot |
| Load memory | Plug-in SIMATIC Memory Card, max. 32 Gbyte |
| Product lifecycle | Announcement of product phase-out |
Key Features

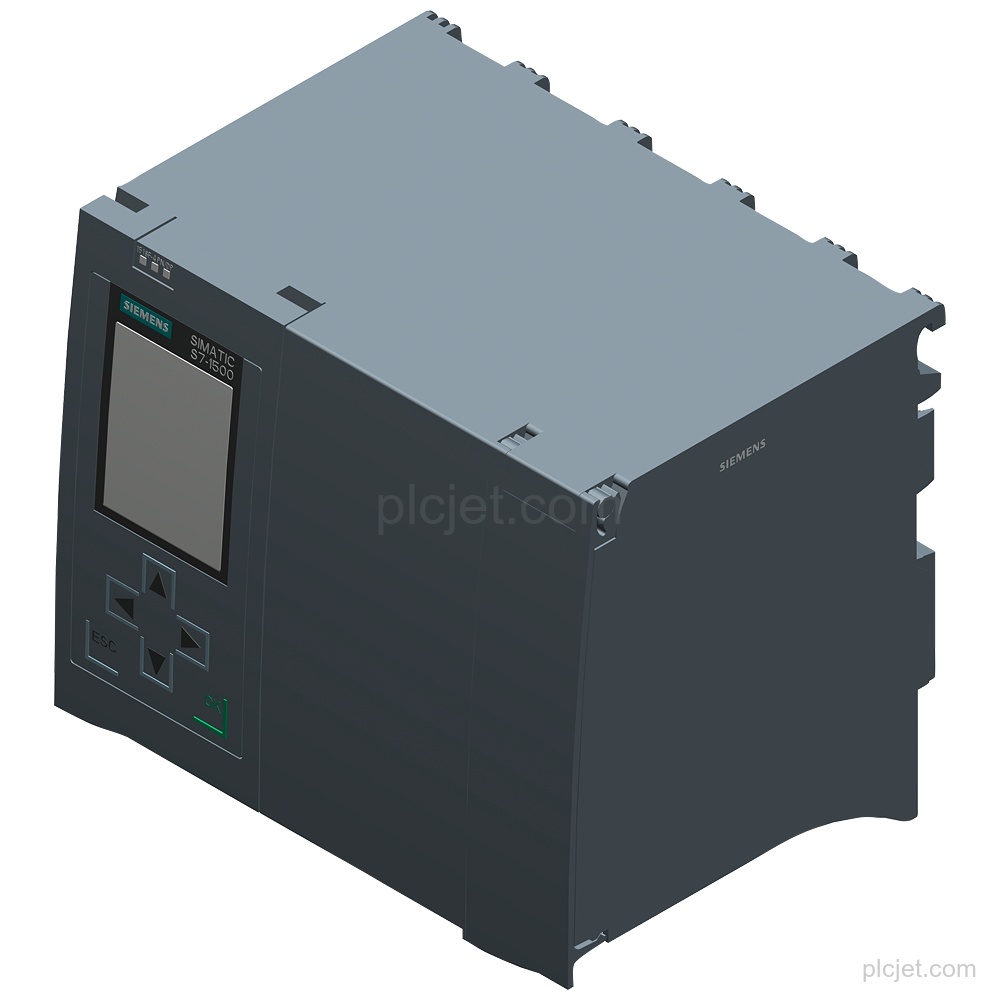

CPU 1518F-4PN/DP with 1 ns bit performance for the SIMATIC S7-1500F family.
9 MB for the program and 60 MB for data.

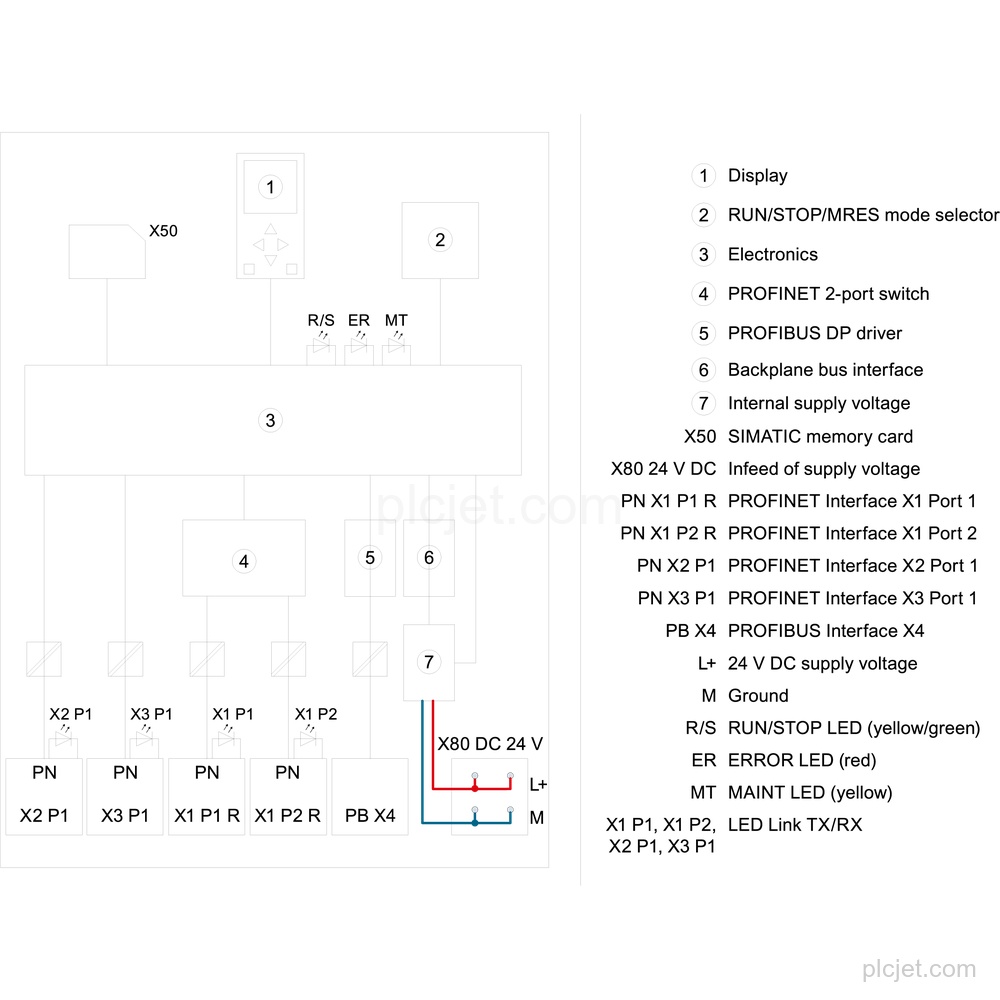

3 PROFINET interfaces and 1 PROFIBUS interface; the 1st interface supports PROFINET IRT with a 2-port switch.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
1 SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.

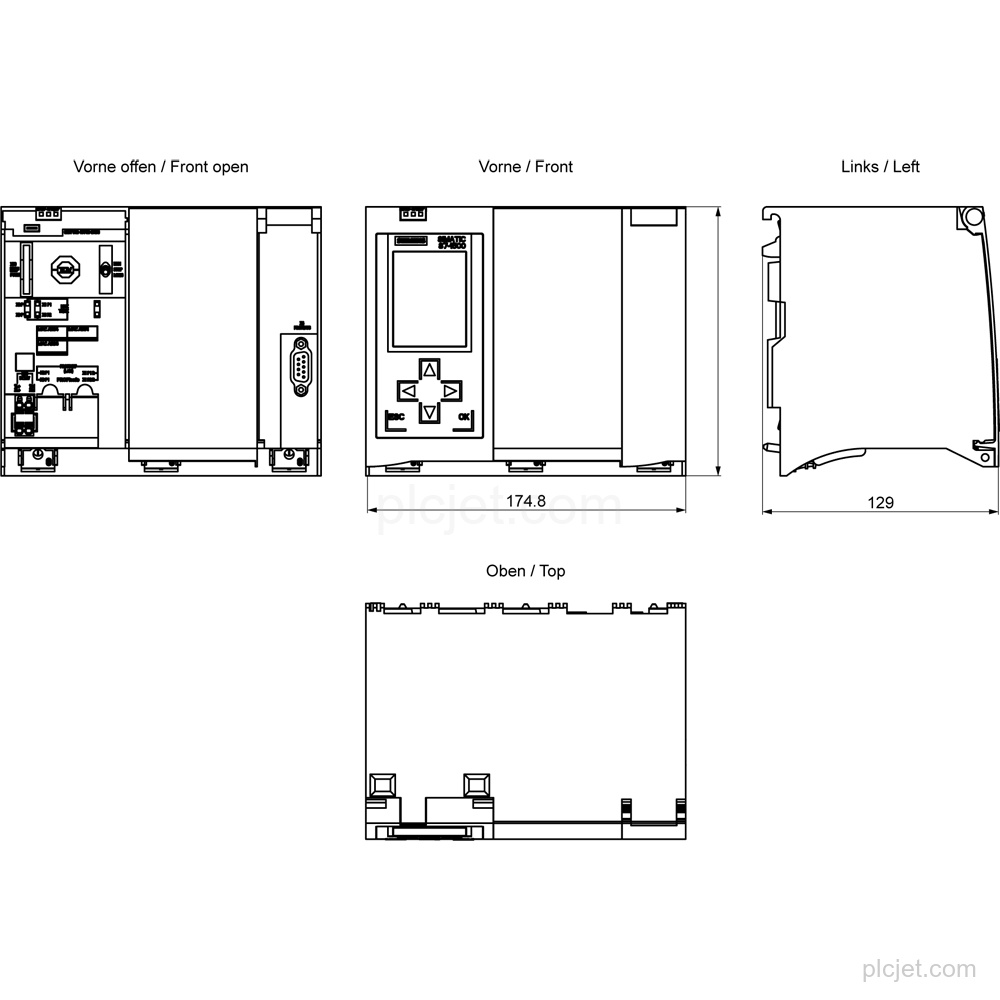

Dimensions: 175 mm × 147 mm × 129 mm; weight, approx.: 2 079 g.
Frequently Asked Questions
What is the exact product variant?
It is the Siemens 6ES7518-4FP00-0AB0, CPU 1518F-4PN/DP.
What interfaces does this CPU provide?
It has 3 PROFINET interfaces and 1 PROFIBUS interface. The 1st interface supports PROFINET IRT with a 2-port switch.
What memory is available?
It has 9 MB work memory for the program and 60 MB for data. A SIMATIC Memory Card is required for load memory.
What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
