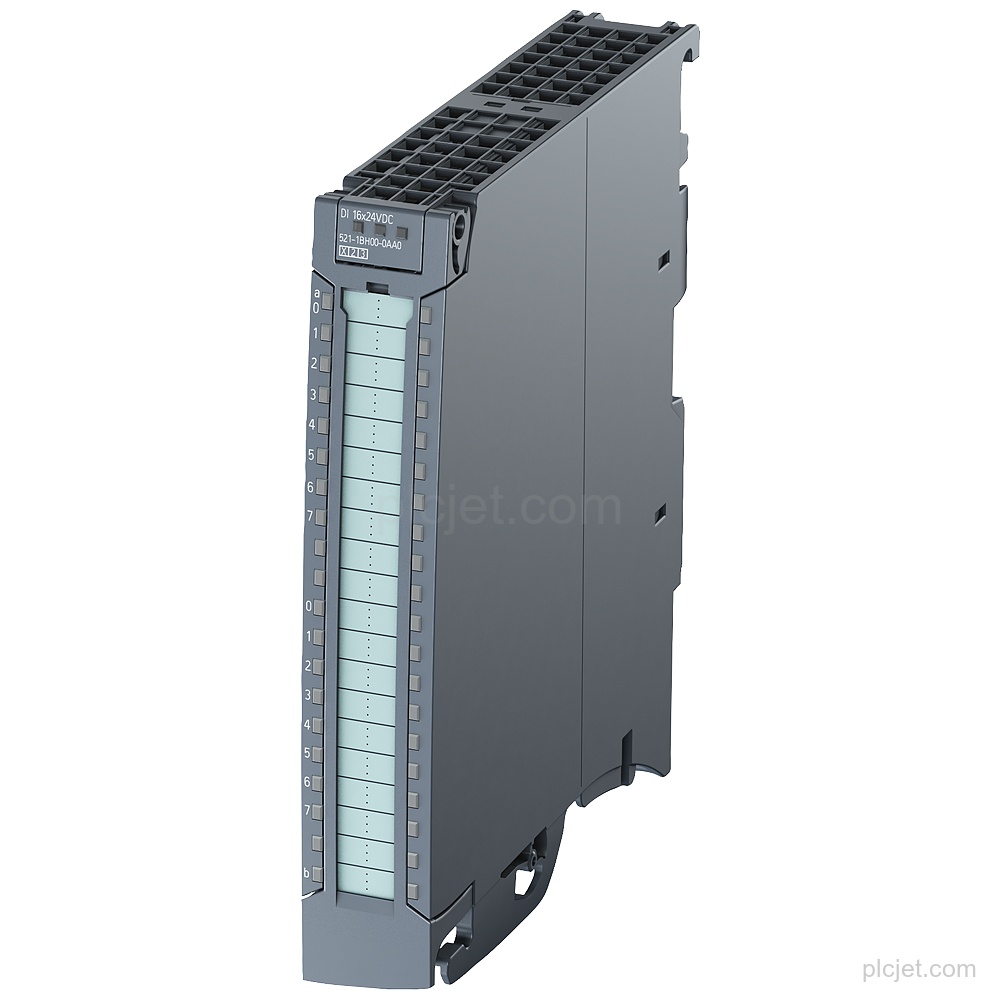

Product Overview
Technical Summary
| Product type | DI 16 x 24 V DC BA |
|---|---|
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Input delay, typ. | 3.2 ms |
| Signal "0" input voltage | -30 to +5 V |
| Signal "1" input voltage | +11 to +30 V |
| Backplane bus power consumption | 1.05 W |
Key Features
The module has 16 digital inputs, with 16 simultaneously controllable inputs.
Rated input voltage is 24 V DC; the signal "0" range is -30 to +5 V and the signal "1" range is +11 to +30 V.
Typical input delay is 3.2 ms; the input characteristic curve complies with IEC 61131, type 3.
Delivery includes a 40-pole Push-in front connector.
Frequently Asked Questions
What is the exact input configuration of 6ES7521-1BH10-0AA0?
It is a DI 16 x 24 V DC BA module with 16 digital inputs.
What input voltage does this module use?
The rated input voltage is 24 V DC. The signal "0" range is -30 to +5 V, and the signal "1" range is +11 to +30 V.
What connector is included with the configuration?
The configuration includes a 40-pole Push-in front connector.
