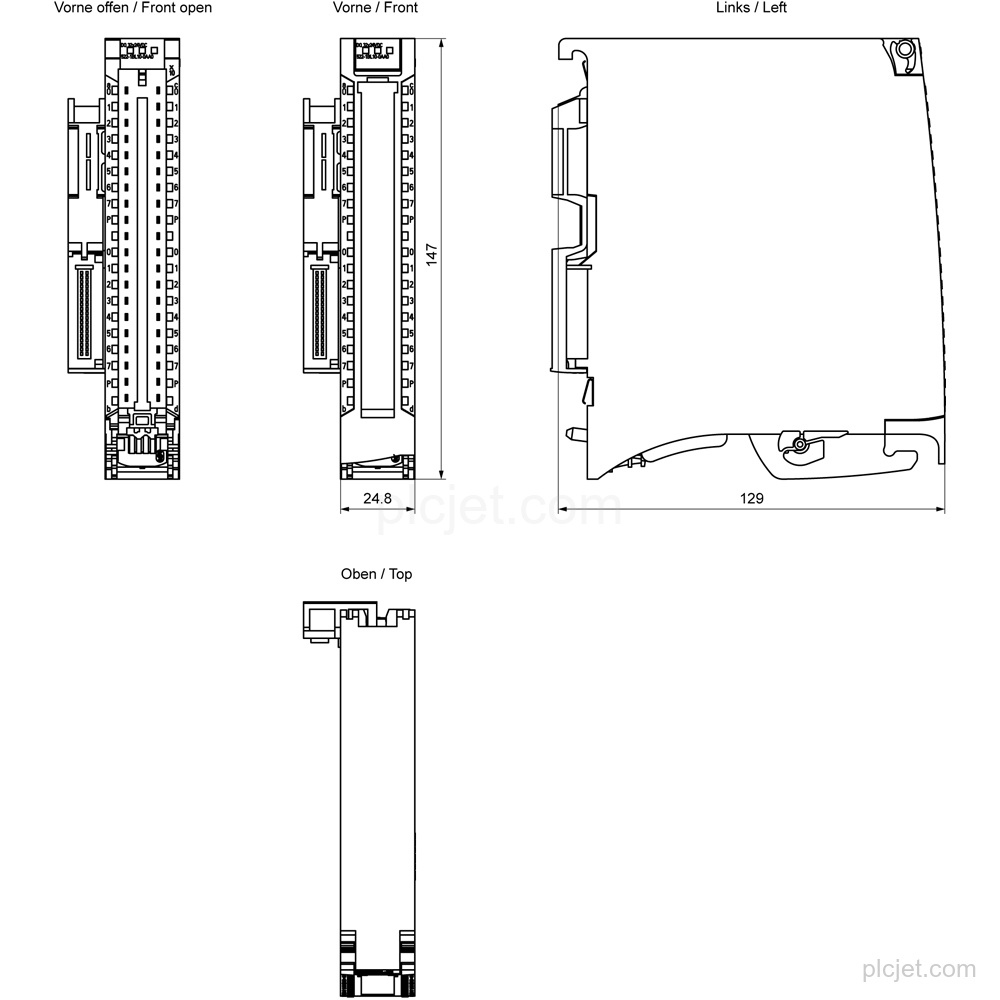

Product Overview
Applications
Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Technical Summary
| Product type | DQ 32x24VDC/0.5A BA |
|---|---|
| Digital outputs | 32 transistor outputs; current-sourcing |
| Supply voltage | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Output current | 0.5 A per channel rated and maximum |
| Current per group | 4 A maximum for groups of 8 outputs |
| Current per module | 16 A maximum |
| Short-circuit protection | Yes |
| Front connector | Push-in, included |
Key Features
The module has 32 current-sourcing transistor outputs with output type according to IEC 61131, type 0.5.
Rated supply voltage and output voltage are 24 V DC; output current for signal "1" is 0.5 A rated and maximum.

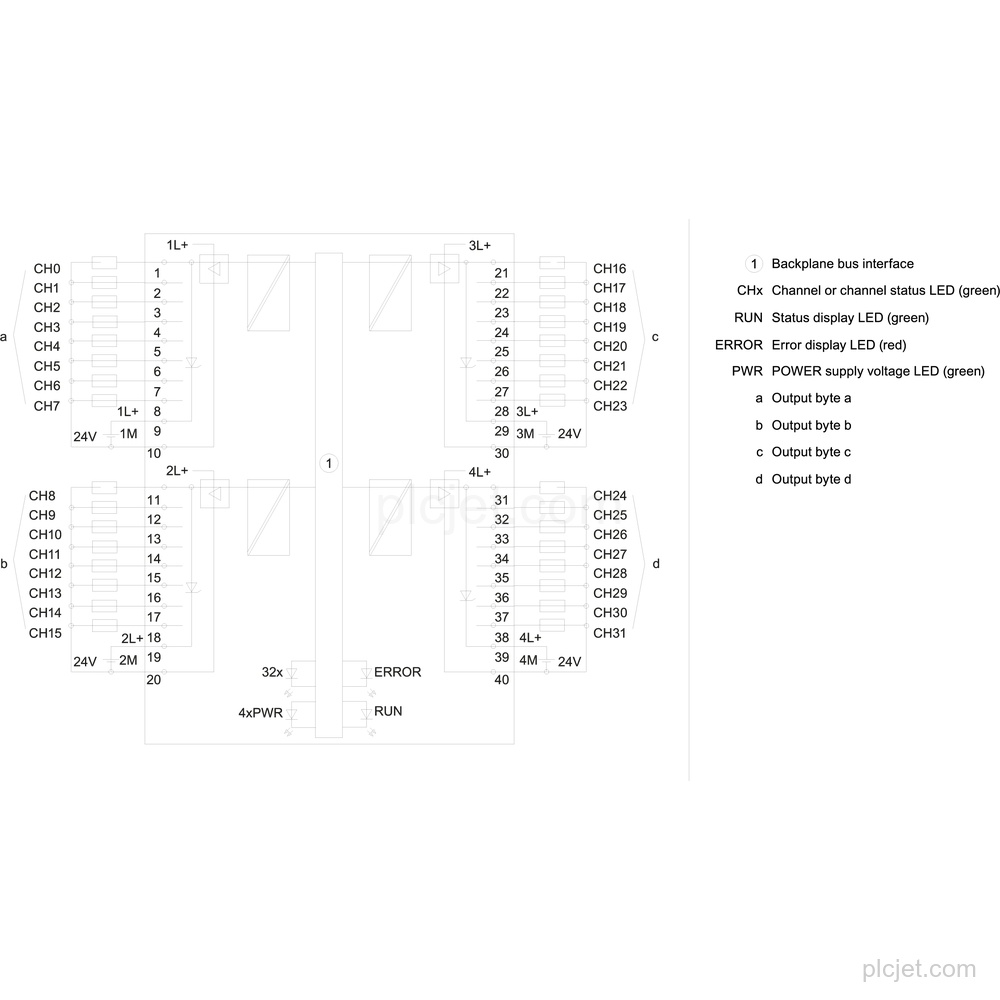

The outputs are arranged in groups of 8, with a maximum current of 4 A per group and 16 A per module.
The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Short-circuit protection is provided, and delivery includes a push-in front connector.
STEP 7 TIA Portal configuration and integration are supported from version V13 / V13.
Frequently Asked Questions
What is the exact product type of 6ES7522-1BL10-0AA0?
It is a SIMATIC S7-1500 digital output module with product type designation DQ 32x24VDC/0.5A BA.
How many outputs does the module have?
It has 32 current-sourcing transistor outputs, arranged in groups of 8.
What supply voltage and output current does it use?
The rated supply and output voltage is 24 V DC. Output current for signal "1" is 0.5 A rated and maximum per channel.
What connector is included?
It includes a push-in front connector.
Can this line item be included in a project quotation?
Yes. Provide the requested quantity, destination, schedule context, and any additional BOM lines for quotation preparation.
