Product Overview
Technical Summary
| Product type | DQ 8×230 V AC/2A ST (triac) |
|---|---|
| Digital outputs | 8; TRIAC; current-sourcing |
| Rated output voltage | 230 V AC; 120/230 V AC, 50/60 Hz |
| Rated output current | 2 A |
| Maximum current per group | 2 A; see additional description in the manual |
| Maximum switching capacity with resistive load | 2 A |
| Backplane bus power consumption | 0.9 W |
| Firmware version | V2.3.0 |
| Engineering with STEP 7 TIA Portal | Configurable/integrated from V12 / V12 |
| Front connector | Screw terminals or push-in terminals; ordered separately |
Key Features
8 parameterizable digital outputs with TRIAC technology and current-sourcing operation.
230 V AC rated voltage at 50/60 Hz; 2 A rated output current and 2 A maximum per group.
Maximum switching capacity is 2 A with resistive load and 50 W with lamp load.

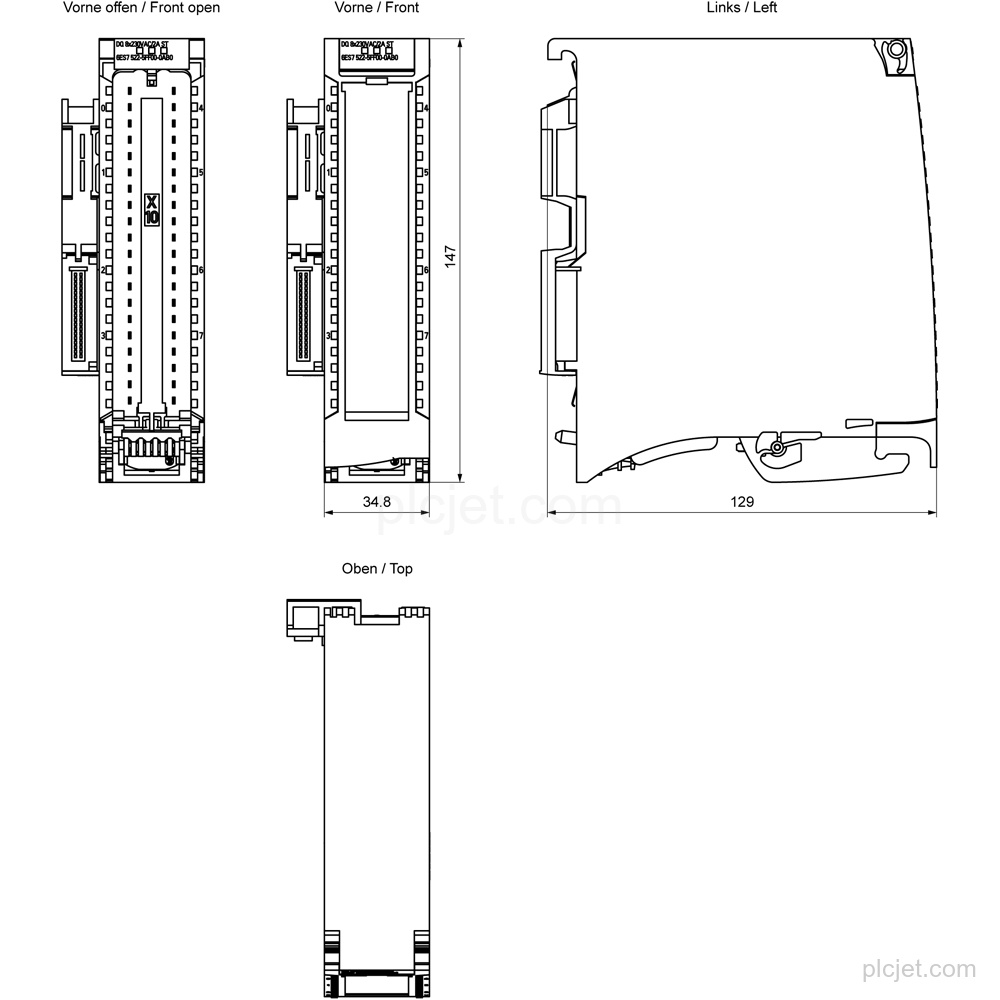

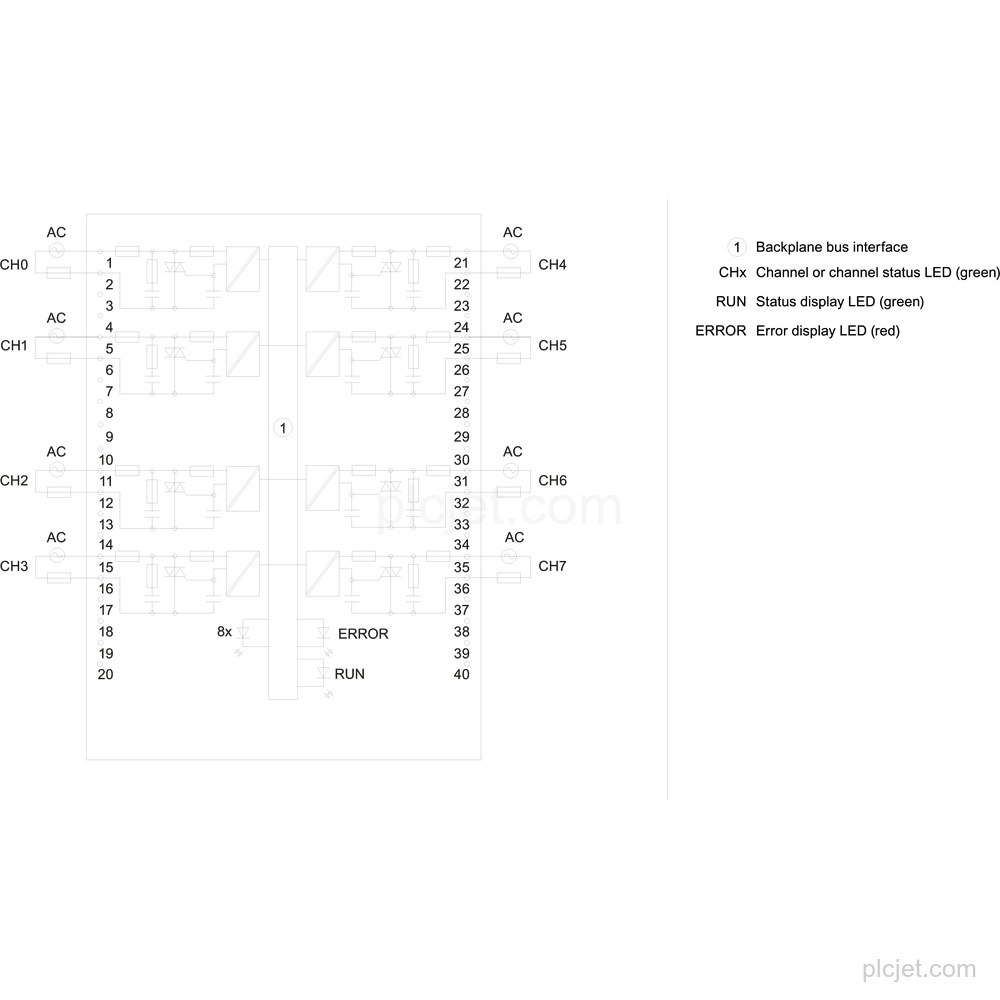

The 8 channels are arranged in groups of 1, with potential separation between the channels.
RUN, ERROR, MAINT, channel status, and module diagnostic LEDs are provided.
The front connector with screw terminals or push-in terminals is ordered separately.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7522-5FF00-0AB0?
It is a SIMATIC S7-1500 digital output module, product type DQ 8×230 V AC/2A ST (triac).
How many digital outputs does the module have?
It has 8 parameterizable TRIAC digital outputs with current-sourcing operation.
What are the output voltage and current ratings?
The rated output voltage is 230 V AC at 50/60 Hz, and the rated output current is 2 A. The maximum current per group is 2 A; see the additional description in the manual.
Is the front connector included with the module?
It is without a front connector; a front connector with screw terminals or push-in terminals is ordered separately.
