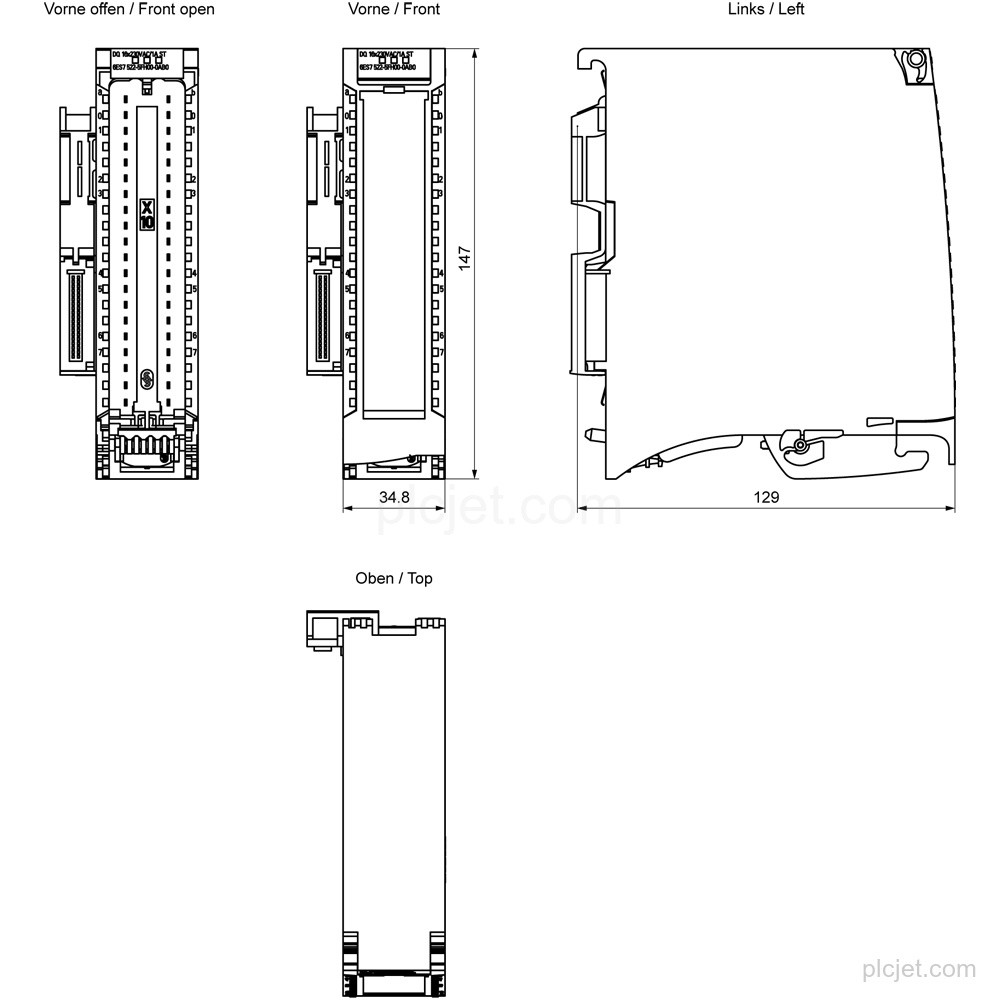

Product Overview
Technical Summary
| Product type | DQ 16x230VAC/1A ST (Triac) |
|---|---|
| Digital outputs | 16 |
| Output voltage, rated | 230 V AC; 120/230 V AC, 50/60 Hz |
| Output current, rated | 1 A for signal "1" |
| Maximum current per group | 2 A; see additional description in the manual |
| Maximum current per module | 10 A; see additional description in the manual |
| Output type | Triac |
| Firmware version | V1.3.0 |
| Firmware update possible | Yes |
| PROFINET GSD version / GSD revision | V2.3 / – |
| PROFIBUS GSD version / GSD revision | V1.0 / V5.1 |
| Front connector | Screw terminals or push-in terminals; to be ordered separately |
Key Features
16 Triac digital outputs with 2 byte output address space per module.
Rated output voltage: 230 V AC; 120/230 V AC, 50/60 Hz. Rated output current for signal "1": 1 A.

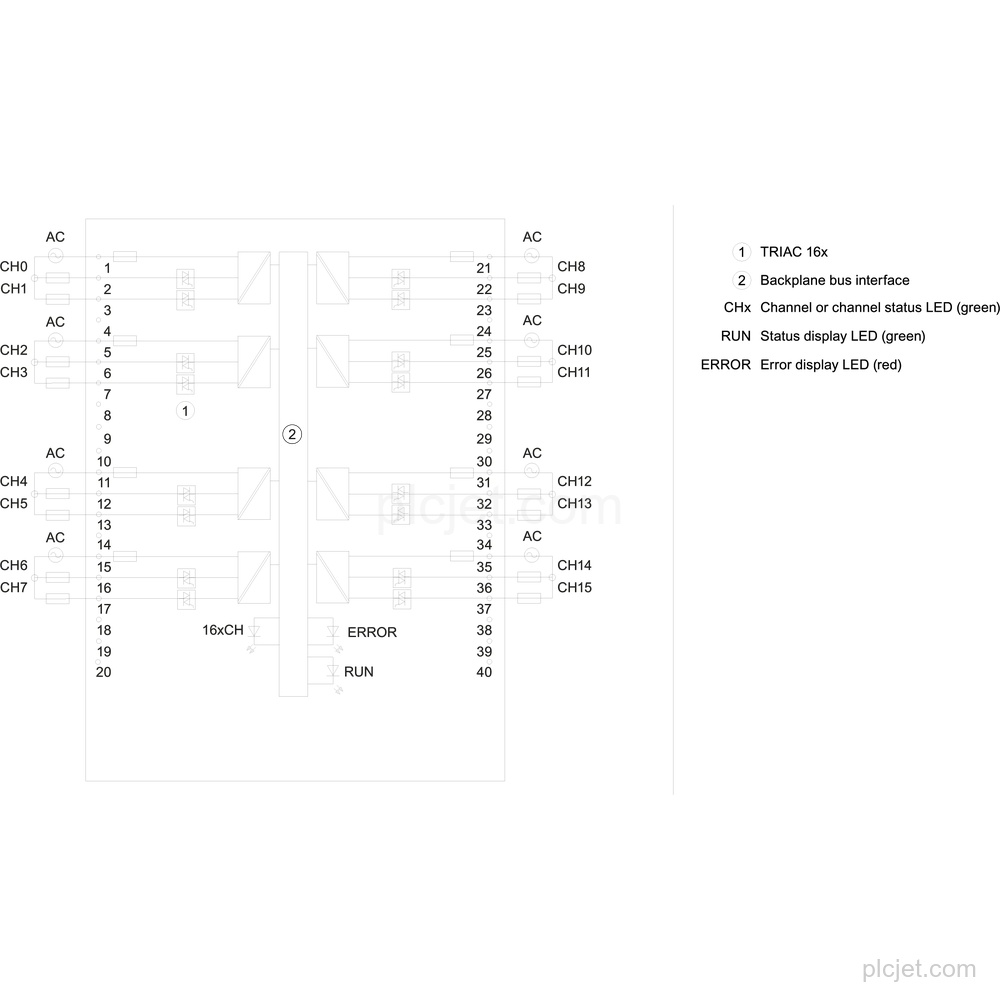

The 16 channels are arranged in groups of 2; maximum current per group is 2 A.
DQ and MSO are supported. PWM, oversampling and cam control are not supported.
Front connector with screw terminals or push-in terminals is to be ordered separately.
Frequently Asked Questions
What is the exact product type of 6ES7522-5FH00-0AB0?
The product type is DQ 16x230VAC/1A ST (Triac).
How many digital outputs does the module have?
It has 16 Triac digital outputs arranged in groups of 2.
What are the rated output voltage and current?
The rated output voltage is 230 V AC; 120/230 V AC, 50/60 Hz. The rated output current for signal "1" is 1 A.
Is the front connector included?
It is without a front connector; the connector with screw terminals or push-in terminals is to be ordered separately.
