Product Overview
Applications
Supports the safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
Two outputs can be switched in parallel for redundant control of a load.

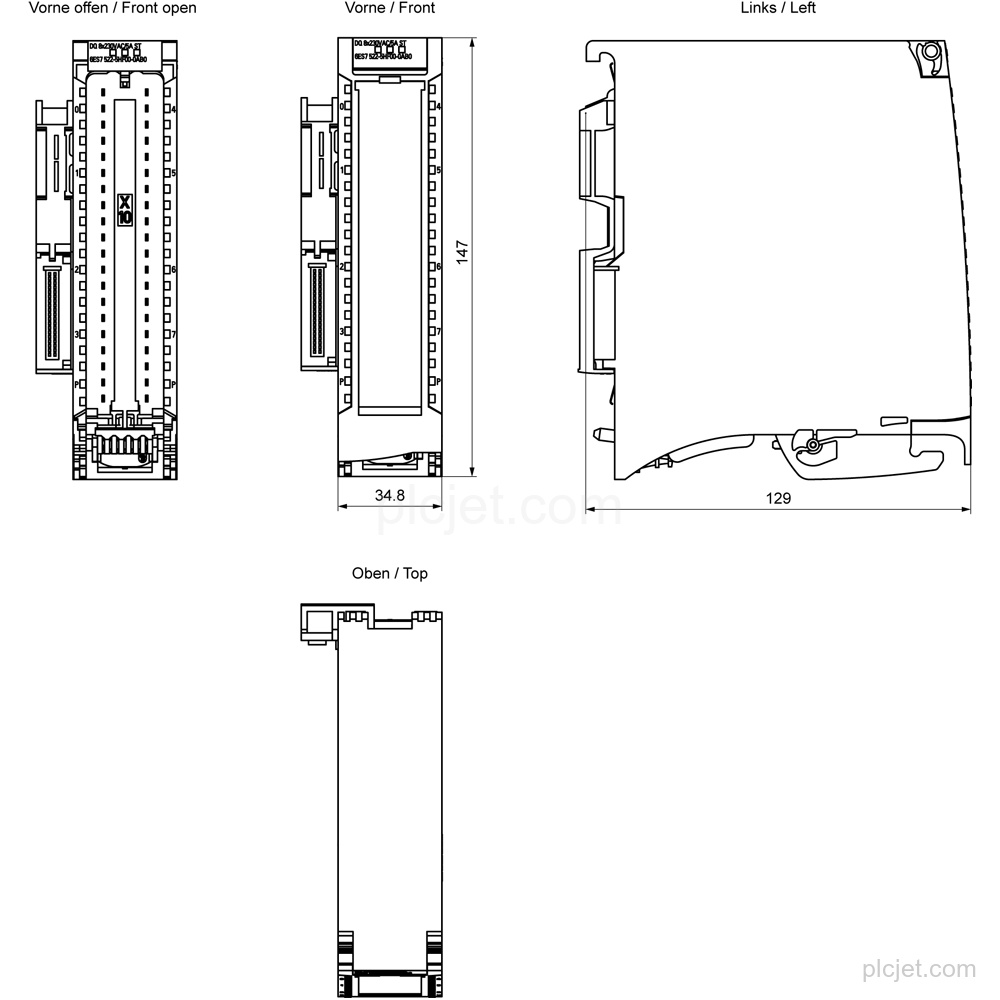

Technical Summary
| Product type | DQ 8×230 V AC/5 A ST (relay) |
|---|---|
| Digital outputs | 8 relay outputs |
| Rated output voltage | 230 V AC; 24 V DC to 120 V DC / 24 V AC to 230 V AC |
| Rated output current for signal "1" | 5 A |
| Rated supply voltage | 24 V DC |
| Permissible supply-voltage range | 19.2 V to 28.8 V DC |
| Address space per module | Outputs: 1 byte |
| Diagnostics | Yes; substitute values connectable |
| Firmware version | V2.1.0 |
| Front connector | Screw terminals or push-in; ordered separately |

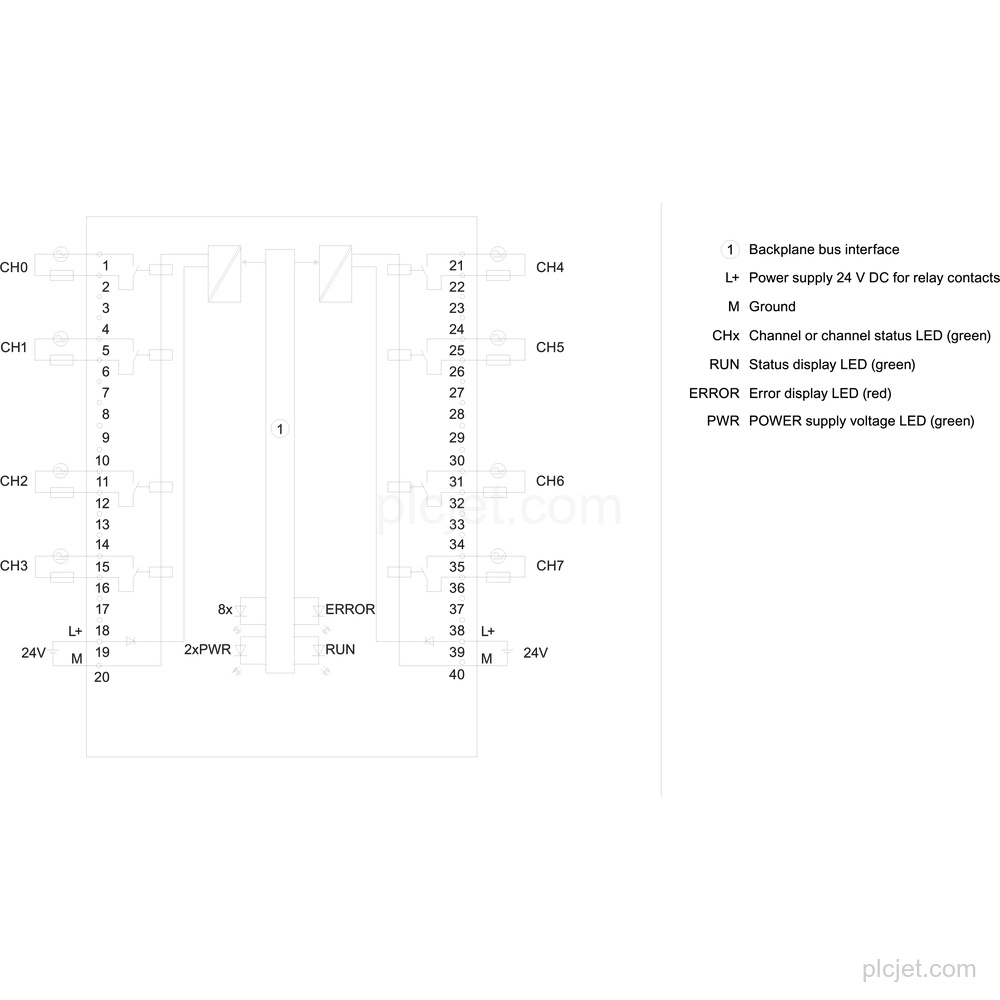

Key Features
Digital output module DQ 8×230 V AC/5 A ST with 8 relay outputs in groups of 1 and 5 A per group.
Rated output voltage: 230 V AC; rated output current for signal "1": 5 A.
Diagnostics, diagnostic alarms, supply-voltage monitoring, substitute values, and RUN, ERROR, MAINT, PWR and channel-status LEDs are supported.
Supports safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
The front connector with screw terminals or push-in connection is ordered separately.
Frequently Asked Questions
What is the exact product type of 6ES7522-5HF00-0AB0?
It is a SIMATIC S7-1500 digital output module DQ 8×230 V AC/5 A ST (relay).
How many relay outputs does the module have?
It has 8 relay outputs in groups of 1.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
Is the front connector included?
It is without the front connector; screw-terminal or push-in versions are ordered separately.
