Product Overview
Applications
Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.

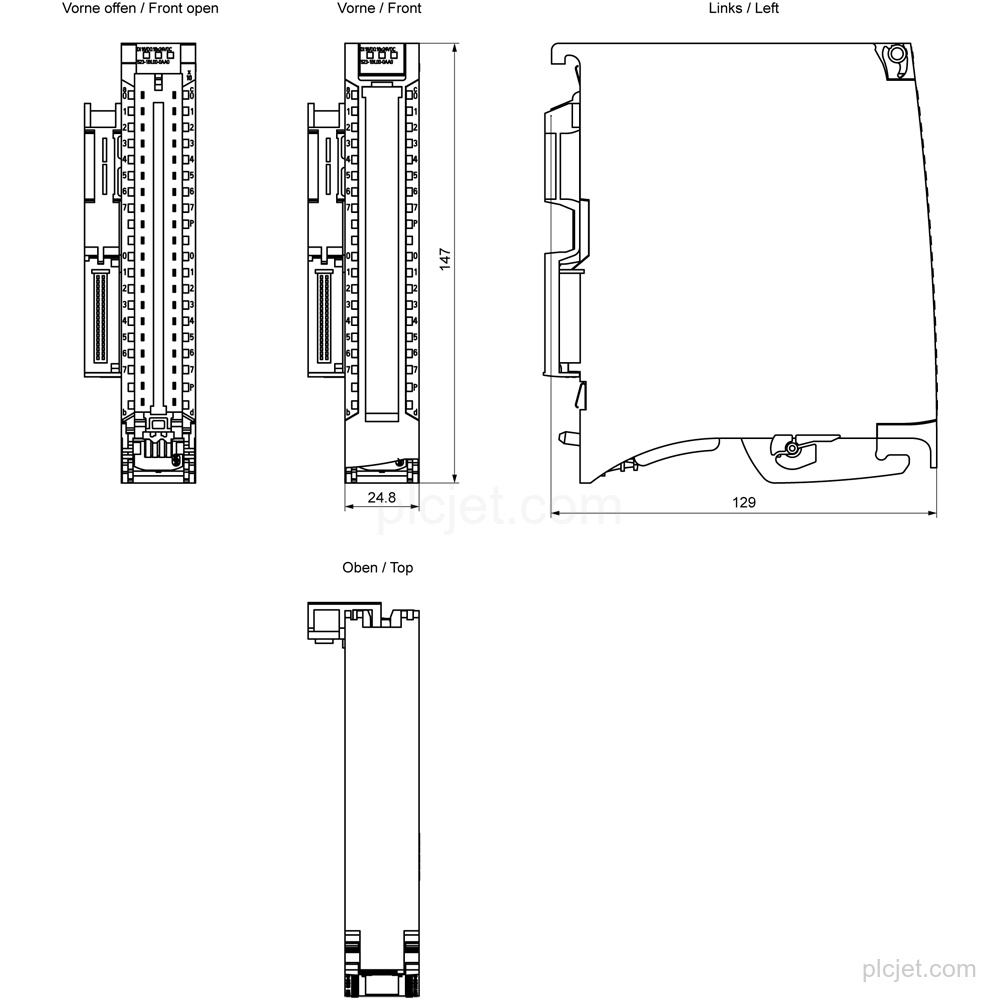

Technical Summary
| Product type designation | DI 16x24VDC / DQ16x24VDC/0.5A BA |
|---|---|
| Digital inputs | 16 |
| Digital outputs | 16 |
| Supply voltage, rated value (DC) | 24 V |
| Supply voltage, permissible range (DC) | 19.2 V to 28.8 V |
| Output current per channel, rated value | 0.5 A |
| Output current per group, max. | 4 A; see additional description in the manual |
| Output current per module, max. | 8 A; see additional description in the manual |
| Front connector | Push-in |
| Firmware version | V1.0.0 |
| Product lifecycle | Active Product |

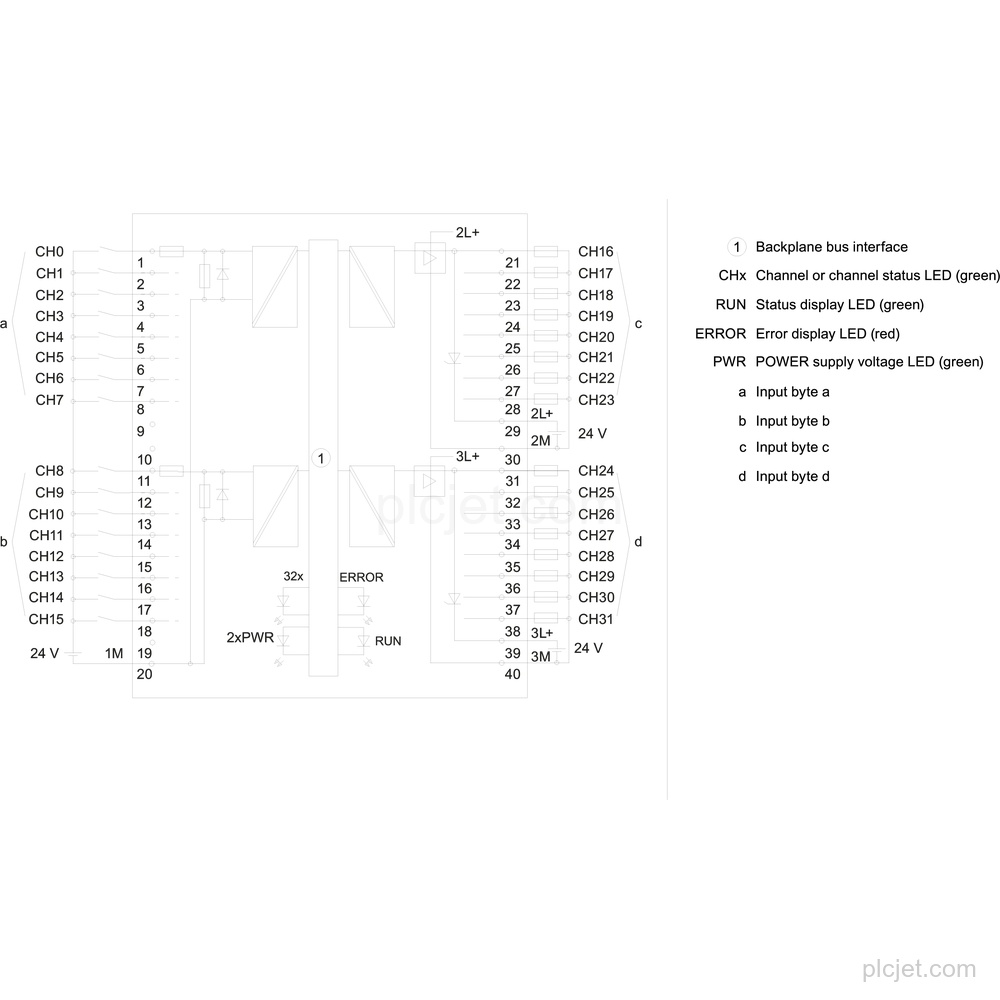

Key Features
16 digital inputs with 24 V rated input voltage and IEC 61131 type 3 input characteristic.
16 transistor outputs with current-sourcing operation and 0.5 A rated output current per channel.
Maximum output current is 4 A per group and 8 A per module; the manual provides additional description.
Supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V; delivery includes a front connector push-in.
Frequently Asked Questions
What is the exact product type of 6ES7523-1BL00-0AA0?
The product type designation is DI 16x24VDC / DQ16x24VDC/0.5A BA.
How many inputs and outputs does this module have?
It has 16 digital inputs and 16 digital outputs.
What supply voltage does the module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
What output current limits should be retained in the quotation?
The rated output current is 0.5 A per channel; the maximum is 4 A per group and 8 A per module. The manual provides additional description.
What is included in the delivery configuration?
It includes a front connector push-in.
