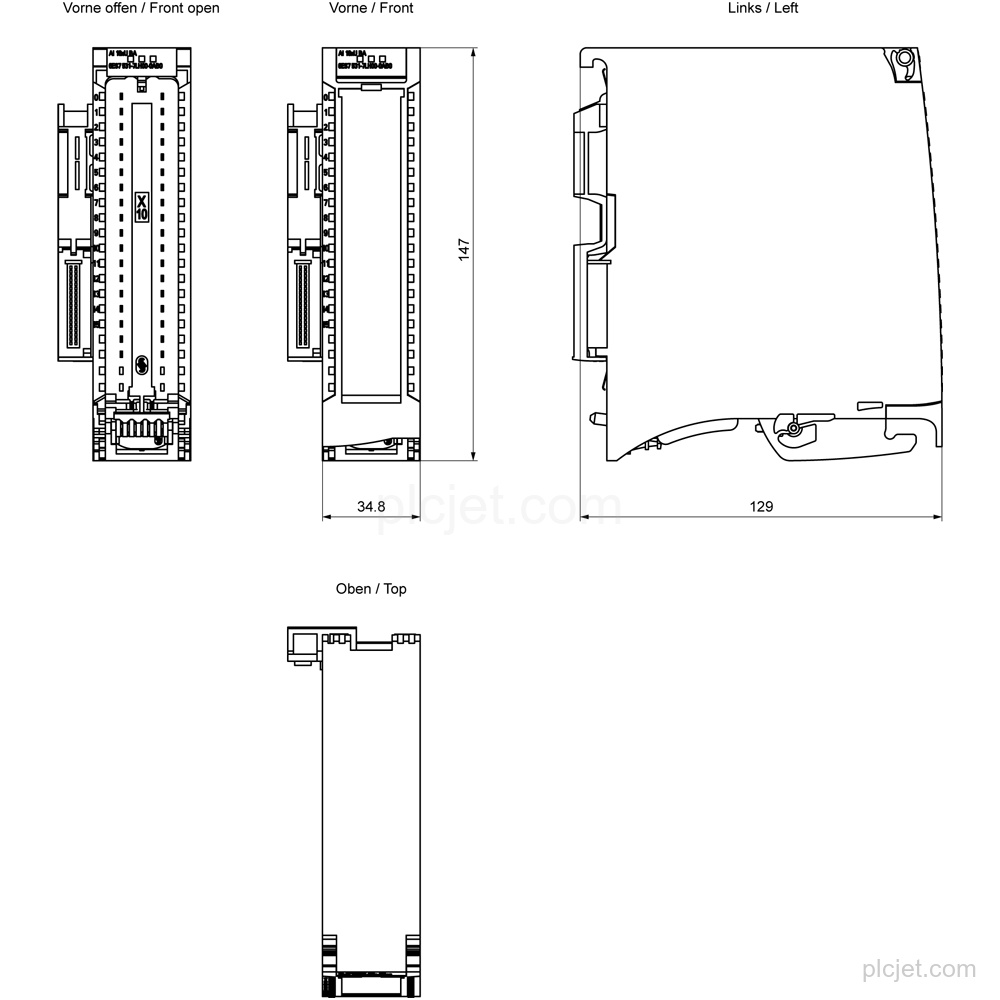

Product Overview
Applications
The module is used for voltage measurement through its 16 analog voltage inputs.
Technical Summary
| Product type | AI 16xU BA |
|---|---|
| Analog inputs | 16 |
| Voltage measurement channels | 16 |
| Resolution with overrange | max. 16 bit |
| Voltage operational error limit | (+/-) 0.5% relative to the input range, over the overall temperature range |
| Supported voltage ranges | 1 V to 5 V; -1 V to +1 V; -10 V to +10 V; -5 V to +5 V |
| Common mode voltage | max. 4 V |
| Power consumption from the backplane bus | 0.85 W |
| Firmware version | V1.0.0 |
| Hardware functional status | from FS01 |
| Product lifecycle | Active Product |
| Front connector | To be ordered separately; screw terminals or push-in |
Key Features

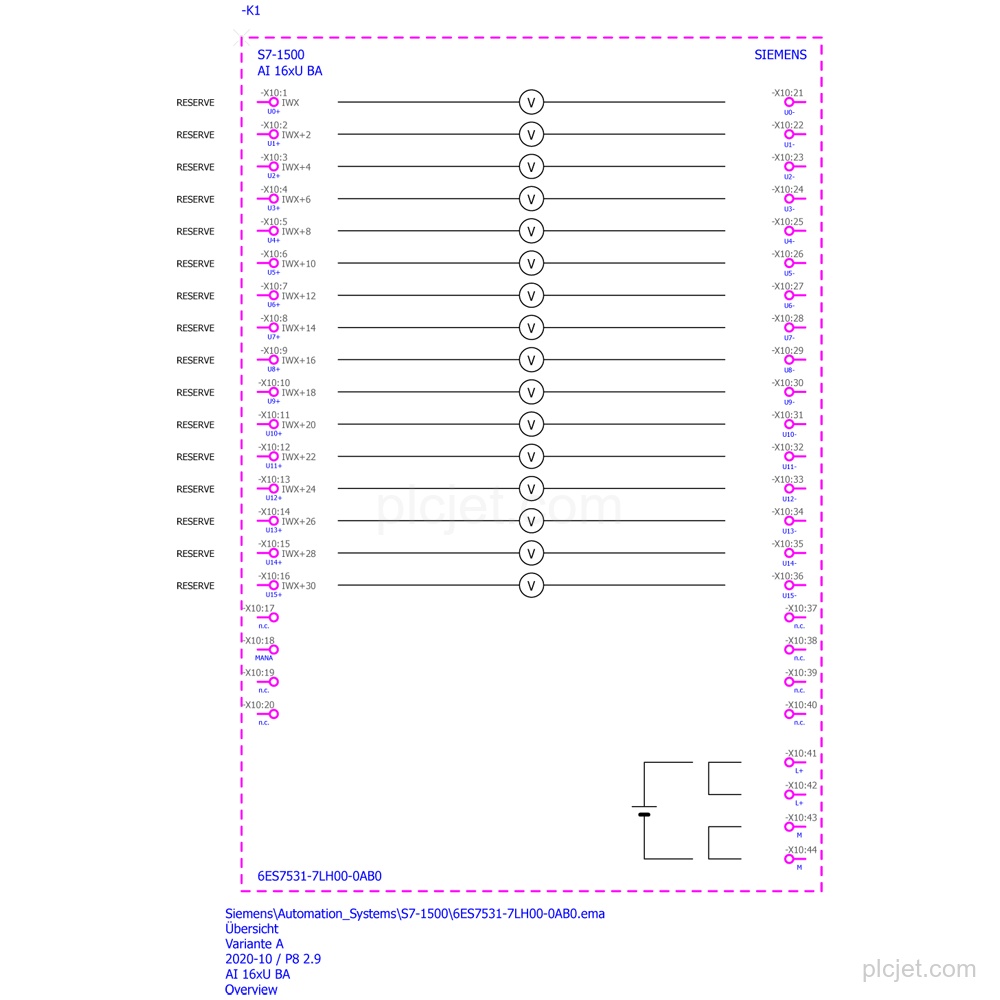

The module has 16 analog inputs for voltage measurement, with 16 channels in groups of 16.
Resolution with overrange is max. 16 bit; voltage operational error limit over the overall temperature range is (+/-) 0.5% relative to the input range.
Supported rated voltage ranges include 1 V to 5 V, -1 V to +1 V, -10 V to +10 V and -5 V to +5 V.
The module has diagnostics, diagnostic alarms, limit value alarms, wire-break monitoring for 1 … 5 V, overflow/underflow detection and hardware interrupts.
STEP 7 TIA Portal is configurable/integrated from V16 with HSP 312 / V17; PROFIBUS is supported from GSD V1.0 / V5.1 and PROFINET from GSD V2.3 / -.
Delivery includes the infeed element, shield bracket and shield terminal. The front connector with screw terminals or push-in is not included and must be ordered separately.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7531-7LH00-0AB0?
The product type is AI 16xU BA, a SIMATIC S7-1500 analog input module.
How many voltage measurement channels does the module have?
It has 16 analog inputs for voltage measurement, with 16 channels in groups of 16.
Which voltage ranges are supported?
The supported rated voltage ranges are 1 V to 5 V, -1 V to +1 V, -10 V to +10 V and -5 V to +5 V.
What is included and excluded in the delivery configuration?
The delivery includes the infeed element, shield bracket and shield terminal. The front connector with screw terminals or push-in is not included and must be ordered separately.
