Supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
Technical Summary
| Product type | AQ 8xU/I HS |
|---|---|
| Analog outputs | 8 |
| Resolution | 16 bit |
| Accuracy | 0.3% |
| Supply voltage | 24 V DC; permissible range 19.2 V DC to 28.8 V DC |
| Output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V; 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Oversampling | Yes; minimum cycle time 125 μs for all channels; maximum 16 values per cycle |
| Diagnostics | Yes; diagnostic alarm and supply-voltage monitoring |
| Included items | Infeed element, shielding bracket, and shield terminal |
| Exclusion | Front connector with screw terminals or push-in terminals must be ordered separately |

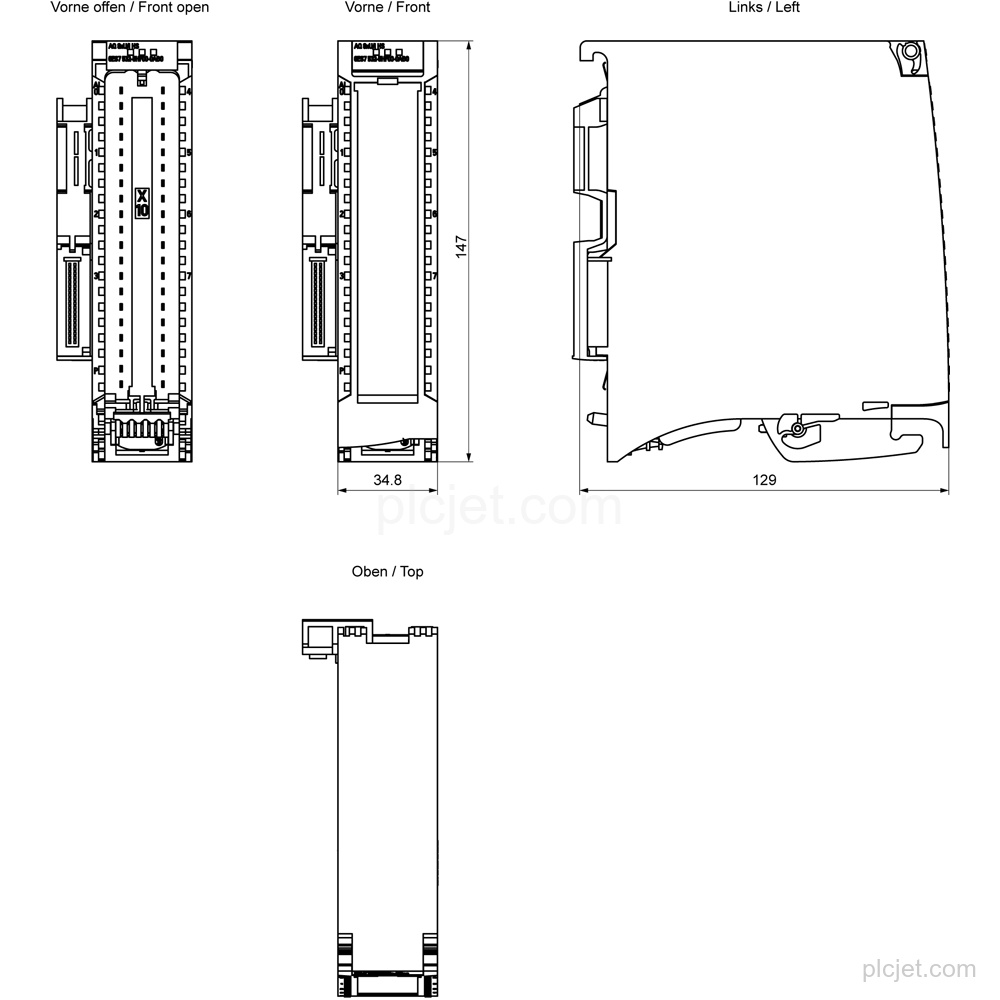

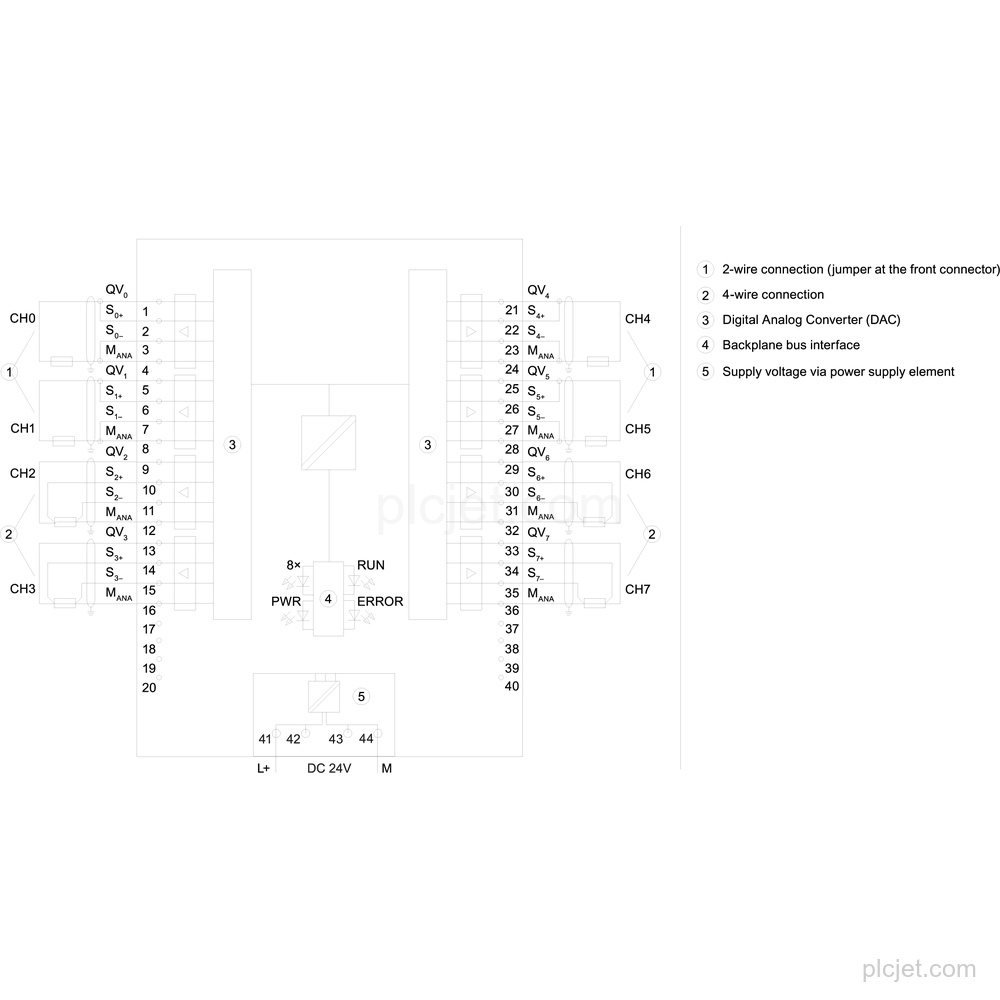

Key Features
8 analog output channels with voltage ranges of 0 to 10 V, 1 V to 5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
16-bit resolution with an accuracy of 0.3%; output ripple is 0.02% relative to the output range, and linearity error is 0.15% relative to the output range.
Oversampling is supported with a minimum cycle time of 125 μs for all channels, independent of the number of activated channels, and up to 16 values per cycle.
The module has diagnostics, diagnostic alarms, supply-voltage monitoring, substitute values, RUN and ERROR LEDs, and channel and module diagnostic indications.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC and reverse polarity protection.
Delivery includes the infeed element, shielding bracket, and shield terminal. The front connector with screw terminals or push-in terminals must be ordered separately.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7532-5HF00-0AB0?
It is a SIMATIC S7-1500 AQ8xU/I HS analog output module with 8 channels.
Which output ranges does this module support?
It supports 0 to 10 V, 1 V to 5 V, and -10 V to +10 V voltage ranges, plus 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA current ranges.
What is included in the delivery configuration?
It includes the infeed element, shielding bracket, and shield terminal. The front connector is not included and must be ordered separately.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
