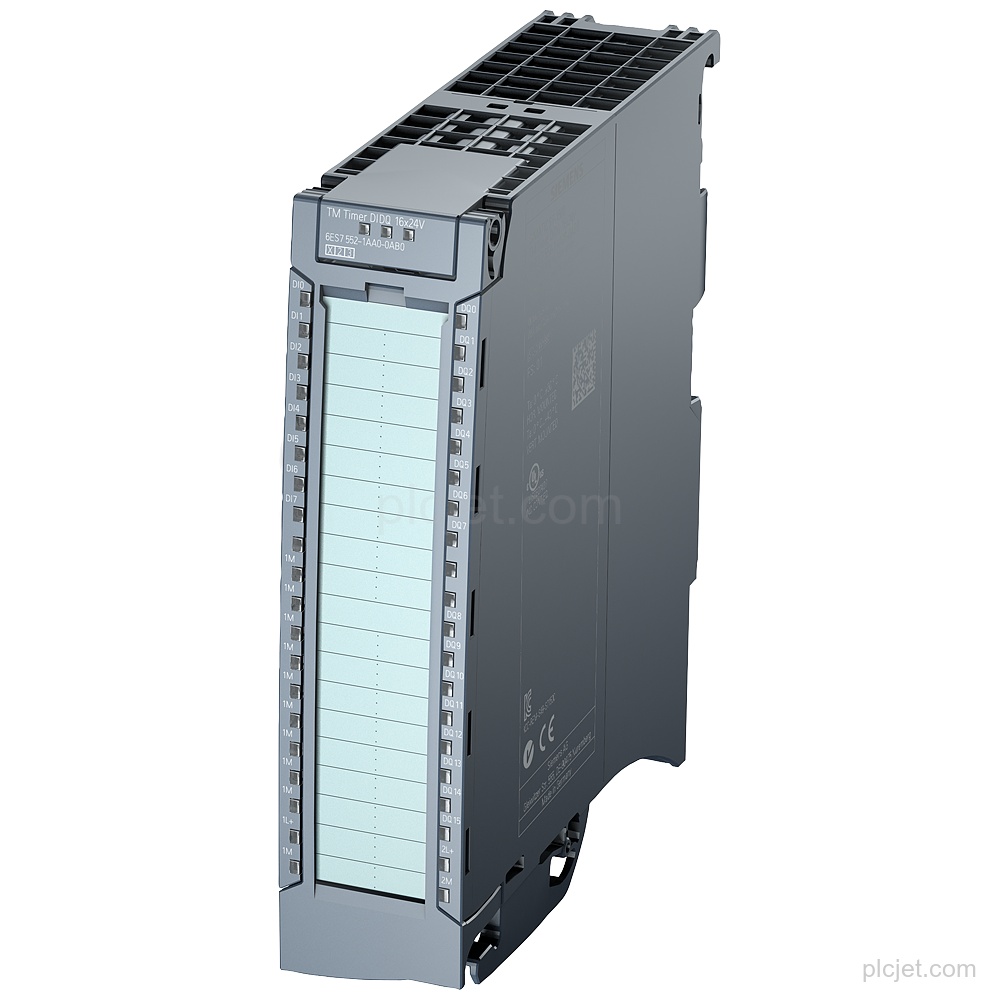

Product Overview
Technical Summary
| Product type | TM Timer DIDQ 16x24V |
|---|---|
| Digital inputs | 8; max. depending on parameterization |
| Digital outputs | 16; max. depending on parameterization |
| Load voltage 1L+ | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Load voltage 2L+ | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Counter functions | 4 counters; counting frequency, max. 200 kHz with quadruple evaluation |
| Encoder interface | Asymmetrical incremental encoder, 24 V initiator and 2-wire sensor |
| Isochronous mode | Bus cycle time (TDP), min. 250 μs; jitter, max. 1 μs |
| Mounting | S7-1500 mounting rail |
| Lifecycle | Product cancellation |

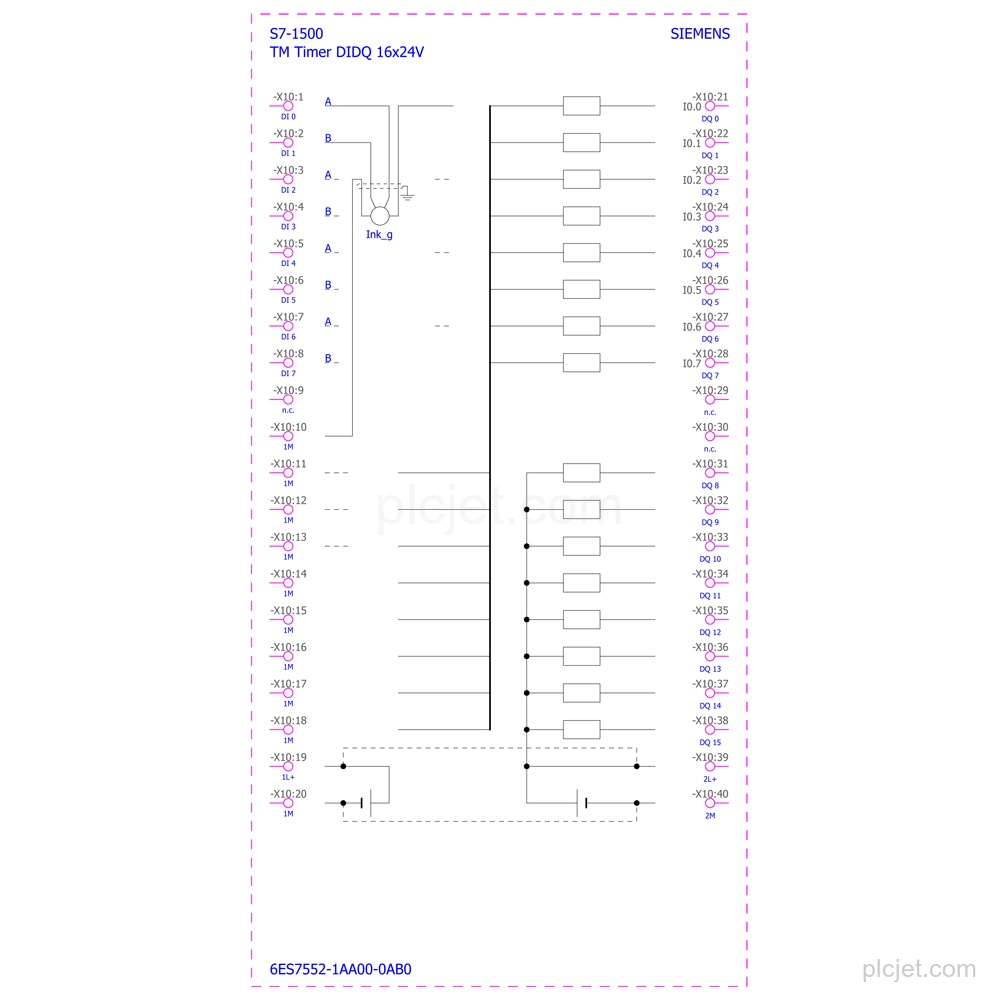

Key Features
8 parameterizable digital inputs and 16 parameterizable transistor digital outputs.
Supports digital inputs and outputs with time stamp, with up to 8 time-stamped inputs and 16 time-stamped outputs.
Provides 4 counters, counter support for incremental encoders, continuous counting and PWM output.
Supports digital input and digital output oversampling.
Rated load voltage is 24 V DC for load voltages 1L+ and 2L+; rail mounting on an S7-1500 mounting rail.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6ES7552-1AA00-0AB0?
It is the SIMATIC S7-1500 TM Timer DIDQ 16x24V.
How many digital inputs and outputs does the module have?
It has 8 parameterizable digital inputs and 16 parameterizable transistor digital outputs.
What supply voltage does the module use?
The rated load voltage is 24 V DC for load voltages 1L+ and 2L+, with a permissible range of 19.2 V to 28.8 V.

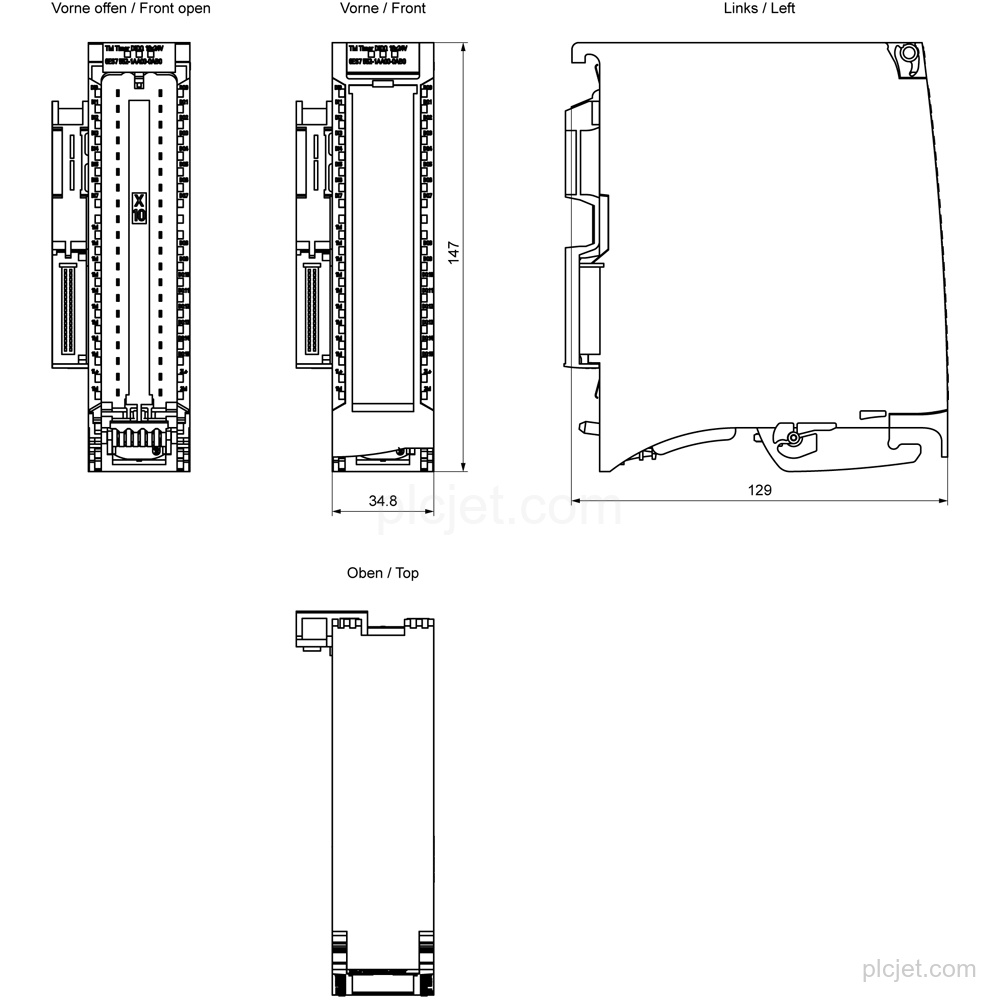

How is the module mounted?
It uses rail mounting on an S7-1500 mounting rail.
