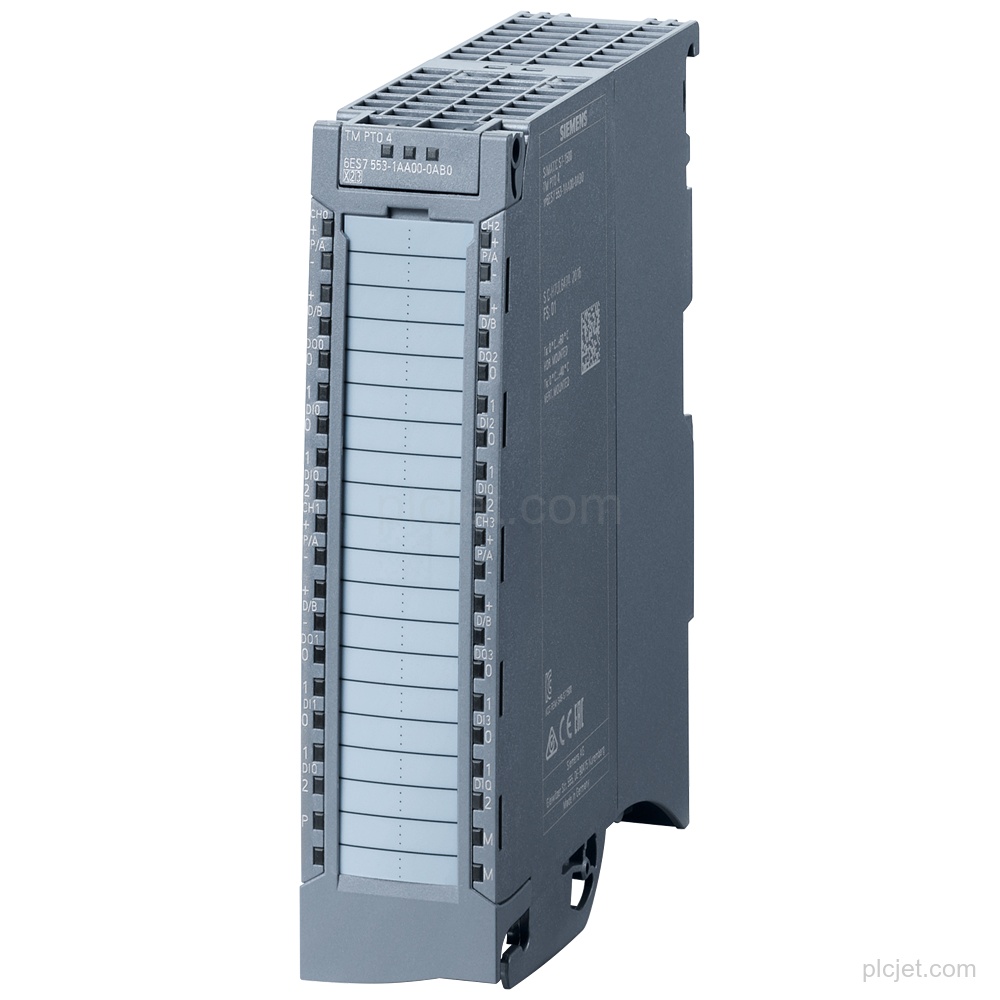

Product Overview
Applications
The module provides pulse train output interfaces for stepper drives.
Technical Summary
| Product type | TM PTO 4 |
|---|---|
| Channels | 4; Axes |
| Digital inputs | 12; 3 per channel, of which 1 DIQ |
| Digital outputs | 12; 3 per channel, of which 1 DIQ |
| Load voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| PTO signal type | Pulse and direction; count up, count down; incremental Encoder |
| Mounting | S7-1500 mounting rail |
| Product lifecycle | Product cancellation |
Key Features
TM PTO 4 provides 4 channels for stepper drives with pulse and direction, count up/count down, and incremental Encoder signal types.
Each channel has 3 digital inputs, including 1 DIQ, and 3 digital outputs, including 1 DIQ; inputs and outputs are parameterizable.
Rated load voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V and reverse polarity protection.
The module supports 24 V asymmetrical PTO signals and switching frequencies up to 200 kHz with DQn.0 and DQn.1.

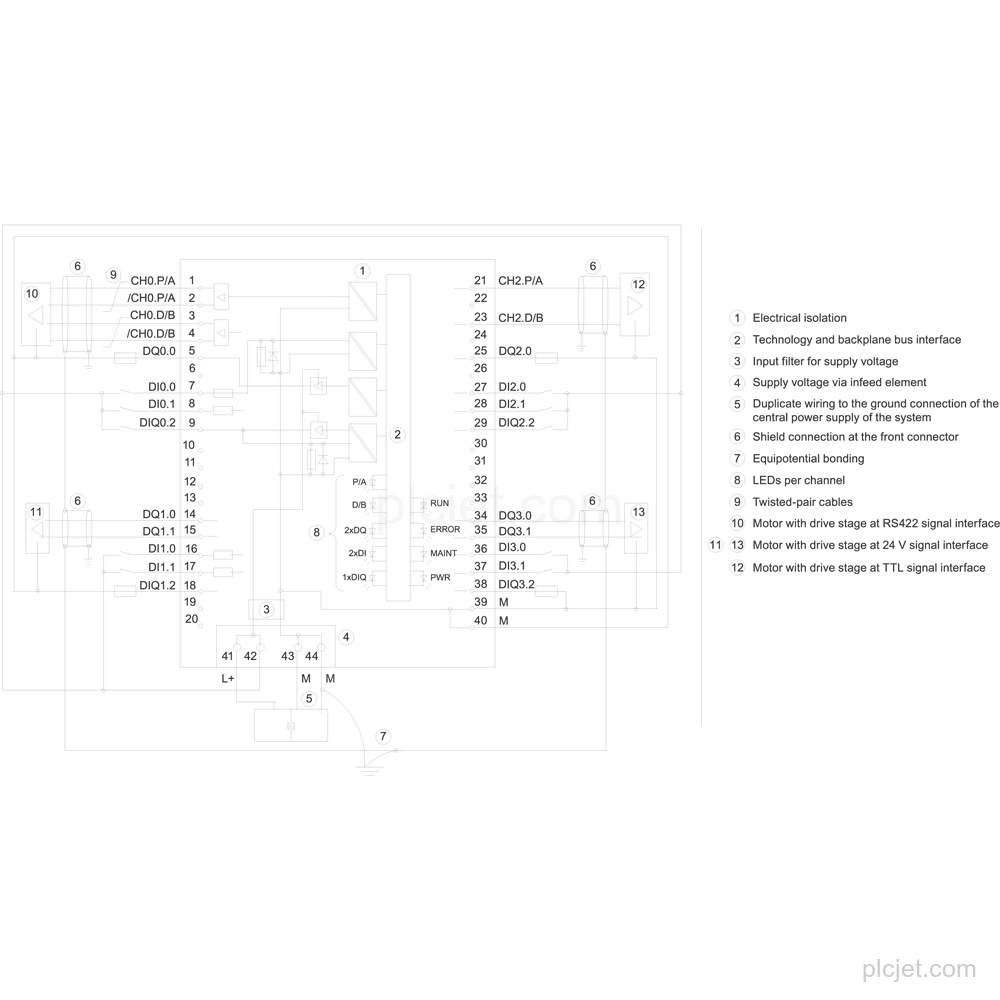

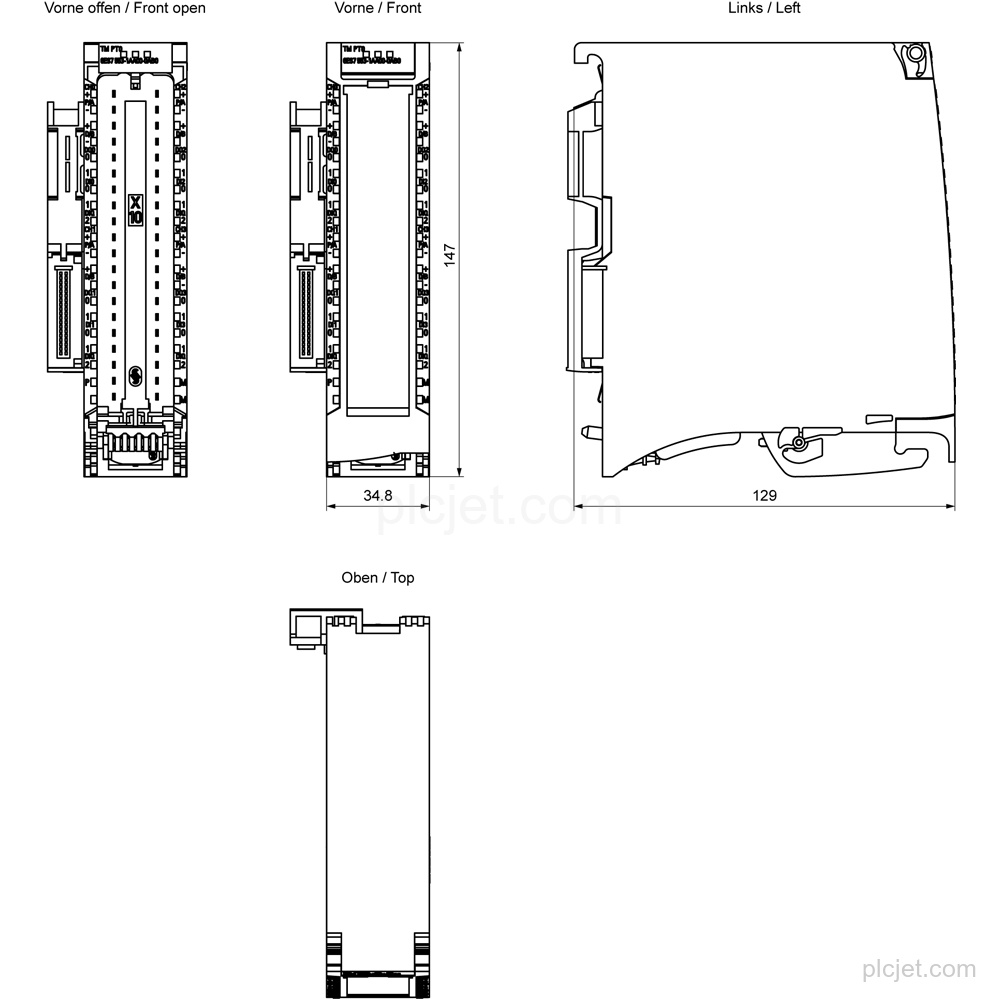

Rail mounting is supported on an S7-1500 mounting rail. Dimensions are 35 mm wide, 147 mm high, and 129 mm deep; weight is approximately 300 g.
Product lifecycle status: Product cancellation.
Frequently Asked Questions
What is the exact product type of 6ES7553-1AA00-0AB0?
The product type designation is TM PTO 4.
How many channels and digital I/O points does the module have?
It has 4 channels. Digital inputs total 12, with 3 per channel, including 1 DIQ; digital outputs total 12, with 3 per channel, including 1 DIQ.
What load voltage does the module require?
The rated load voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
How is the module mounted?
It supports rail mounting on an S7-1500 mounting rail.
