Product Overview
Technical Summary
| Product type | Front connector for 35 mm wide modules |
|---|---|
| Connection method | Screw terminals |
| Number of poles | 40 |
| Included items | 4 potential bridges and cable ties |
| Flexible cable cross-section without end sleeve | 0.25 mm2 to 1.5 mm2 |
| Flexible cable cross-section with end sleeve | 0.25 mm2 to 1.5 mm2 |
| Tightening torque | 0.4 N·m to 0.7 N·m |
Key Features
Front connector for 35 mm wide modules with a 40-pole screw-type connection system.
Connection method: screw terminals.
Includes 4 potential bridges and cable ties.
Connectable cable cross-sections are 0.25 mm2 to 1.5 mm2 for flexible cables without or with end sleeve; massive cables are supported from 0.25 mm2 to 1.5 mm2.

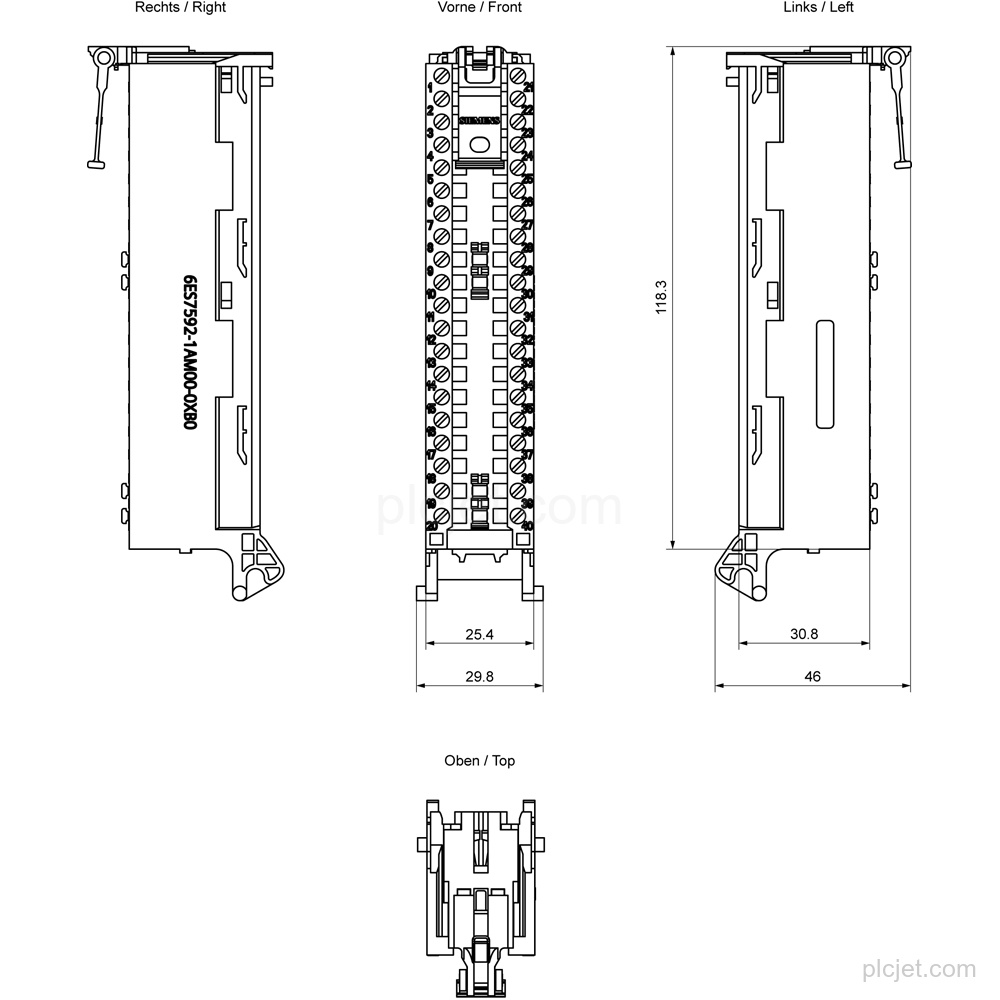

Dimensions: 29.8 mm wide, 130.5 mm high and 46 mm deep; weight, approx. 123 g.
Frequently Asked Questions
What is the exact product type of 6ES7592-1AM00-0XB0?
It is a Siemens SIMATIC S7-1500 front connector with a 40-pole screw-type connection system for 35 mm wide modules.
Which connection method does this front connector use?
It uses screw terminals.
What does the configuration include?
It includes 4 potential bridges and cable ties.
What cable cross-sections can be connected?
Flexible cables without or with end sleeve can be 0.25 mm2 to 1.5 mm2. Massive cables can also be 0.25 mm2 to 1.5 mm2.
