Product Overview
Technical Summary
| Product type | CPU 416-5H PN/DP |
|---|---|
| Product lifecycle | Active Product |
| Work memory | 16 Mbyte integrated: 6 Mbyte program, 10 Mbyte data |
| Interfaces | MPI/PROFIBUS DP, PROFINET, 2 synchronization-module interfaces |
| PROFINET IO Controller | Yes; maximum transmission rate 100 Mbit/s |
| Connectable PROFINET IO Devices | 256 maximum; in redundant mode via both interfaces |
| PROFIBUS DP master | Yes; 32 maximum connections, 12 Mbit/s maximum |
| Engineering software | STEP 7 V5.5 SP2 with HF1 or later |
Key Features

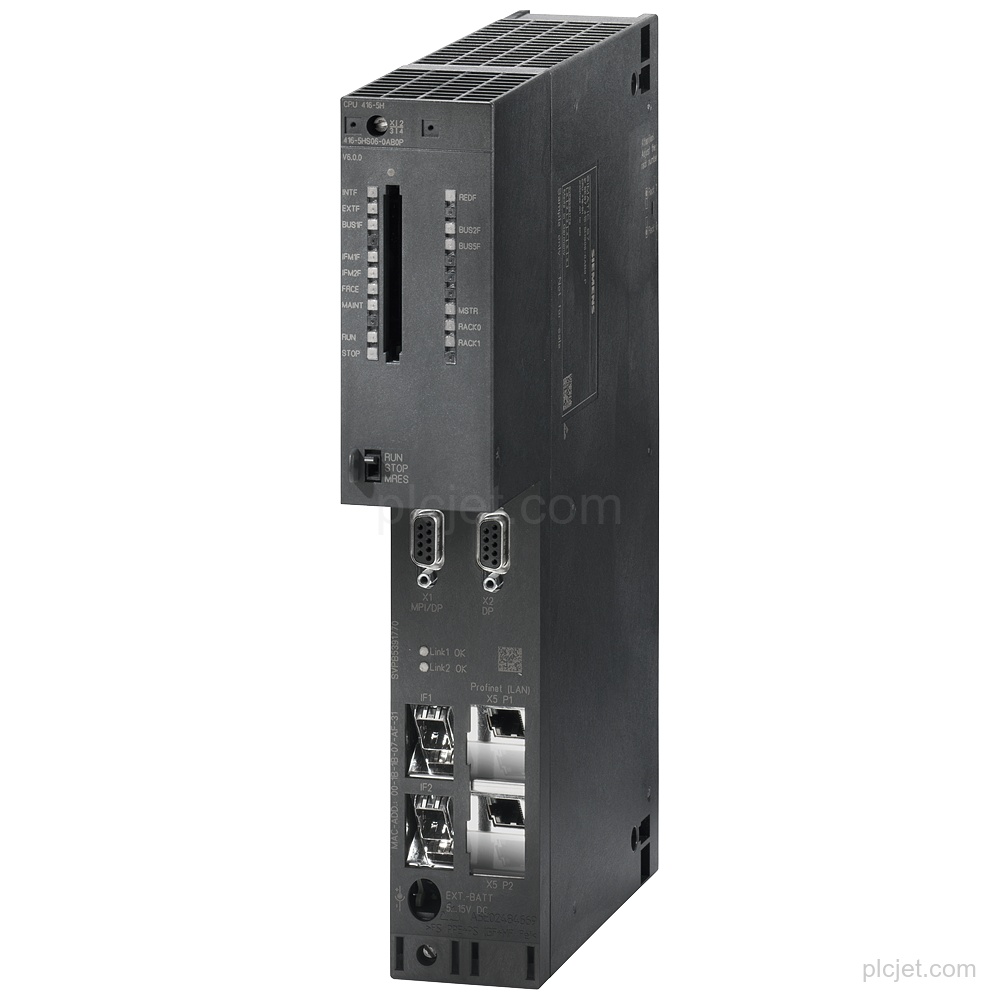

Product type designation: CPU 416-5H PN/DP for SIMATIC S7-400H.
16 Mbyte integrated work memory: 6 Mbyte for the program and 10 Mbyte for data; not expandable.
Interfaces include MPI/PROFIBUS DP, PROFINET, and 2 interfaces for synchronization modules.
PROFINET IO Controller is supported at a maximum transmission rate of 100 Mbit/s, with up to 256 connectable IO Devices.
The PROFIBUS DP master supports up to 32 connections and a maximum transmission rate of 12 Mbit/s.

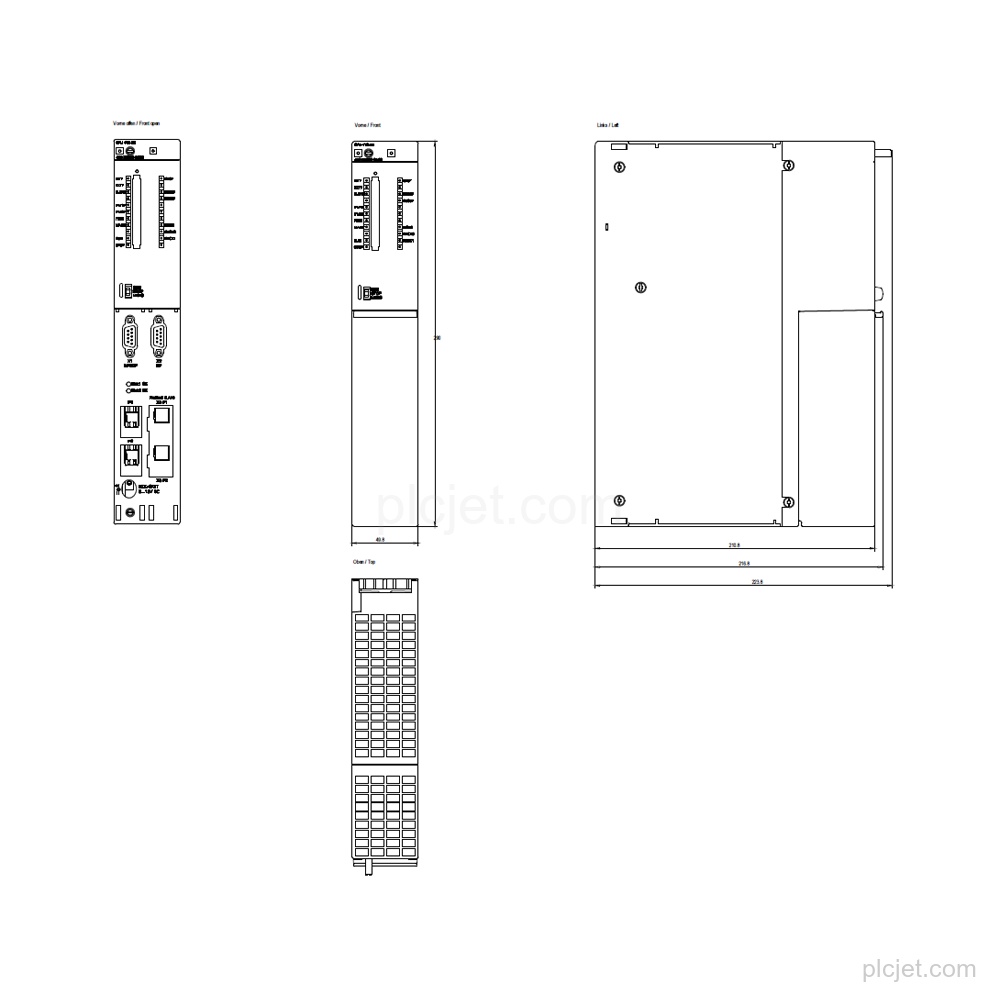

Engineering is supported as of STEP 7 V5.5 SP2 with HF1. Dimensions are 50 mm wide, 290 mm high, and 219 mm deep; weight is approximately 995 g.
Frequently Asked Questions
What exact Siemens line item is this?
It is Siemens 6ES7416-5HS06-0AB0, product type CPU 416-5H PN/DP.
What memory does the CPU have?
It has 16 Mbyte integrated work memory: 6 Mbyte for the program and 10 Mbyte for data. The work memory is not expandable.
Which communication interfaces are supported?
It supports MPI/PROFIBUS DP, PROFINET, and 2 interfaces for synchronization modules. PROFINET IO Controller supports up to 256 connectable IO Devices.
Which software version is supported for engineering?
Engineering is supported as of STEP 7 V5.5 SP2 with HF1.
What information should be included for a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines with the exact 6ES7416-5HS06-0AB0 line item.
