Product Overview
Applications
For use in hazardous locations.
For maritime application.
Technical Summary
| Interface | TTY interface |
|---|---|
| Coupling | PTP coupling with CP441 AB CP 441-AA05 |
| Maximum transmission rate | 19.2 kbit/s |
| Maximum current consumption | 15 mA from 3.3 V; 23 mA from 24 V |
| Typical power loss | 0.6 W |
| Product lifecycle | Announcement of product phase-out |
Key Features
IF963-TTY interface module with TTY interface for PTP coupling with CP441 AB CP 441-AA05.
Maximum transmission rate: 19.2 kbit/s.
Maximum cable length: 1 000 m at 9 600 bps.
Maximum current consumption: 15 mA from 3.3 V; 23 mA from 24 V.

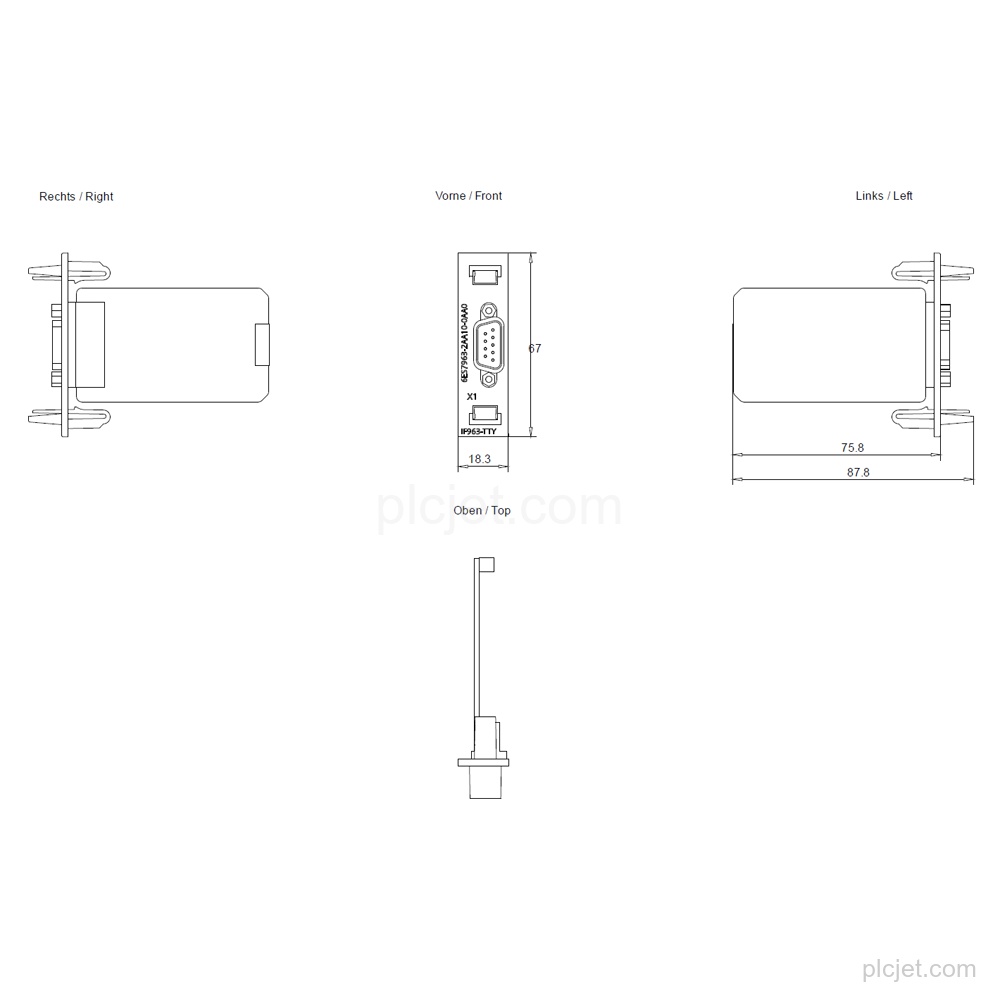

Dimensions: 19 mm width, 67 mm height, and 87 mm depth; weight approximately 80 g.
Announcement of product phase-out.
Frequently Asked Questions
What is the exact product type?
It is the Siemens 6ES7963-2AA10-0AA0 SIMATIC S7-400 IF963-TTY interface module with a TTY interface for PTP coupling with CP441 AB CP 441-AA05.
What transmission rate does the IF963-TTY support?
The maximum transmission rate is 19.2 kbit/s.
What cable length is supported?
The maximum cable length is 1 000 m at 9 600 bps.
What are the module dimensions and weight?
The module is 19 mm wide, 67 mm high, and 87 mm deep, with an approximate weight of 80 g.
