Product Overview
Applications
Supports PROFINET IO Controller functionality, also simultaneously with IO-Device functionality.
Supports PROFIBUS DP master and PROFIBUS DP device functionality.
Engineering uses STEP 7 V5.5 or higher and Distributed Safety V5.4 SP4.

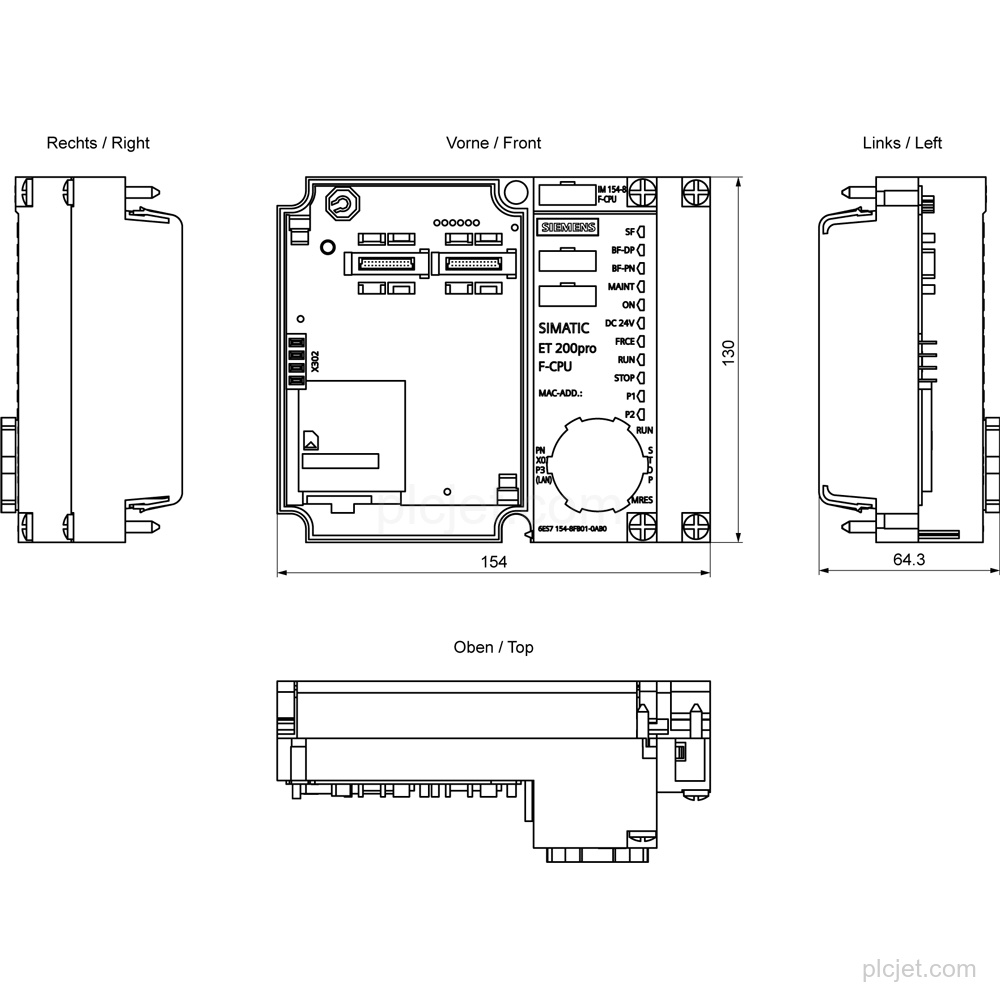

Technical Summary
| Product type | IM 154-8F PN/DP CPU |
|---|---|
| Integrated work memory | 512 kbyte; not expandable |
| Supply voltage | 24 V DC rated value |
| PROFINET interface | 3 ports; 10/100 Mbit/s; integrated switch |
| PROFIBUS DP master | 12 Mbit/s maximum; 124 DP devices maximum |
| PROFINET IO Controller | 100 Mbit/s maximum; 128 connectable IO Devices maximum |
| Protection | IP65/67 |
| Required components | Micro Memory Card and connection module |
Key Features
IM 154-8F PN/DP CPU for ET200 PRO.
512 kbyte integrated work memory; not expandable.
Integrated PROFINET interface and PROFIBUS DP master/slave interface.
Rated supply voltage: 24 V DC.
Degree of protection: IP65/67.
Micro Memory Card and connection module required.
Frequently Asked Questions
What exact Siemens line item is this?
It is Siemens 6ES7154-8FB01-0AB0, an IM 154-8F PN/DP CPU for ET200 PRO.
What memory and supply does this CPU have?
It has 512 kbyte integrated work memory, which is not expandable, and a 24 V DC rated supply voltage.

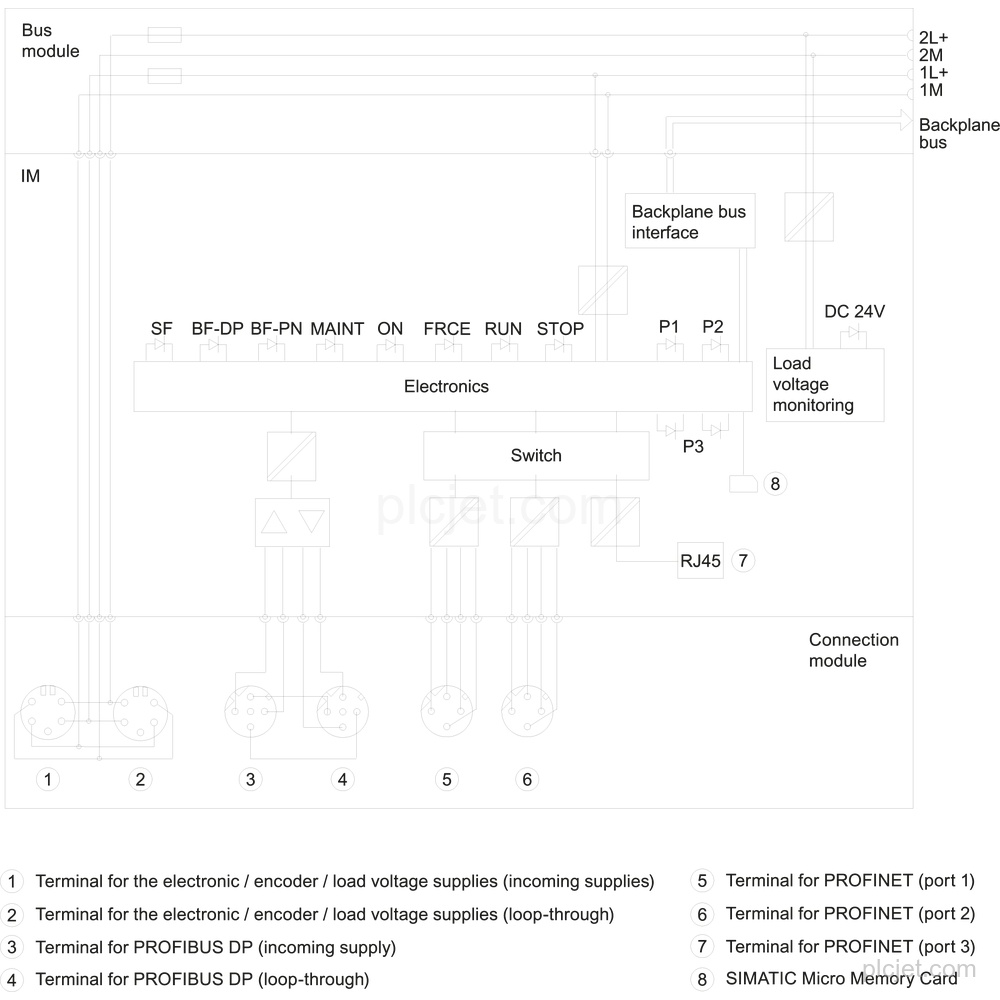

Which interfaces and protocols are provided?
It has an integrated PROFINET interface with 3 ports and an integrated PROFIBUS DP master/slave interface. PROFINET IO Controller and IO-Device functionality are supported simultaneously.
What should be confirmed for a project quotation?
Confirm the requested quantity, destination, schedule context, and any additional BOM lines. The Micro Memory Card and connection module are required.
