Product Overview
Technical Summary
| Product type | CPU 1512SP-1 PN |
|---|---|
| Function | Central processing unit for ET 200SP |
| Program work memory | 200 kbyte |
| Data work memory | 1 Mbyte |
| PROFINET interface | 1; PROFINET IRT with 3-port switch |
| Bit performance | 48 ns |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| SIMATIC Memory Card | Required; 1 slot |
| BusAdapter | Required for port 1 and port 2 |
Key Features

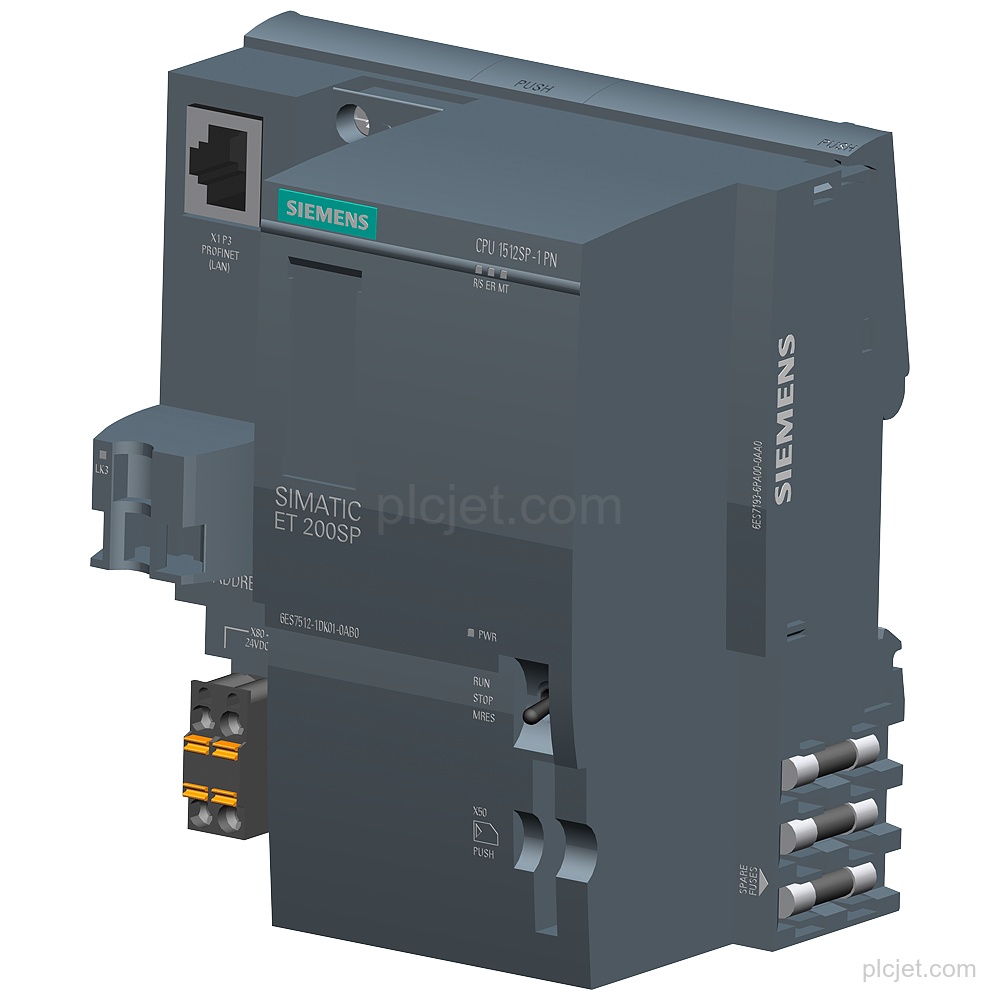

CPU 1512SP-1 PN for ET 200SP with central processing unit functionality.
Integrated work memory: 200 kbyte for the program and 1 Mbyte for data.
1 PROFINET interface with a 3-port switch and 48 ns bit performance.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
A SIMATIC Memory Card is required. A BusAdapter is required for port 1 and port 2.

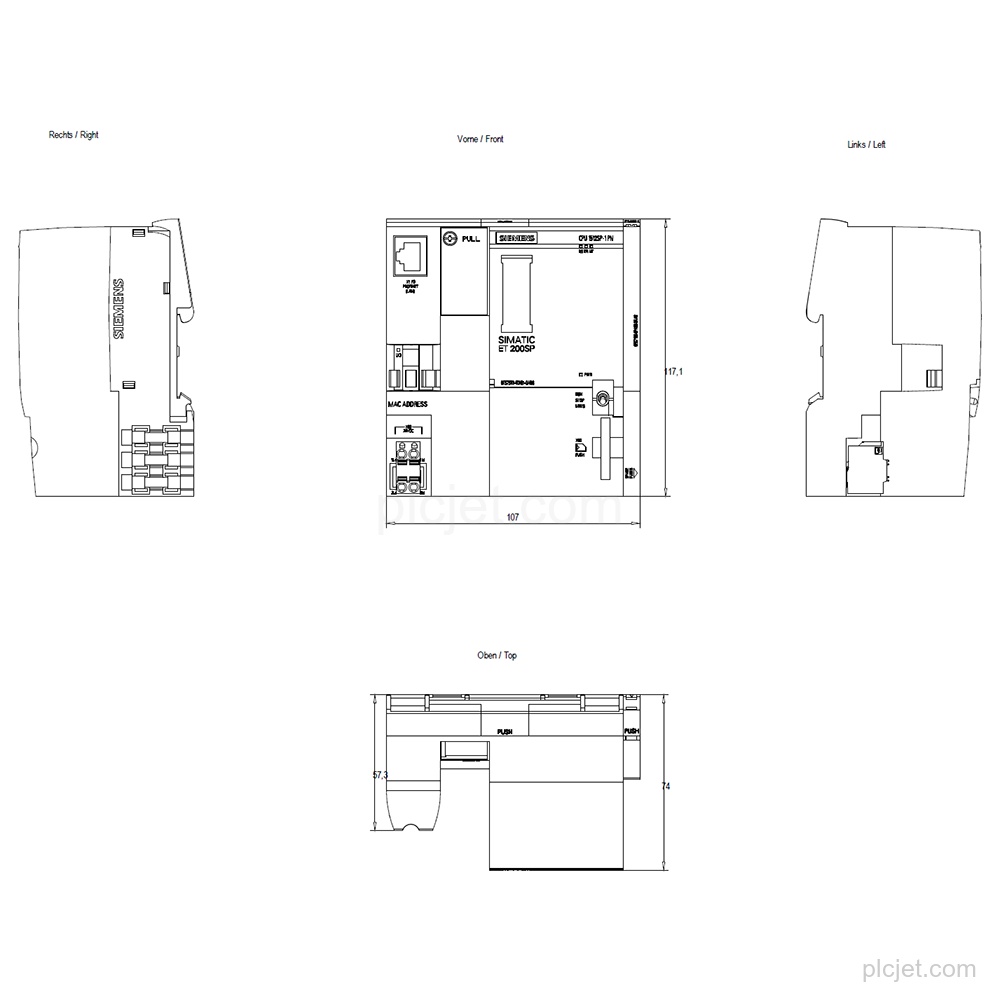

Dimensions: 100 mm width, 117 mm height and 75 mm depth; weight, approx.: 310 g.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7512-1DK01-0AB0?
The product type is CPU 1512SP-1 PN, a central processing unit for ET 200SP.
What memory does the CPU 1512SP-1 PN have?
It has 200 kbyte of integrated work memory for the program and 1 Mbyte for data.
What interface does this CPU provide?
It provides 1 PROFINET IRT interface with a 3-port switch and 48 ns bit performance.
What is required for the configuration?
A SIMATIC Memory Card is required, and a BusAdapter is required for port 1 and port 2.
Can this line item be included in a project quotation?
Yes. Include the exact order number, requested quantity, destination, schedule context and any additional BOM lines in the quotation request.
