Product Overview
Technical Summary
| Product type | CPU 1512SP F-1 PN |
|---|---|
| Program memory | 300 kbyte |
| Data memory | 1 Mbyte |
| SIMATIC Memory Card | Required; plug-in load memory up to 32 Gbyte |
| PROFINET interface | 1; PROFINET IRT with 3-port switch |
| Bit performance | 48 ns |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| Safety performance level | PLe according to ISO 13849-1; SIL 3 according to IEC 61508 |
| Product lifecycle | Product cancellation |
Key Features
CPU 1512SP F-1 PN for ET 200SP; product lifecycle: Product cancellation.
Integrated work memory: 300 kbyte for the program and 1 Mbyte for data. A SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.
1 PROFINET interface with PROFINET IRT and a 3-port switch; bit performance is 48 ns.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
Performance level PLe according to ISO 13849-1 and SIL 3 according to IEC 61508 in safety mode.

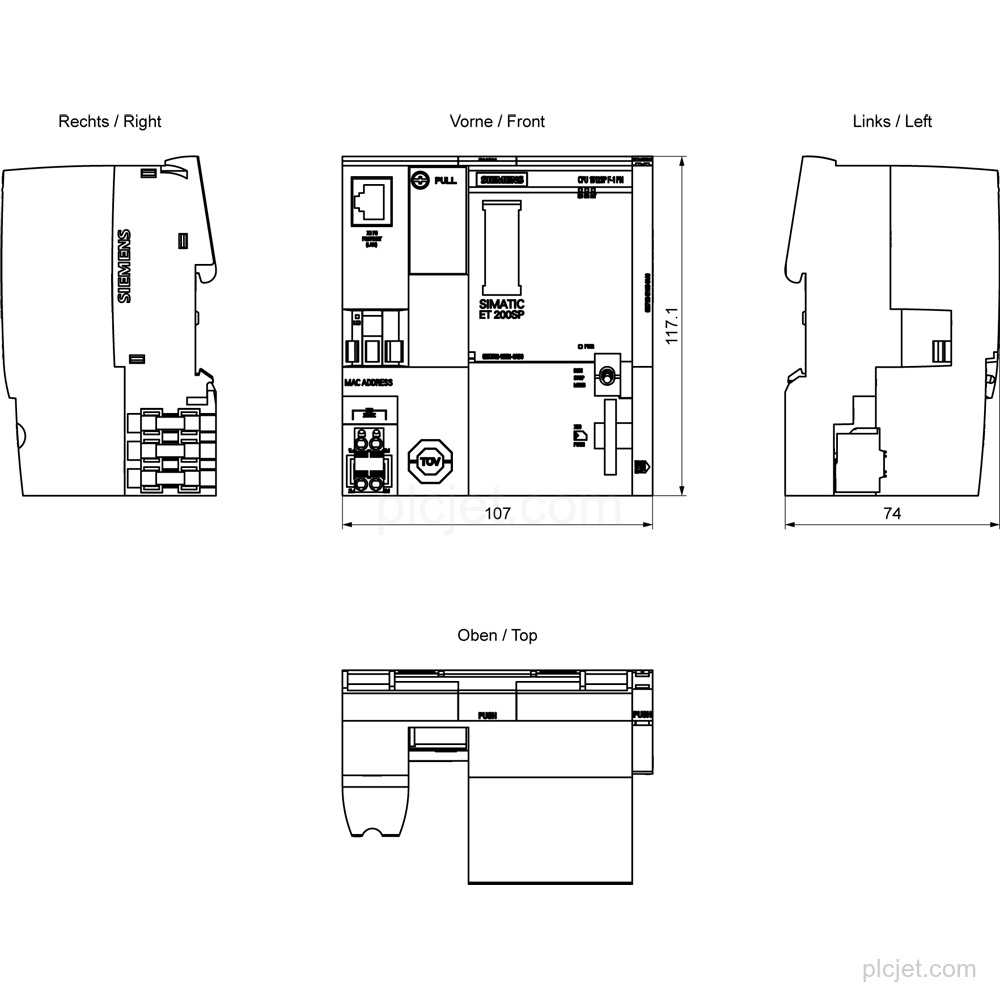

Dimensions: 100 mm width, 117 mm height and 75 mm depth; weight: approximately 310 g.
Frequently Asked Questions
What is the exact Siemens model and product type?
The exact model is 6ES7512-1SK01-0AB0, with product type CPU 1512SP F-1 PN for ET 200SP.
What memory does the CPU provide?
It has 300 kbyte integrated work memory for the program and 1 Mbyte for data. A SIMATIC Memory Card is required, with plug-in load memory up to 32 Gbyte.
Which network interface does this CPU have?
It has 1 PROFINET interface with PROFINET IRT and a 3-port switch. A BusAdapter is required for port 1 and port 2.
What supply voltage is supported?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
