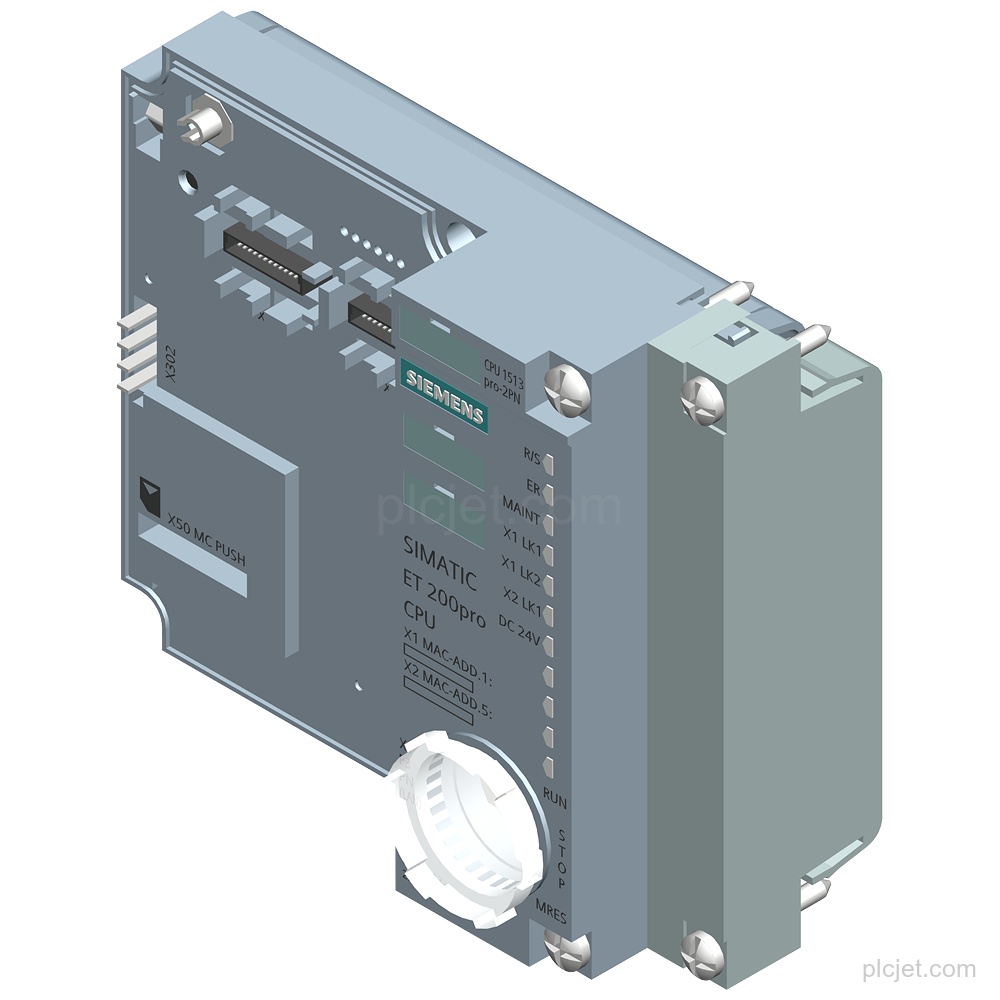

Product Overview
Technical Summary
| Product type | CPU 1513pro-2 PN |
|---|---|
| Interfaces | 2 PROFINET interfaces; 1st interface PROFINET IRT with 3-port switch, 2nd interface PROFINET RT |
| Program work memory | 600 KB |
| Data work memory | 2.5 MB |
| Bit operation processing time | 6 ns, typical |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 20.4 V to 28.8 V DC |
| Protection | IP65/67 |
| SIMATIC Memory Card | Required; 1 slot |
| Connection module | Required |
Key Features
1st interface: PROFINET IRT with 3-port switch; 2nd interface: PROFINET RT.
600 KB for the program and 2.5 MB for data.
Bit operations have a typical processing time of 6 ns.
Rated DC supply voltage: 24 V; permissible range: 20.4 V to 28.8 V.
Degree of protection: IP65/67. A SIMATIC Memory Card and connection module are required.
Frequently Asked Questions
What is the exact product designation?
The exact product designation is 6ES7513-2PM03-0AB0, CPU 1513pro-2 PN.
What memory does this CPU have?
It has 600 KB of work memory for the program and 2.5 MB for data. Plug-in SIMATIC Memory Card load memory is supported up to 32 Gbyte.
Which interfaces are provided?
It has 2 PROFINET interfaces. The 1st interface is PROFINET IRT with a 3-port switch, and the 2nd interface is PROFINET RT.
What is required for the configuration?
A SIMATIC Memory Card and connection module are required.
Can this line item be included in a quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
