Product Overview
Applications
Supports Motion Control technology objects, with 2 400 available Motion Control resources for technology objects.
Supports PID_Compact, PID_3Step and PID-Temp controllers with integrated optimization.
Technical Summary
| Product type | CPU1515SP PC2 F – IndOS |
|---|---|
| Software controller | S7-1500 Software Controller CPU 1505SP F |
| Main memory | 8 GB RAM |
| CFast flash memory | 128 GB |
| Rated DC supply voltage | 24 V |
| Permissible DC supply range | 19.2 V to 28.8 V |
| PROFINET interfaces | 1 |
| Industrial Ethernet interfaces | 2 |
| PROFIBUS interfaces | 1; Via CM DP module |
| Connectable IO Devices, max. | 128 |
Key Features
S7-1500 Software Controller CPU 1505SP F is preinstalled; the product type designation is CPU1515SP PC2 F – IndOS.
Main memory: 8 GB RAM. CFast flash memory: 128 GB. A SIMATIC memory card is not required.

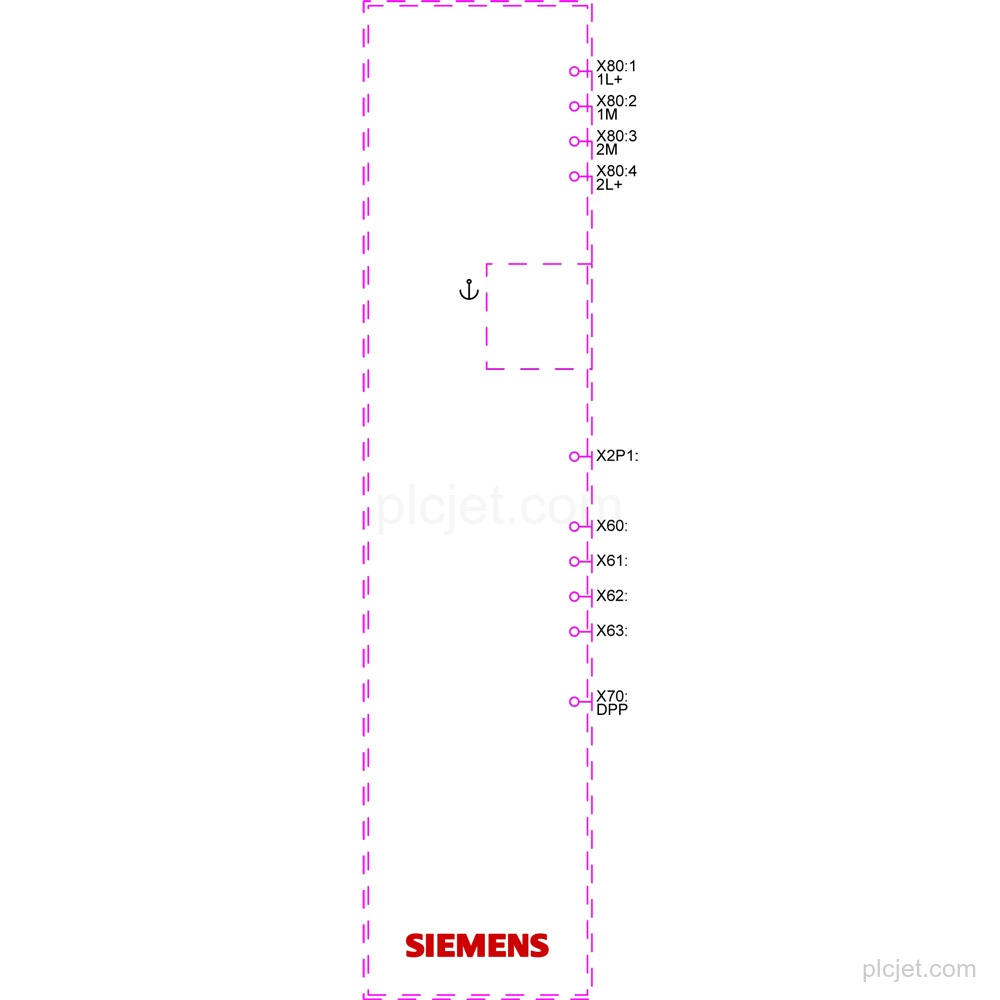

Interfaces include 1 PROFINET interface, 2 industrial Ethernet interfaces, 1 PROFIBUS interface via CM DP module, 4 USB interfaces and 1 DisplayPort.
Rated DC supply voltage: 24 V. Permissible DC range: 19.2 V to 28.8 V. Reverse polarity protection: Yes.
PROFINET IO Controller and PROFINET IO Device are supported, with up to 128 connectable IO Devices.
Packaging dimensions L × W × H: 19.00 x 14.10 x 9.50 cm. Net weight: 1.034 kg.
Frequently Asked Questions
What exact product is 6ES7677-2SB43-0GB1?
It is a SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 F, with product type designation CPU1515SP PC2 F – IndOS.
What memory and storage configuration does it have?
It has 8 GB RAM and 128 GB CFast flash memory. A SIMATIC memory card is not required.
Which communication interfaces are included?
It has 1 PROFINET interface, 2 industrial Ethernet interfaces, 1 PROFIBUS interface via CM DP module, 4 USB interfaces and 1 DisplayPort.
What supply voltage does this configuration use?
The rated DC supply voltage is 24 V, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
