Product Overview
Technical Summary
| Product type | Extension Unit 22" KP48 PN |
|---|---|
| Control elements | 4x Key Panel 12; tactile feedback; parameterizable keys |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 150 mA, without load |
| Active power input | 3.6 W typical; additional 2.6 W per KP12 |
| PROFINET interfaces | 2, including switch |
| Safety-related contact connection | 8-pin connector |
| Mounting | 16:9 HMI / IPC PRO device lower part; screwed joint |
| Protection | IP65 all-round |
| Functional lighting | Freely configurable colors: Red, green, blue, white, yellow |
Key Features

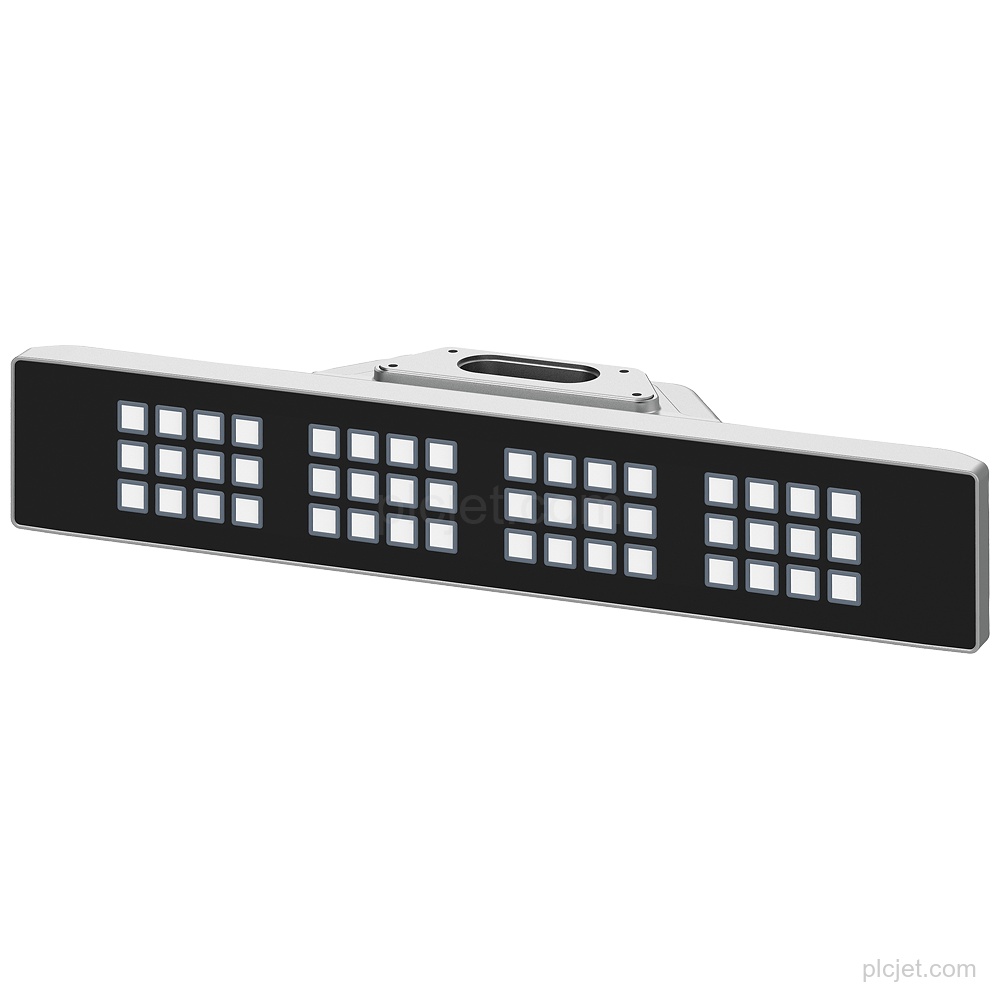

Extension Unit 22" KP48 PN.
4x Key Panel 12 with tactile feedback and parameterizable keys.
Yes; freely configurable colors: Red, green, blue, white, yellow.
DC, rated value 24 V; permissible range 19.2 V to 28.8 V.
2, including switch; supports line and ring construction without an external switch.
For mounting on a 16:9 HMI / IPC PRO device lower part by screwed joint; IP65 all-round. Without free installation positions.
Frequently Asked Questions
What is the exact product type of Siemens 6AV2185-8FE08-0AA0?
It is an Extension Unit 22" KP48 PN with 4x Key Panel 12.
What supply voltage and PROFINET interfaces does it have?
Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. It has 2 PROFINET interfaces, including a switch.
How is this Extension Unit mounted?
It is mounted on the lower part of a 16:9 HMI / IPC PRO device by screwed joint. It is not for rack mounting or front mounting.
Does the configuration include free installation positions?
It is without free installation positions.
What should be included in a quotation request?
Include the exact line item, requested quantity, destination, schedule context, and any additional BOM lines.
