Product Overview
Applications
Supports connection of an emergency stop sensor through PROFIsafe.

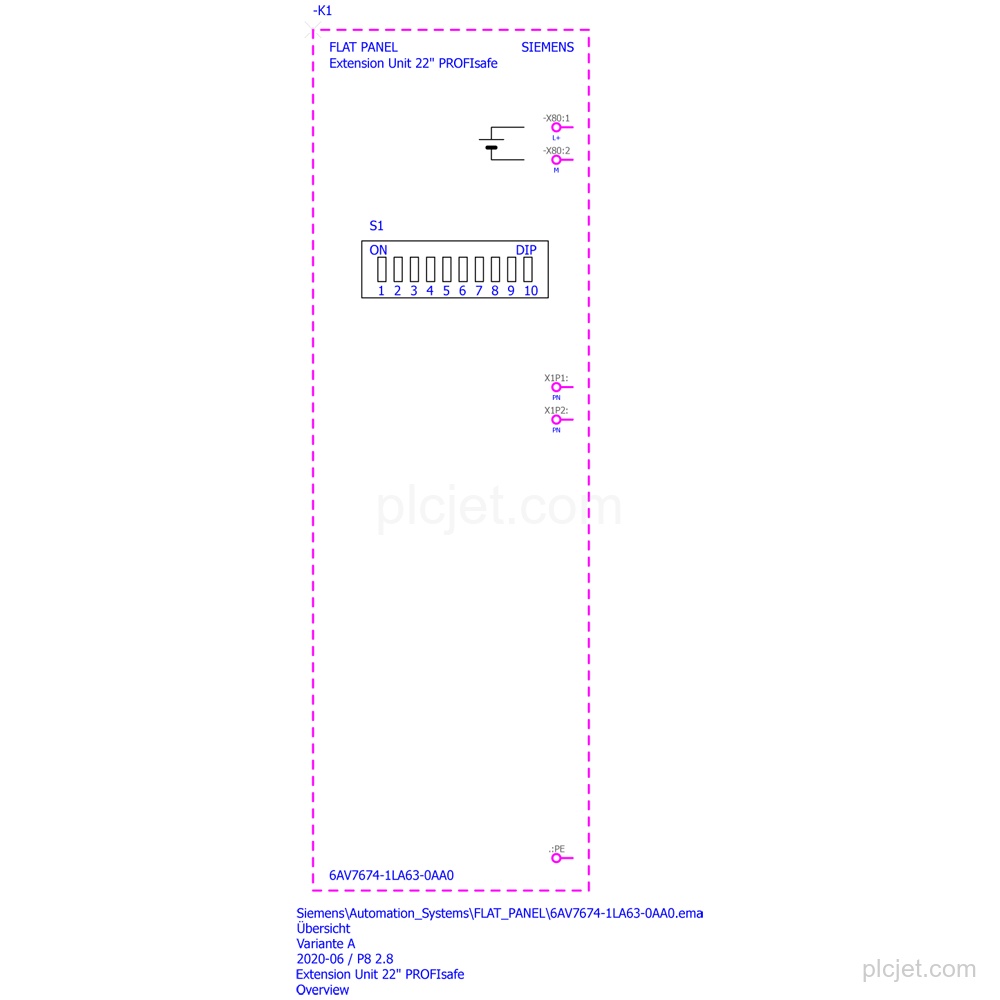

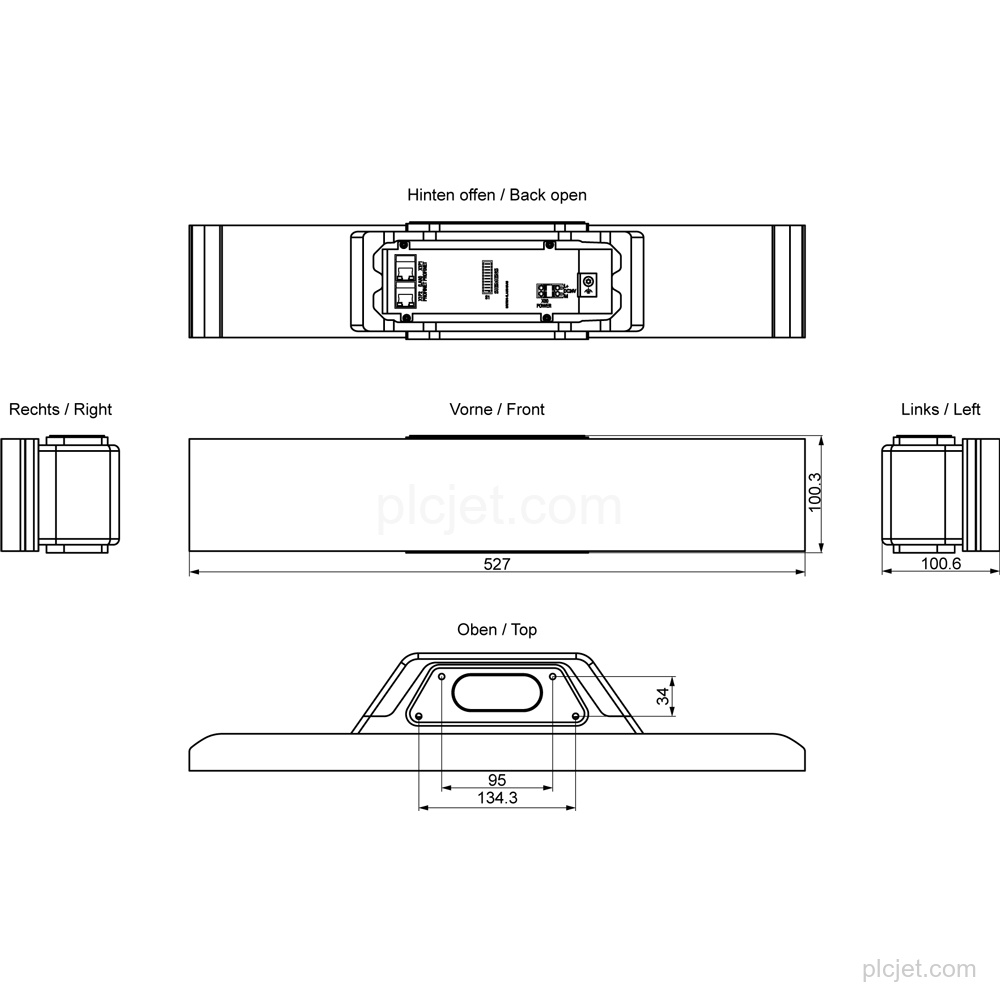

Technical Summary

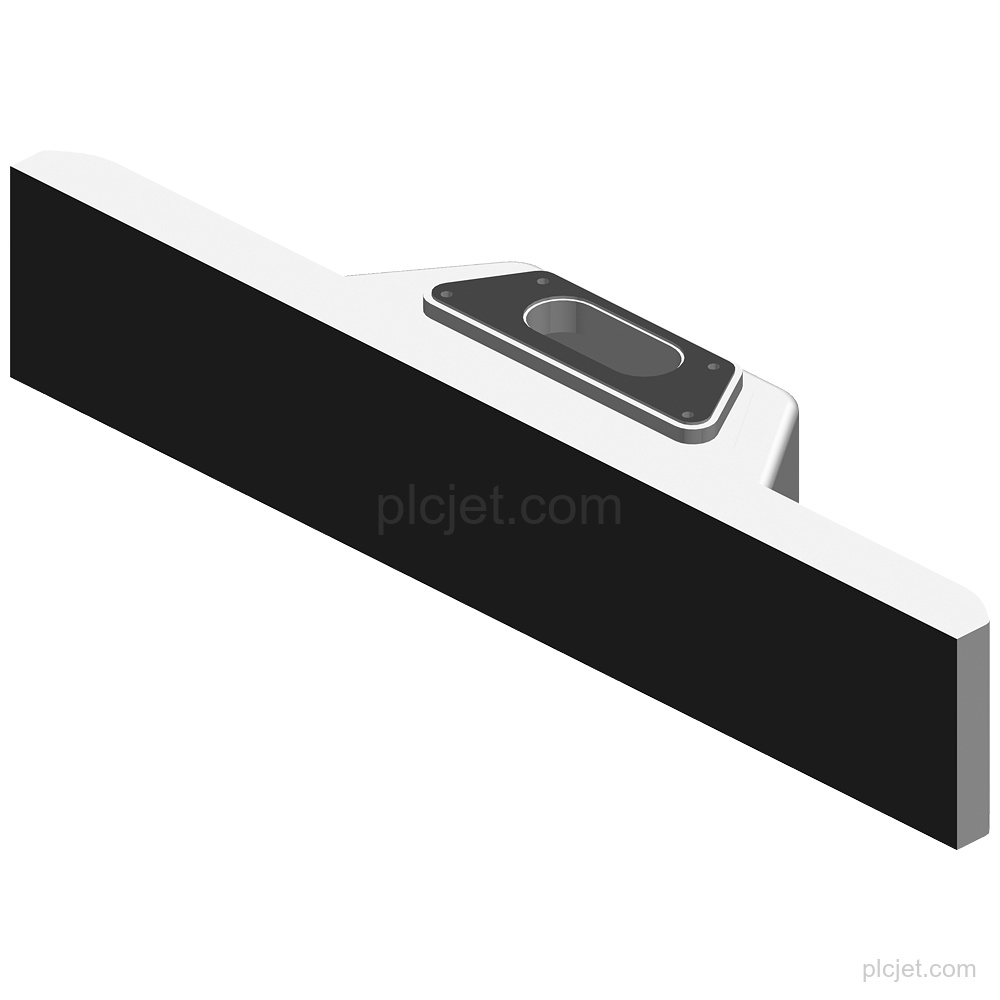

| Product type | Extension Unit 22" PROFIsafe |
|---|---|
| Control element capacity | 12 mounting positions; 12 control elements can be installed |
| Mounting | Lower part of a 16:9 HMI / IPC PRO device; screwed joint |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| PROFIsafe | 1x SIL 2 (two-channel) or 2x SIL 3 (single-channel) emergency stop sensor |
| Industrial Ethernet interfaces | 2; for constructing lines and rings without an external switch |
| PROFINET interfaces | 2; including switch |
| Protection | IP65 all-round; Enclosure Type 4x at the front |
Key Features
12 control elements can be installed in 12 mounting positions; control elements are ordered separately.
Designed for mounting on the lower part of a 16:9 HMI / IPC PRO device using a screwed joint.
PROFIsafe supports 1x SIL 2 (two-channel) or 2x SIL 3 (single-channel) emergency stop sensor.
Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
It has 2 industrial Ethernet interfaces for constructing lines and rings without an external switch, and 2 PROFINET interfaces including a switch.
All-round protection is IP65; the front has Enclosure Type 4x.
Frequently Asked Questions
What is the exact product type of 6AV7674-1LA63-0AA0?
It is an Extension Unit 22" PROFIsafe.
How is the Extension Unit mounted?
It is mounted on the lower part of a 16:9 HMI / IPC PRO device using a screwed joint.
What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Are the control elements included?
It is without control elements; control elements are ordered separately.
