Product Overview
Technical Summary

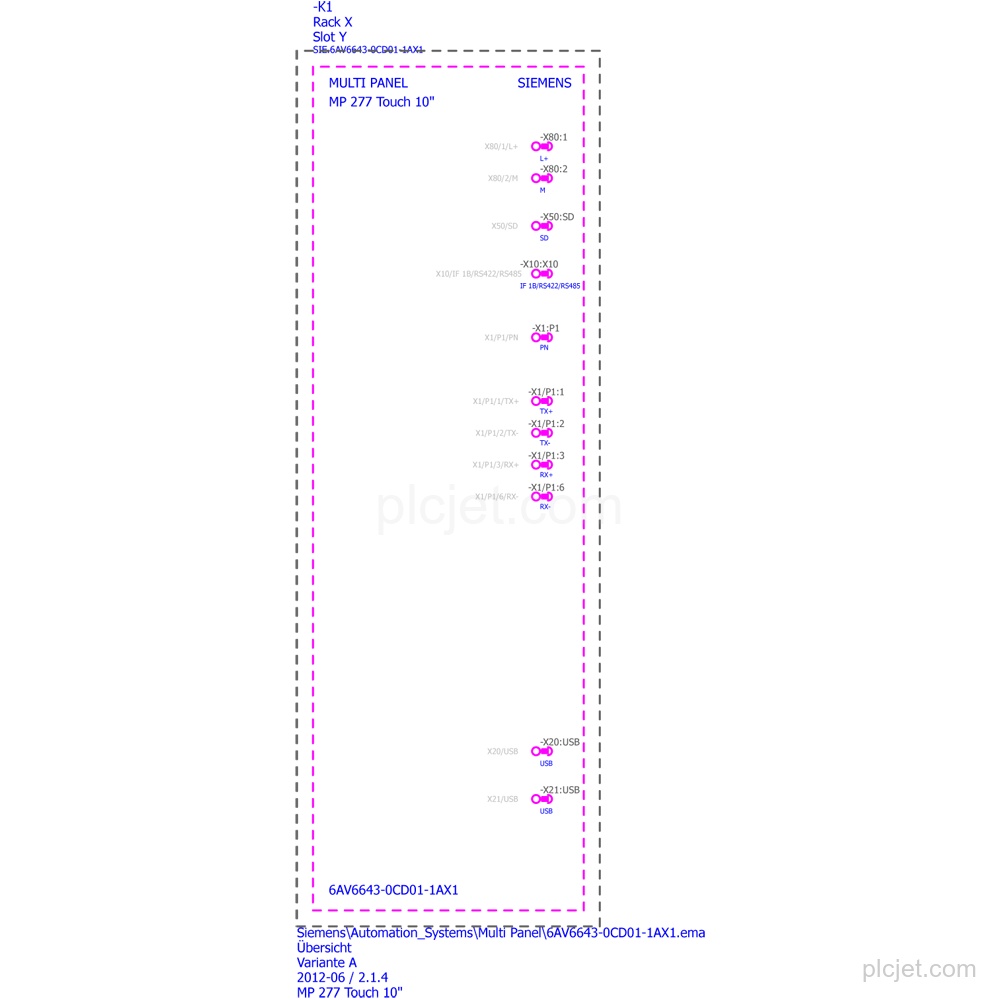

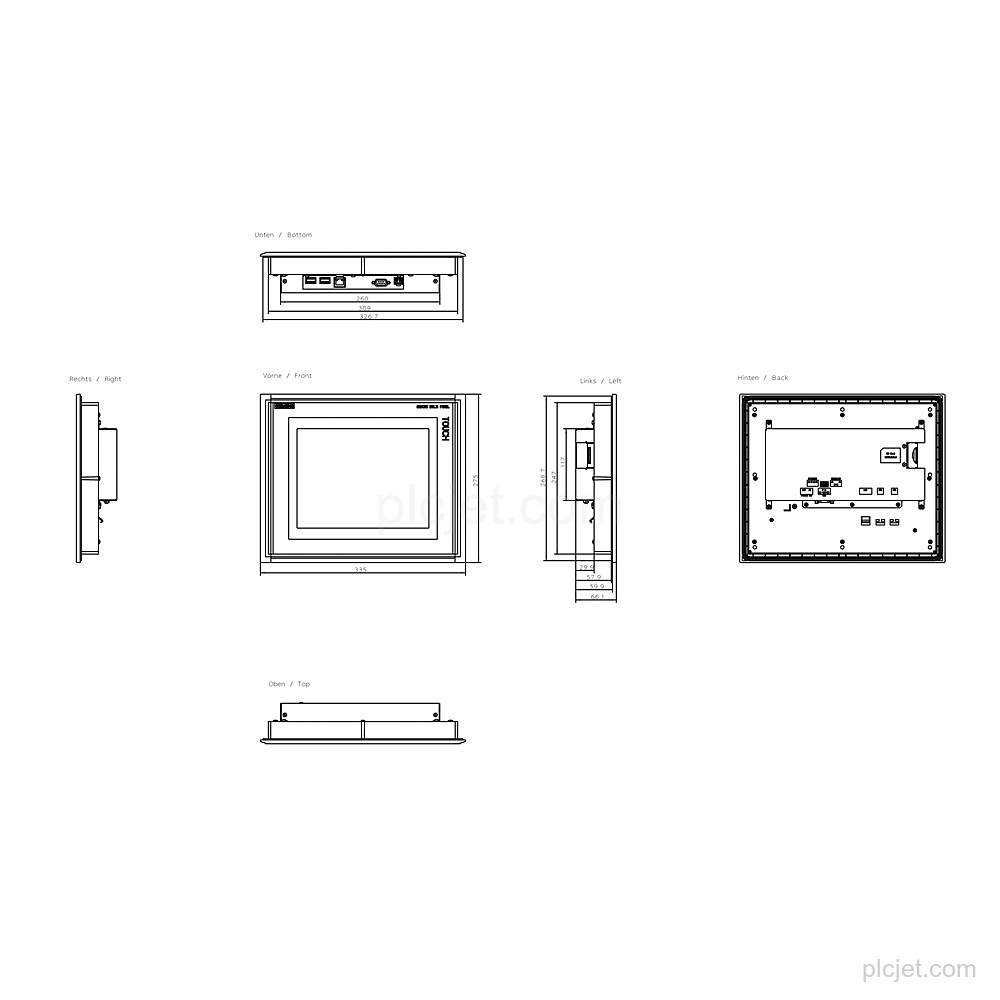

| Product type | MP277 10" touch |
|---|---|
| Display | 10.4 in color TFT, 640 pixel × 480 pixel, 65 536 colors |
| Touch operation | Analog, resistive touch screen |
| User data memory | 6 Mbyte |
| Main memory capacity, max. | 128 Mbyte |
| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45), 2 USB |
| Protocols | PROFINET IO, PROFIBUS, TCP/IP, MODBUS |
| Mounting and protection | Vertical; 35° maximum permissible angle without external ventilation; IP65 front, IP20 rear |
Key Features
Color TFT display with 640 pixel × 480 pixel resolution, 65 536 colors and analog resistive touch operation.
6 Mbyte memory is available for user data, with 128 Mbyte maximum main memory capacity. Configurable with WinCC flexible 2005 Standard SP1.
Interfaces include 1x RS 422, 1x RS 485 and 1x Ethernet (RJ45), plus 2 USB interfaces and 1x Multimedia Card slot up to 128 MB.
Supports PROFINET IO, PROFIBUS, TCP/IP and MODBUS. PROFIsafe and EtherNet/IP are not supported.
Vertical mounting; maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
The new part is blocked for delivery as of 01.01.2015. A spare part can continue to be purchased as required, but its price may deviate from the new part.
Frequently Asked Questions
What exact Siemens line item is this?
It is Siemens 6AV6643-0CD01-1AX1, an MP277 10" touch panel.
What display configuration does it have?
It has a 10.4 in color TFT display with 640 pixel × 480 pixel resolution, 65 536 colors and analog resistive touch operation.
Which interfaces and protocols are supported?
It has 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) and 2 USB interfaces. It supports PROFINET IO, PROFIBUS, TCP/IP and MODBUS.
How is this item mounted and protected?
It is mounted vertically. The maximum permissible angle of inclination without external ventilation is 35°; protection is IP65 at the front and IP20 at the rear.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
